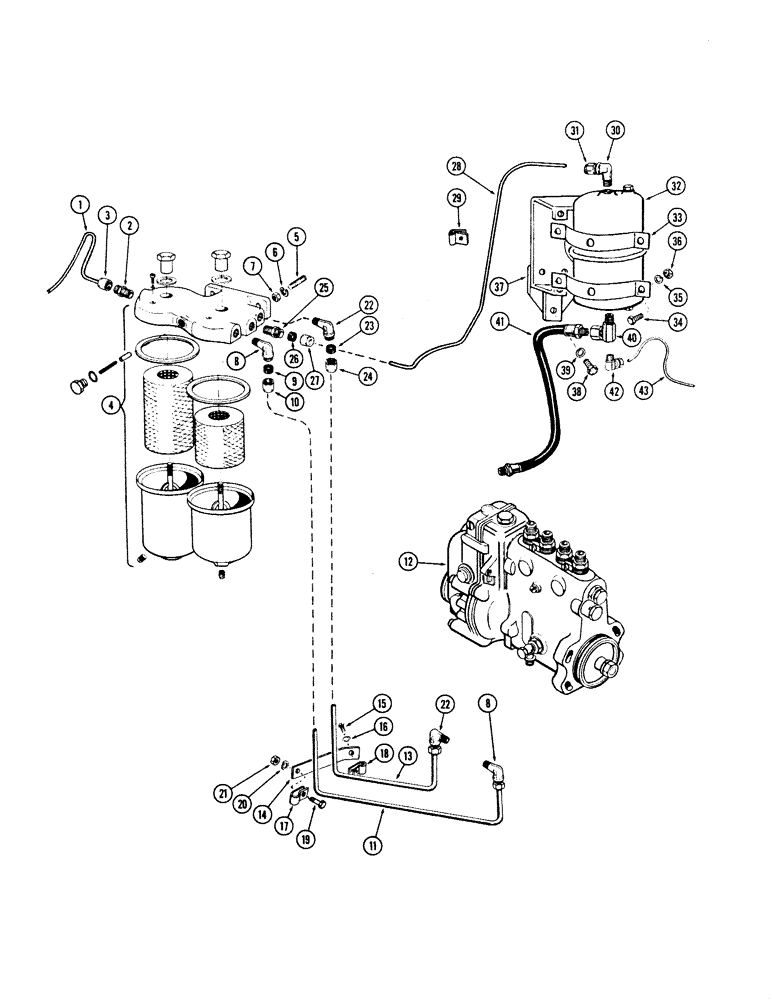

Запчасти Case IH 830-SERIES (058) - FUEL INJECTION FILTER SYSTEM, 267 AND 301 DIESEL ENGINES, 1ST USED TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A22617

TUBE - valve to primary filter

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - tube to filter, 3/8" O.D. x 1/4" P.T. (incl. ref. 3)

1шт.

3

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

3

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

4

A40435

FILTER

ASSEMBLY - primary (Repairs, Figure 60)

1шт.

5

A26554

STUD - filter to block (3/8 x 1-9/16")

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- fuel line, 3/8" O.D. x 1/4" tube (incl. ref. 9 & 10)

1шт.

9

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

11

A20650

TUBE

-, Serial Range: filter-pump

1шт.

12

NSS

NOT SOLD SEPARAT

PUMP ASSY. - injection (Order from Figure 62)

1шт.

13

A20651

TUBE

-, Serial Range: pump-filter

1шт.

14

A20656

BRACKET - tube clip support

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

A20688

CLIP

- tube (3/8" tube)

1шт.

18

A27814

X

CLIP - tube (5/16" tube)

1шт.

19

75-412

SCREW,Rd, 1/4" x 3/4"

- clip, 1/4 x 3/4" N.C. rd. hd.

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

1шт.

22

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- fuel tube, 5/16" O.D. x 1/4" P.T. (incl. ref. 23 & 24)

2шт.

23

222-103

SLEEVE,5/16" Tube

1шт.

24

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

25

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - filter tube, 5/16" O.D. x 1/4" P.T.

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

28

A22253

TUBE

- primary to final filter

1шт.

29

A7922

CLIP

- filter tube

1шт.

30

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- tube to final filter, 5/16" O.D. x 1/4" P.T. (incl. ref. 31)

1шт.

31

222-103

SLEEVE,5/16" Tube

1шт.

31

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

32

A57228

FILTER

- final stage (Replaces A27983)

1шт.

33

A21144

CLAMP

- filter

2шт.

34

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

37

A22183

BRACKET - filter mounting

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

A20539

FITTING

UNION - 90 deg. adapter, Serial Range: hose-filter

1шт.

41

A21070

HOSE,9.53mm ID x 203.2mm L

- Final filter to pump 0.38" ID x 8.00"

1шт.

42

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- press. gauge tube, 1/8" O.D. x 1/8" P.T.

1шт.

43

G46292

TUBE,0.125" OD x 28" L

- fuel pressure gauge in panel

1шт.
