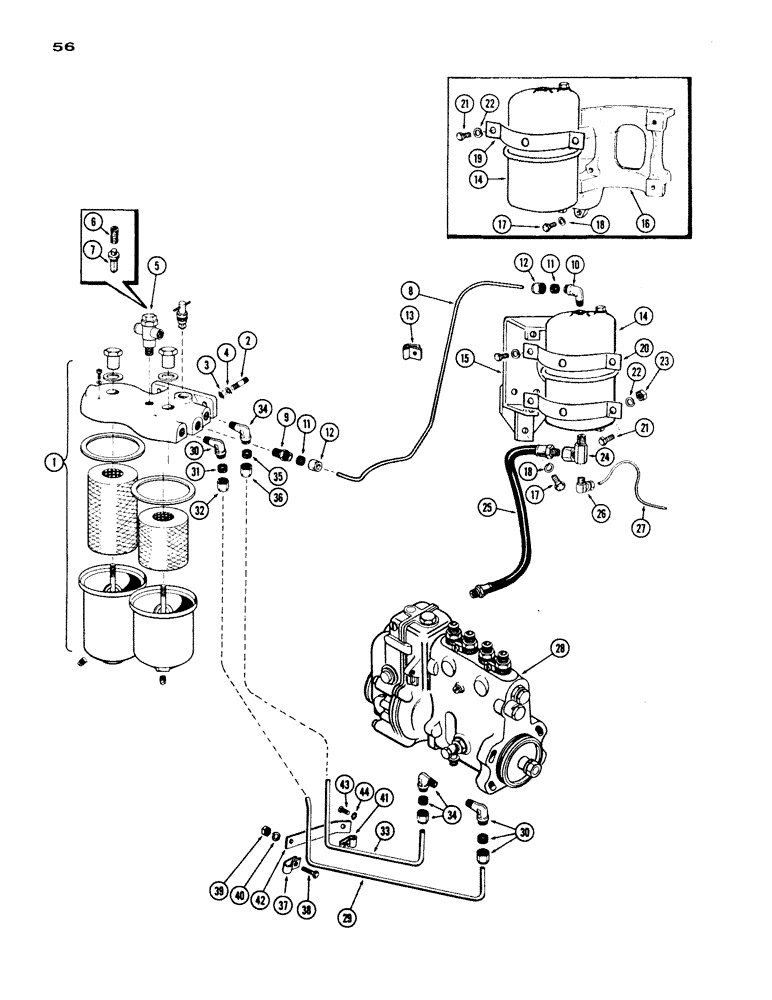

Запчасти Case IH 830-SERIES (056) - FUEL INJECTION FILTER SYSTEM, 267 AND 301 DIESEL ENGINES, USED PRIOR TO TRAC. S/N 8201146 (03) - FUEL SYSTEM

1

A21133

FILTER

ASSY. - primary (Repairs Figure 60)

1шт.

2

A26554

STUD - mounting, primary filter assy.

2шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

A20637

LOCK VALVE

VALVE ASSY. - relief (incl. ref. 6 & 7)

1шт.

6

A41003

SPRING - valve

1шт.

7

A41321

INSULATOR

VALVE

1шт.

8

A22253

TUBE

- primary filter to final filter

1шт.

9

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - 5/16" tube x 1/4" P.T.

1шт.

10

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T. (incl. ref. 11 & 12)

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

13

A7922

CLIP

- tube

1шт.

14

A57228

FILTER

- final stage (Replaces A27983)

1шт.

15

A22183

BRACKET - final filter, Start Serial: 8173401

1шт.

16

A20723

BRACKET - final filter, Serial Range: -8173401

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

A27984

CLAMP - final filter, Serial Range: -8173401

2шт.

20

A21144

CLAMP

- final filter, Start Serial: 8173401

2шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

24

A20539

FITTING

UNION - 90 deg. adapter, fuel hose

1шт.

25

A21070

HOSE,9.53mm ID x 203.2mm L

- Filter to pump 0.38" ID x 8.00", Start Serial: 8173401

1шт.

25

A20538

FUEL HOSE,0.38" ID x 8.50"

Filter to pump 0.38" ID x 8.50", Serial Range: -8173401

1шт.

26

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- fuel pressure tube, 1/8" O.D. x 1/8" P.T.

1шт.

27

G46292

TUBE,0.125" OD x 28" L

- fuel pressure gauge in panel

1шт.

28

NSS

NOT SOLD SEPARAT

INJECTION PUMP - fuel (Order from Figure 62)

1шт.

29

A20651

TUBE

- pump to 2nd stage filter

1шт.

30

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 5/16" tube x 1/4" P.T. (incl. ref. 31 & 32)

2шт.

31

222-103

SLEEVE,5/16" Tube

1шт.

32

222-113

TUBE NUT,9/16"-24

SLEEVE - 5/16" tube

1шт.

33

A20650

TUBE

- 1st stage, Serial Range: filter-pump

1шт.

34

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T. (incl. ref. 35 & 36)

2шт.

35

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

36

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

37

A20688

CLIP

- tube (A20650-5/16" tube)

1шт.

38

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4 x 3/4" N.C. rd. hd.

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

A27814

X

CLIP - tube (A20651-3/8" tube)

1шт.

42

A20656

BRACKET - support, tube clip

1шт.

43

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

44

92-5

LOCK WASHER,5/16"

1шт.
