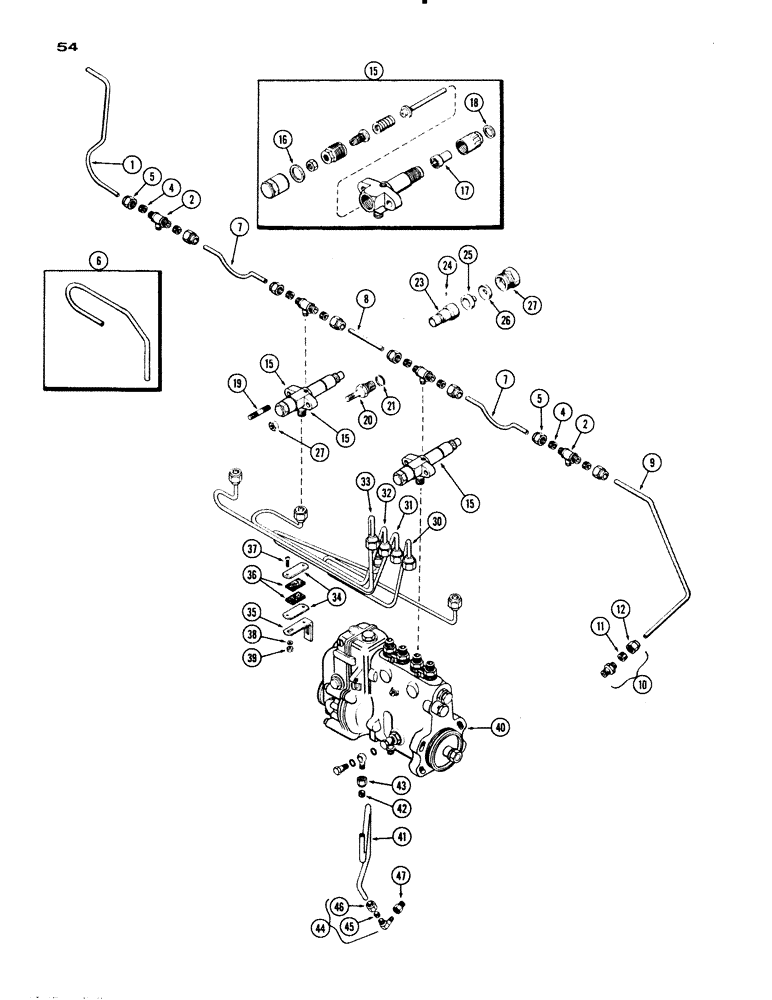

Запчасти Case IH 830-SERIES (054) - FUEL INJECTION SYSTEM, 267 AND 301 DIESEL ENGINE (03) - FUEL SYSTEM

1

A24919

TUBE

- return, leak-off, Start Serial: 8201146

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- leak-off fitting, 1/4" tube x 1/8" P.T. (incl. ref. 4 & 5)

4шт.

4

222-102

SLEEVE,1/4" Tube

2шт.

5

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

6

A20638

TUBE - leak-off to relief valve, Serial Range: -8201146

1шт.

7

A27981

TUBE

- leak-off, outer

1шт.

8

A20162

TUBE

- leak-off, center

2шт.

9

A20647

TUBE - leak-off, #1 injector, Serial Range: -8201146

1шт.

9

A22186

TUBE

- leak-off, #1 injector, Start Serial: 8201146

1шт.

10

A28098

VALVE

ASSY. - check, leak-off (incl. ref. 11 & 12)

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

15

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel (incl. ref. 16 - 18)

4шт.

16

A31062

GASKET

- adjusting cap

1шт.

17

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector (incl. ref. 18)

1шт.

18

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

19

A27929

STUD

- injector to head (3/8 x 2-3/16")

4шт.

20

A10678

STUD

- injector to head (flanged)

4шт.

21

A10679

GASKET

- flanged stud

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

8шт.

23

A22971

BODY

- powrcel, 730 (267) engine (Can use A22978)

4шт.

23

A22978

BODY

- powrcel, 830 (301) engine

4шт.

24

A11810

PIN,3.19mm OD x 6.99mm L

- body locating

4шт.

25

A22975

CAP

- powrcel, 730 (267) engine

4шт.

25

A22979

CAP - powrcel, 830 (301) engine (Can use A22975)

4шт.

26

A11812

CLAMP

- powrcel

4шт.

27

A11813

PLUG

SCREW - retaining, powrcel

4шт.

30

A20501

TUBE

- pump to #1 injector

1шт.

31

A20502

TUBE

- pump to #2 injector

1шт.

32

A20503

TUBE

- pump to #3 injector

1шт.

33

A20504

TUBE

- pump to #4 injector

1шт.

34

A28046

CLAMP

- injection tubes

2шт.

35

A20507

CLAMP - injection tubes (Replaces 1-A28046), Serial Range: -8201146

1шт.

36

A28047

CUSHION

- tube clamp

2шт.

37

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

40

NSS

NOT SOLD SEPARAT

PUMP ASSY. - injection (Order from Figure 62)

1шт.

41

A21786

TUBE - lube oil (from block)

1шт.

42

222-102

SLEEVE,1/4" Tube

Pump fitting 1/4" Tube

1шт.

43

87017024

TUBE NUT,1/2"-24

NUT - pump fitting, 1/4" tube

1шт.

44

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- tube to block, 1/4" tube x 1/8" P.T. (incl. ref. 45 & 46)

1шт.

45

222-102

SLEEVE,1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

47

221-1052

PLUG

BUSHING - reducer, 3/8 x 1/8" P.T.

1шт.
