Запчасти Case IH 830-SERIES (110) - ENGINE GASKET KITS, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE

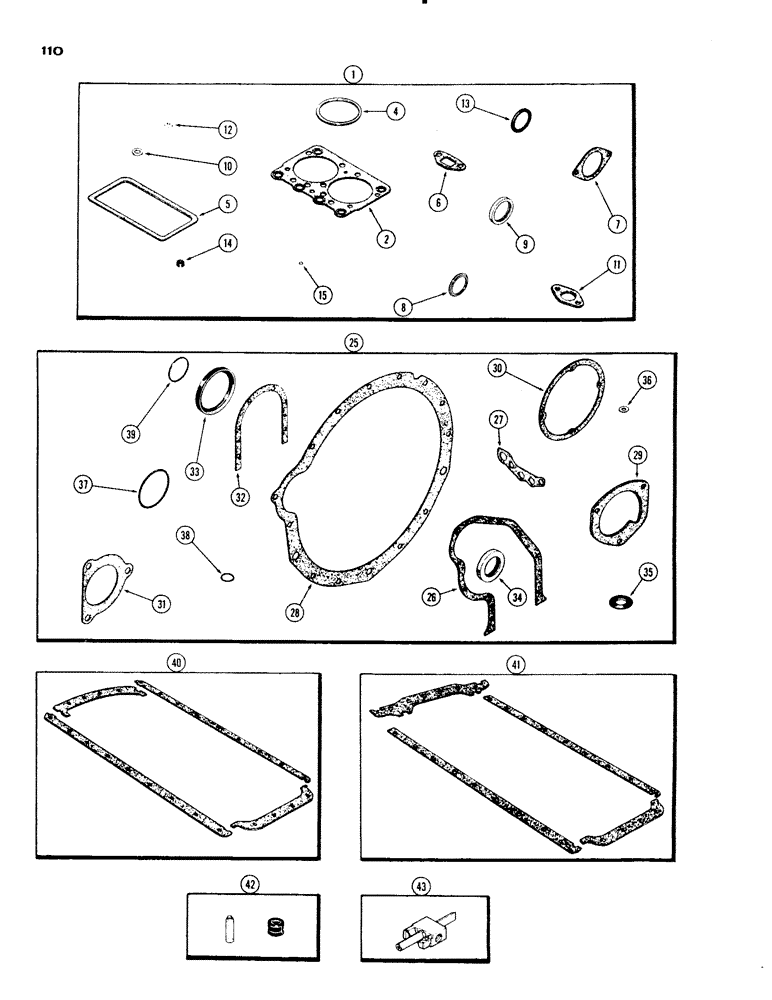

Схема запчастей Case IH 830-SERIES - (110) - ENGINE GASKET KITS, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE
5
14
43
40
6
32
42
27
37
25
7
15
30
28
34
11
26
13
2
35
33
12
8
41
10
1
31
39
36
29
4
38
9

Артикул

Название

Примечание

Количество

1

A41579

KIT

VALVE GRIND KIT (incl. ref. 2 - 15)

1шт.

2

A57593

GASKET

- cylinder head

2шт.

4

A34686

RING

- fire, cyl. sleeve (Std.)

4шт.

5

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

6

A27905

GASKET

- water manifold

4шт.

7

A28113

GASKET

- thermostat housing

1шт.

8

A11889

GASKET

- exhaust manifold

4шт.

9

A29943

GASKET

- intake manifold

2шт.

10

A23685

GASKET

- breather tube

2шт.

11

A26434

GASKET

- carburetor

1шт.

12

A23684

GASKET

GASKET - cover stud

4шт.

13

A30954

GASKET

SEAL - thermostat

1шт.

14

A10726

SEAL

SHIELD - oil, intake valve stem (See ref. 42 & 43)

4шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft

2шт.

25

A40349

KIT

CYLINDER BLOCK KIT (incl. ref. 26 - 39)

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A21084

GASKET

- oil filter base

1шт.

28

A11649

GASKET

- rear, cyl. block (w/Case-O-Matic)

1шт.

29

A27899

GASKET

- water pump

1шт.

30

A27867

GASKET

- timing gear cover

1шт.

31

A27933

GASKET

- starting motor

1шт.

32

A32830

GASKET

- rear oil seal retainer

1шт.

33

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

Not in kit.

1шт.

34

A23433

OIL SEAL

- oil, crankshaft front

1шт.

Not in kit.

1шт.

35

A7292

SEAL

- oil, governor shaft

1шт.

36

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

39

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (w/std. clutch)

1шт.

40

A7616

GASKET KIT

GASKET SET - oil pan (w/std. clutch)

1шт.

41

A20171

GASKET

SET - oil pan (w/Case-O-Matic)

1шт.

42

M20614

SEAL KIT

SEAL KIT - intake valve (Set of 2)

2шт.

43

M20617

TOOL

- installation, valve seal

1шт.

Выбрано товаров: 34
