Запчасти Case IH 830-SERIES (104) - OIL FILTER, OIL PAN, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE

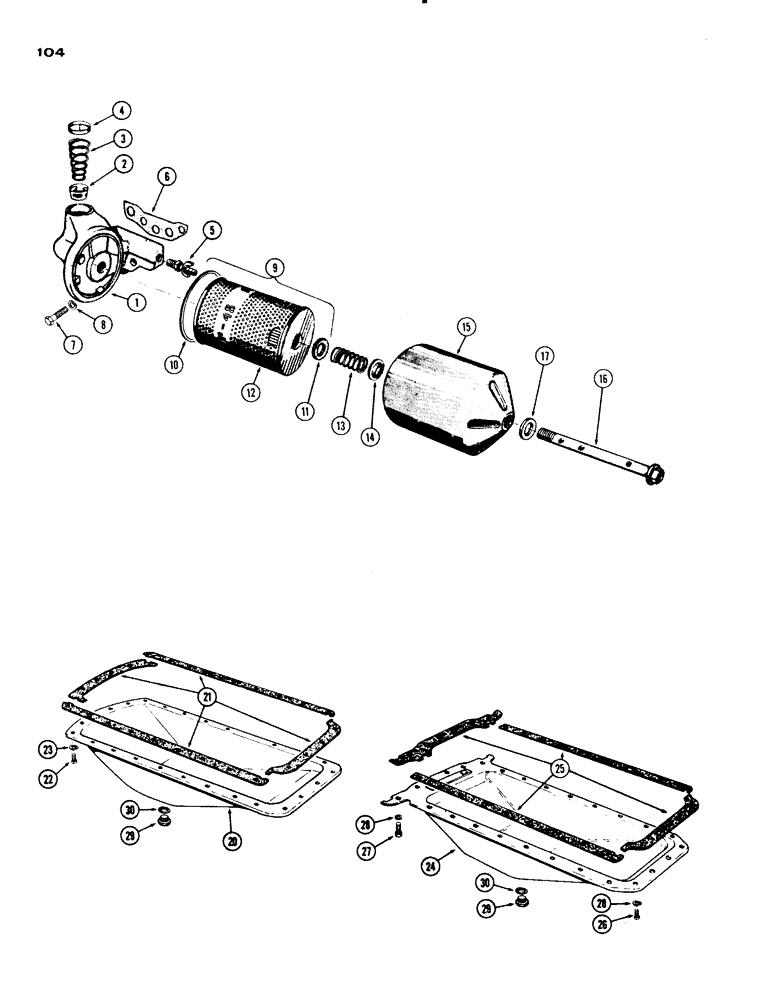

Схема запчастей Case IH 830-SERIES - (104) - OIL FILTER, OIL PAN, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE
24
22
3
30
16
14
21
15
11
29
1
30
6
4
17
29
13
26
7
25
2
28
10
23
9
8
20
28
5
12
27

Артикул

Название

Примечание

Количество

1

A23469

BASE

ASSY. - filter (incl. ref. 2 - 5)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

5

A23656

COCK, DRAIN

VALVE - drain

1шт.

6

A21084

GASKET

-, Serial Range: base-block

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

9

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter (incl. ref. 10 - 12)

1шт.

10

A21473

GASKET

-, Serial Range: shell-base

1шт.

11

A21474

GASKET

- inner, retainer bolt

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - (Order A21475)

1шт.

13

A21478

SPRING

- retainer, element

1шт.

14

A21477

RETAINER

- spring

1шт.

15

A21471

SHELL

- filter element

1шт.

16

A21476

BOLT

- retainer, Serial Range: filter-base

1шт.

17

A21479

GASKET

-, Serial Range: bolt-shell

1шт.

20

A23000

CASE

PAN - oil (w/std. clutch drive)

1шт.

21

A7616

GASKET KIT

GASKET SET - oil pan (w/std. clutch drive)

1шт.

22

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

23

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

24

A22999

PAN - oil (w/Case-O-Matic drive)

1шт.

25

A20171

GASKET

SET - oil pan (w/Case-O-Matic)

1шт.

26

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

20шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Rear, oil pan Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

28

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

29

A14280

PLUG

- drain, oil pan

1шт.

30

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

Выбрано товаров: 29
