Запчасти Case IH 830-SERIES (090) - CYLINDER BLOCK ASSEMBLY, MODEL 830, 284 SPARK IGNITION ENGINE, CASTING NO. A21004 (02) - ENGINE

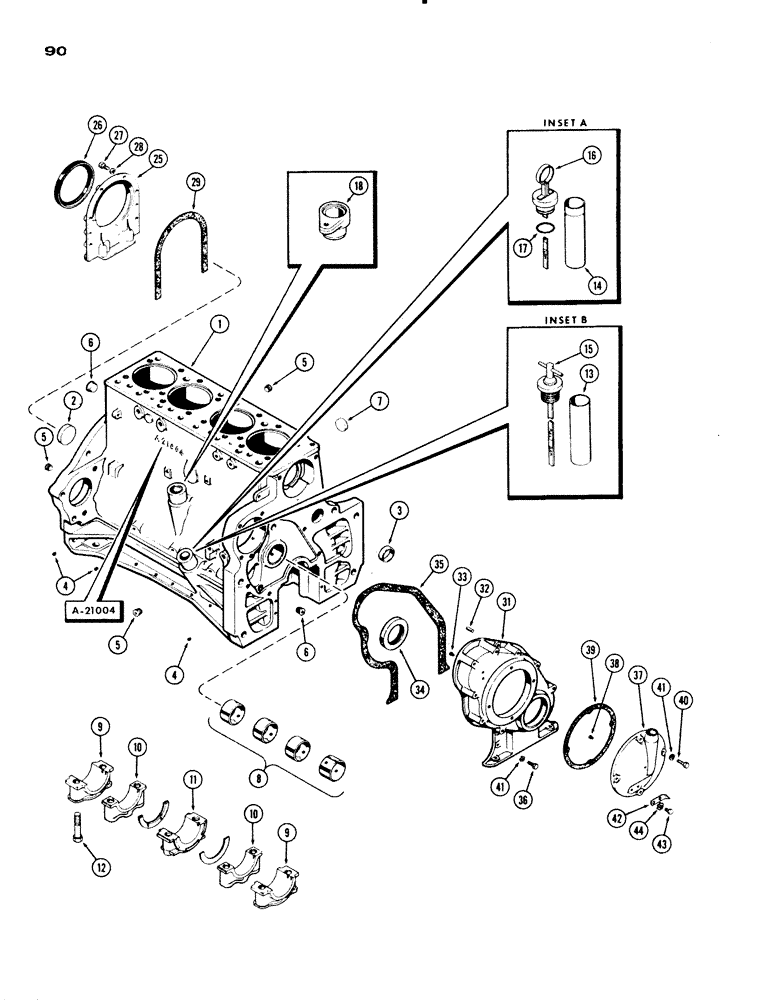

Схема запчастей Case IH 830-SERIES - (090) - CYLINDER BLOCK ASSEMBLY, MODEL 830, 284 SPARK IGNITION ENGINE, CASTING NO. A21004 (02) - ENGINE
5
14
40
27
25
10
17
13
32
10
41
7
16
36
4
44
11
6
42
28
29
12
1
39
33
2
18
8
4
15
6
38
37
31
3
9
26
34
5
35
5
9
43

Артикул

Название

Примечание

Количество

A22171

BLOCK ASSY. - short, 1960 & 1961 production (incl. ref. 1 - 14)

1шт.

1

A20796

BLOCK

ASSY. - stripped (Casting No. A21004) Can use A23510 by also ordering A23501 camshaft (incl. ref. 2 - 14)

1шт.

2

A22394

PLUG

- rear camshaft hole (2-1/2" cup type)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- front, water gallery (1-3/4" cup type)

1шт.

4

221-1041

PLUG

- L.H. side oil gallery (1/8" P.T. slotted)

3шт.

5

221-1843

PLUG

- R.H. & rear oil gallery (3/8" P.T. socket hd.)

3шт.

5

221-1843

PLUG

- L.H. side heater hole (3/8" P.T. socket hd.)

1шт.

6

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - rear, water gallery (1" P.T. socket hd.)

1шт.

7

41-1622

PLUG,Cup, 1 3/8", Stainless

- L.H. side (1-3/8" cup type)

1шт.

8

A23577

KIT

BUSHING SET - camshaft

1шт.

9

A26281

CAP

- (6301A) wide crankshaft bearing

2шт.

10

A26282

X

CAP - (A6302A) narrow crankshaft bearing

2шт.

11

A26283

CAP - (6303A) thrust bearing

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

SCREW - bearing cap

10шт.

13

A20714

X

SOCKET - dipstick (Order A34540. inset A)

1шт.

14

A34540

TUBE

SOCKET - dipstick (w/bead. See inset A)

1шт.

15

A20739

GAUGE

- oil level (Must be used w/ref. 13 inset B)

1шт.

16

A34541

DIPSTICK

GAUGE - oil level (Must be used w/ref. 14 inset A) (incl. ref. 17)

1шт.

17

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

18

A7621

INSET - distributor support

1шт.

25

A57457

RETAINER

ASSY. - rear oil seal (incl. ref. 26)

1шт.

26

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

29

A32830

GASKET

- retainer, rear oil seal

1шт.

31

A23334

COVER ASSY. - timing gear (incl. ref. 32 - 34)

1шт.

32

A27840

PIN

- locating (5/16 x 3/4")

2шт.

33

A27869

BUTTON - thrust

1шт.

34

A23433

OIL SEAL

- oil, crankshaft front

1шт.

35

A33018

GASKET

-, Serial Range: cover-block

1шт.

36

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2" N.C. hex

8шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

37

A20833

CAP ASSY. - timing gear cover (incl. ref. 38)

1шт.

38

A27869

BUTTON - thrust

1шт.

39

A27867

GASKET

-, Serial Range: cap-cover

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

14шт.

42

A28218

POINTER - timing

1шт.

43

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

44

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

2шт.

Выбрано товаров: 41
