Запчасти Case IH 830-SERIES (082) - CYLINDER HEAD AND VALVES, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE

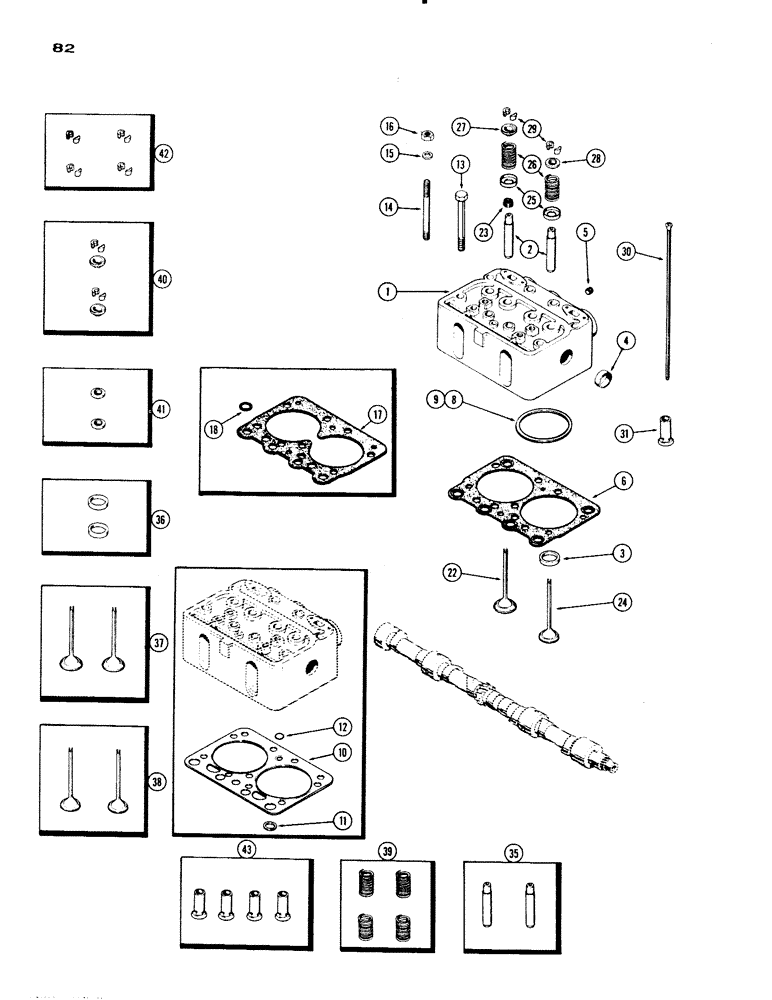

Схема запчастей Case IH 830-SERIES - (082) - CYLINDER HEAD AND VALVES, MODEL 830, 284 SPARK IGNITION ENGINE (02) - ENGINE
3
40
31
39
42
11
38
22
2
4
26
9
16
18
28
23
25
30
12
17
29
14
36
35
1
37
27
8
10
15
43
6
41
24
5
13

Артикул

Название

Примечание

Количество

1

A20809

CYLINDER HEAD

HEAD ASSY. - cylinder (gasoline) Casting No. A20805 (incl. ref. 2 - 5)

2шт.

1

A21243

HEAD

ASSY. - cylinder (L.P.G.) Casting No. A21241 (incl. ref. 2 - 5)

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order ref. 35)

4шт.

3

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 36)

2шт.

4

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-41/64" cup type)

2шт.

5

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

2шт.

6

A57593

GASKET

- head

1шт.

8

A34686

RING

- fire, cyl. sleeve (Std.) See ref. 9

4шт.

9

A34688

RING

- fire, cyl. sleeve (oversize w/blue stripe)

4шт.

10

A23117

GASKET

- cyl. head (Order ref. 6 and ref. 8 or 9)

2шт.

11

A7669

RING

- water passage (only w/A23117)

4шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (only w/A23117)

2шт.

13

A23355

BOLT

- head to block (9/16 x 6" N.C. hex) See ref. 14

18шт.

14

A21058

BOLT

- head to block (early production)

18шт.

15

A27870

WASHER

- head stud (19/32 x 15/16" x #11 ga.)

18шт.

16

25-119

NUT,9/16"-18, G5

- stud, 9/16" N.F. hex

18шт.

17

A41385

X

GASKET KIT - cyl. head (Order ref. 6) (incl. ref. 18)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - head gasket (Order ref. 6)

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 37)

4шт.

23

A10726

SEAL

SHIELD - oil, intake valve

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 38)

4шт.

25

A27866

SEAT

- valve spring

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 39)

8шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 40)

4шт.

28

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 41)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - spring retainer (Order ref. 42)

16шт.

30

A21060

ROD

- push

8шт.

31

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 43)

8шт.

35

A21673

GUIDE

KIT - valve (Set of 2)

4шт.

36

A33454

INSERT

KIT - exhaust valve (Set of 2) Replaces A22173

2шт.

37

A33457

VALVE

KIT - intake (Set of 2) Replaces A21714

2шт.

38

A33458

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2) Replaces A21715

2шт.

39

A21694

SPRING

KIT - valve (Set of 4)

2шт.

40

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers and 4 locks)

2шт.

41

A24993

CAP

ROTO CAP KIT - exhaust valve (Set of 2)

2шт.

42

A40352

LOCK

KIT - spring retainer (Set of 8)

2шт.

43

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

Выбрано товаров: 37
