Запчасти Case IH 830-SERIES (078) - CYLINDER HEAD COVER AND ROCKER ARMS, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE

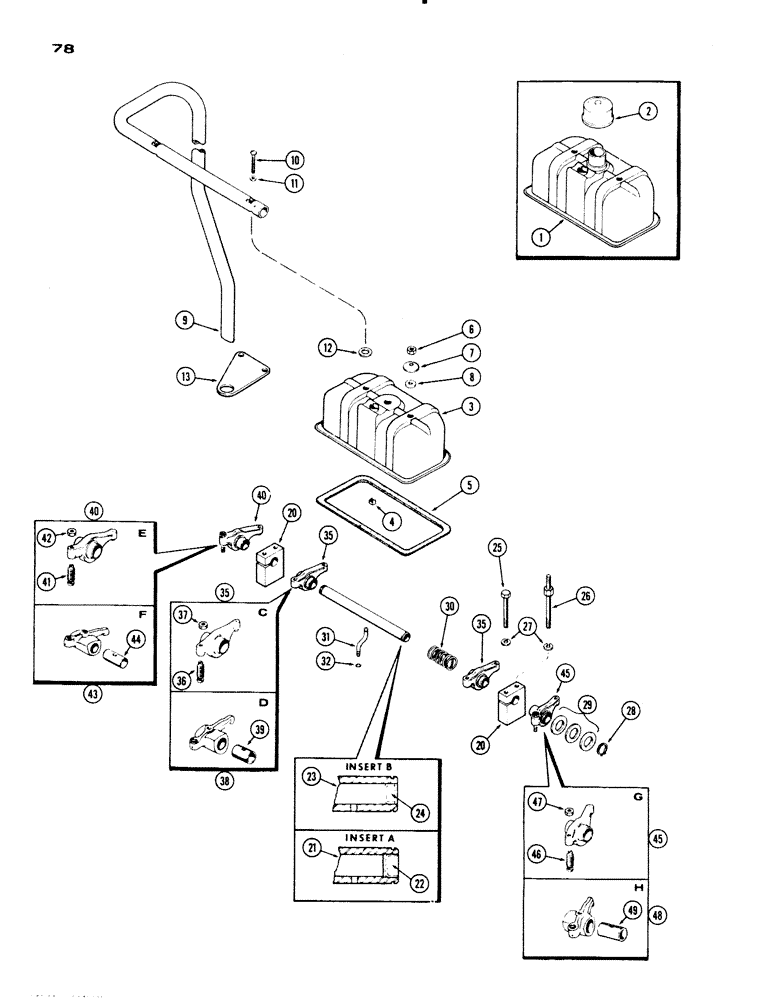

Схема запчастей Case IH 830-SERIES - (078) - CYLINDER HEAD COVER AND ROCKER ARMS, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE
23
32
47
26
46
31
3
48
35
37
36
10
2
21
24
35
42
1
35
5
20
7
11
41
6
49
8
20
30
27
9
4
13
25
44
43
39
45
40
29
45
28
22
12
40
38

Артикул

Название

Примечание

Количество

1

A20345

COVER - cyl. head (Prior to SN 8201146 and on all Grove models)

2шт.

2

A27973

CAP

BREATHER - oil (Prior to SN 8201146 and on all Grove models)

2шт.

3

A23681

COVER ASSY

. - cyl. head (incl. ref. 4), Start Serial: 8201146

2шт.

4

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, 1/4" N.C.

1шт.

5

A27972

CYLINDER HEAD GASKET

-, Serial Range: cover-head

2шт.

6

25-117

NUT,7/16"-20, G5

- cover stud, 7/16 N.F. hex

4шт.

7

A23684

GASKET

GASKET - cover nut

4шт.

8

A23683

WASHER

- cover nut

4шт.

9

A17486

TUBE - breather, Start Serial: 8201146

1шт.

10

75-432

SCREW

- tube, 1/4 x 2" N.C. rd. hd.

2шт.

11

A34133

GASKET

- fiber (9/32 x 1/2 x 3/64")

2шт.

12

A23685

GASKET

- rubber (11/16 x 1-1/6 x 1/16")

2шт.

13

A23686

BRACKET

- lower (bolts to oil pan)

1шт.

20

A27881

BRACKET

- rocker shaft

4шт.

21

A21100

SHAFT

- rocker arm (reamed, See inset A) (incl. ref. 22), Start Serial: 2107858

2шт.

22

A26667

PLUG - shaft (9/16" dia. x 1/4")

2шт.

23

A23671

X

SHAFT - rocker arm (not reamed. See inset B) Order ref. 21 (incl. ref. 24), Serial Range: -2107858

2шт.

24

A22318

PLUG - shaft (17/32" dia. x 1/4")

2шт.

25

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

26

A28124

STUD - bracket & cover

4шт.

27

92-7

LOCK WASHER,7/16"

8шт.

28

B18206

SNAP RING,#87, Ext

RING, snap, , rocker shaft #87, Ext

4шт.

29

A27878

WASHER

- spacer, rocker shaft (29/32 x 1-5/16 x 9/32")

12шт.

30

A27877

SPRING

- rocker shaft

2шт.

31

A27879

TUBE

- oil rocker shaft

2шт.

32

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

2шт.

35

A22322

ROCKER

ARM ASSY. - rocker, intake valve (Stamped type. See inset C) (incl. ref. 36 & 37)

4шт.

36

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

37

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

38

A28659

X

ARM ASSY. - rocker, intake valve (Forged type. See inset D) Order ref. 36 & 37 separate (incl. ref. 39)

4шт.

39

A27876

BUSHING

- rocker arm

1шт.

40

A22326

ROCKER

ARM ASSY. - rocker, #2 & #4 exhaust valve (Stamped type. See inset E) (incl. ref. 41 & 42)

2шт.

41

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

42

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

43

A28661

X

ARM ASSY. - rocker, #2 & #4 exhaust valve (Forged type. See inset F) Order ref. 41 & 42 separate (incl. ref. 44)

2шт.

44

A27876

BUSHING

- rocker arm

1шт.

45

A22324

ROCKER

ARM ASSY. - rocker, #1 & #3 exhaust valve (Stamped type. See inset G) (incl. ref. 46 & 47)

2шт.

46

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

47

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 5/16" N.F. hex

1шт.

48

A28660

ARM

ASSY. - rocker, #1 & #3 exhaust valve (Forged type. See inset H) Order ref. 46 & 47 separate (incl. ref. 49)

2шт.

49

A27876

BUSHING

- rocker arm

1шт.

Выбрано товаров: 41
