Запчасти Case IH 830-SERIES (076) - AIR CLEANER, MANIFOLD, MUFFLER, 251 SPARK IGNITION, GROVE (02) - ENGINE

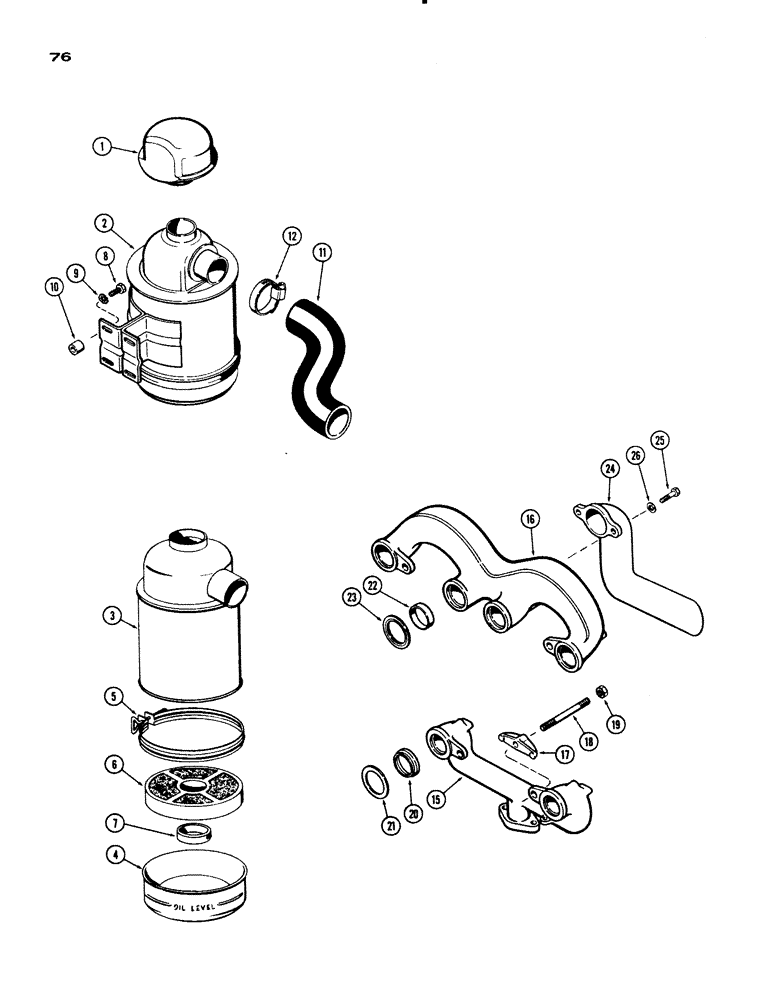

Схема запчастей Case IH 830-SERIES - (076) - AIR CLEANER, MANIFOLD, MUFFLER, 251 SPARK IGNITION, GROVE (02) - ENGINE
2
25
3
6
18
19
7
21
15
8
9
11
17
10
23
22
1
24
20
16
12
4
5
26

Артикул

Название

Примечание

Количество

1

A21430

CAP

PRE-SCREENER - air cleaner

1шт.

2

A11826

AIR CLEANER - complete (incl. ref. 3 - 7)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY (Order A11826)

1шт.

4

A8296

CUP - oil

1шт.

5

A8297

CLAMP

- oil cup

1шт.

6

A8295

SCREEN

1шт.

7

A8298

CLAMP - screen

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

B18083

BUSHING

SPACER - air cleaner mounting (3/8" I.D. x 3/4" lg.)

4шт.

11

A21429

INTAKE AIR HOSE,2.25" x 7.94", SAE 10R4 Class SC 715

- Air cleaner to carburetor 2.25" x 7.94", SAE 10R4 Class SC 715

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

15

A20900

MANIFOLD - intake

1шт.

16

A21245

MANIFOLD - exhaust

1шт.

17

A24368

CLAMP

-, Serial Range: manifold-head

4шт.

18

A27911

STUD

- manifold clamp

4шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

20

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

21

A29943

GASKET

- intake manifold

2шт.

22

A11837

FERRULE

- exhaust manifold

4шт.

23

A11889

GASKET

- exhaust manifold

4шт.

24

A10222

ELBOW - exhaust

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

Выбрано товаров: 24
