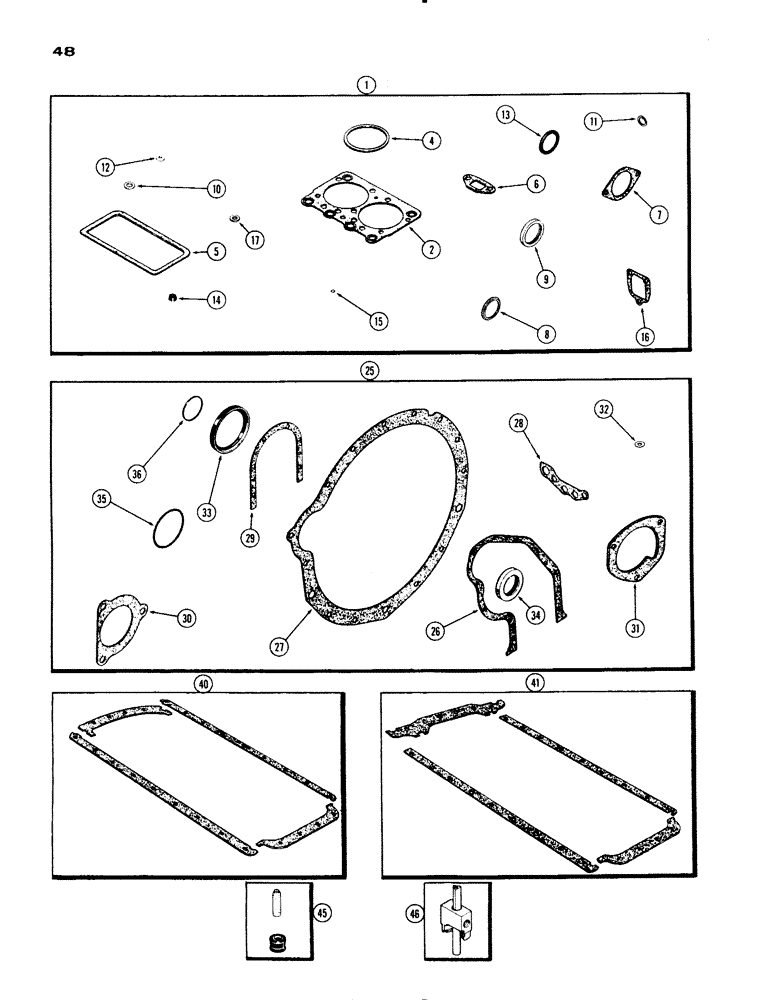

Запчасти Case IH 830-SERIES (048) - ENGINE GASKET KITS, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

1

A41576

GASKET

VALVE GRIND KIT (Replaces A21856, A40338 & 40927) (incl. ref. 2 - 17)

1шт.

2

A57593

GASKET

- cylinder head

2шт.

4

A34686

RING

- fire, cylinder (Std.)

4шт.

5

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

6

A27905

GASKET

- water, Serial Range: manifold-head

4шт.

7

A28113

GASKET

- thermostat housing

1шт.

8

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

9

A21054

MANIFOLD GASKET

- intake manifold

2шт.

10

A23685

GASKET

- breather tube, Start Serial: 8201146

2шт.

11

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

4шт.

12

A23684

GASKET

GASKET - cover studs

4шт.

13

A30954

GASKET

SEAL - thermostat

1шт.

14

A10726

SEAL

SHIELD - intake valve stem

4шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

16

A22939

GASKET

- decompressor lever (early prod. only)

2шт.

17

A34133

GASKET

- breather tube, Start Serial: 8201146

2шт.

25

A40348

KIT

CYLINDER BLOCK KIT - (incl. ref. 26 - 36)

1шт.

For complete engine overhaul ref. 1, 20 and 40 or 41.

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A11649

GASKET

- cyl. block (w/Case-O-Matic)

1шт.

28

A21084

GASKET

- oil filter base

1шт.

29

A32830

GASKET

- rear oil seal retainer

1шт.

30

A27933

GASKET

- starting motor

1шт.

31

M1127885

STEM

- water pump

1шт.

32

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

32

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

33

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

34

A57342

SEAL

- oil, crankshaft front (Replaces A23433)

1шт.

35

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing

1шт.

36

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (w/std. clutch only)

1шт.

40

A7616

GASKET KIT

GASKET SET - oil pan (w/std. clutch)

1шт.

41

A20171

GASKET

SET - oil pan (w/Case-O-Matic)

1шт.

45

M20614

SEAL KIT

SEAL KIT - intake valve (Set of 2)

2шт.

46

M20617

TOOL

- seal installation

1шт.
