Запчасти Case IH 830-SERIES (046) - ENGINE GASKET KITS, MODEL 730, 267 DIESEL ENGINE (02) - ENGINE

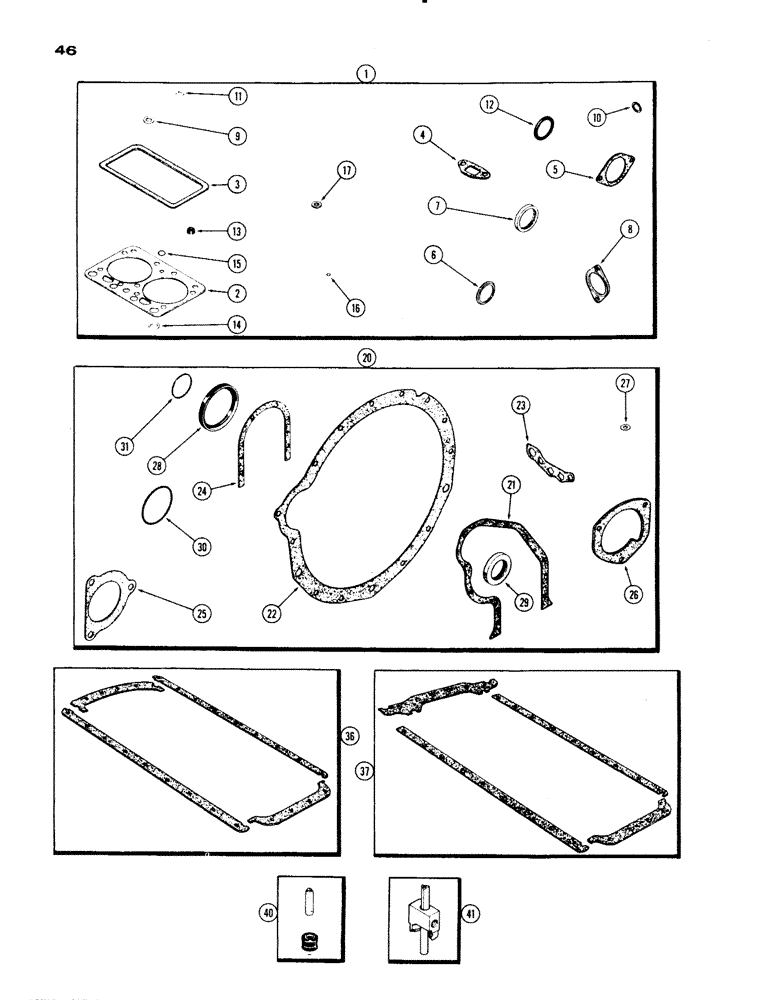

Схема запчастей Case IH 830-SERIES - (046) - ENGINE GASKET KITS, MODEL 730, 267 DIESEL ENGINE (02) - ENGINE
11
3
22
40
25
13
4
27
23
15
20
14
31
12
28
1
30
10
16
29
24
37
9
41
8
7
17
5
26
2
36
21
6

Артикул

Название

Примечание

Количество

1

A40346

KIT

VALVE GRIND KIT - (Replaces A22299) (incl. ref. 2 - 17)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A27972

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water, Serial Range: manifold-head

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A11889

GASKET

- exhaust manifold

1шт.

7

A11888

MANIFOLD GASKET

- intake manifold

1шт.

8

A21055

MANIFOLD GASKET

- intake elbow (730 Grove only)

1шт.

9

A23685

GASKET

- breather tube (Not used on Grove models), Serial Range: -8201146

2шт.

10

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

4шт.

11

A23684

GASKET

GASKET - cover stud

4шт.

12

A30954

GASKET

SEAL - thermostat

1шт.

13

A10726

SEAL

SHIELD - intake valve stem

4шт.

14

A7669

RING

- cyl. head water passage

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

16

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

17

A34133

GASKET

- breather tube (Not used on Grove models), Serial Range: -8201146

2шт.

20

A40348

KIT

CYLINDER BLOCK KIT - (incl. ref. 21 - 31)

1шт.

For complete engine overhaul order ref. 1, 20 and 36 or 37.

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A11649

GASKET

- cyl. block (w/Case-O-Matic)

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A32830

GASKET

- crankshaft rear oil seal

1шт.

25

A27933

GASKET

- starting motor

1шт.

26

A27899

GASKET

- water pump

1шт.

27

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

27

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

28

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

29

A57342

SEAL

- oil, crankshaft front (Replaces A23433)

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - injection pump housing

1шт.

31

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (w/std. clutch)

1шт.

36

A7616

GASKET KIT

GASKET SET - oil pan (w/std. clutch)

1шт.

37

A20171

GASKET

SET - oil pan (w/Case-O-Matic)

1шт.

40

M20614

SEAL KIT

SEAL KIT - intake valve (Set of 2)

2шт.

41

M20617

TOOL

- seal installation

1шт.

Выбрано товаров: 35
