Запчасти Case IH 830-SERIES (044) - BALANCER AND OIL PUMP, 267 AND 301 DIESEL ENGINES, 1ST USED ON 3-28-61 (02) - ENGINE

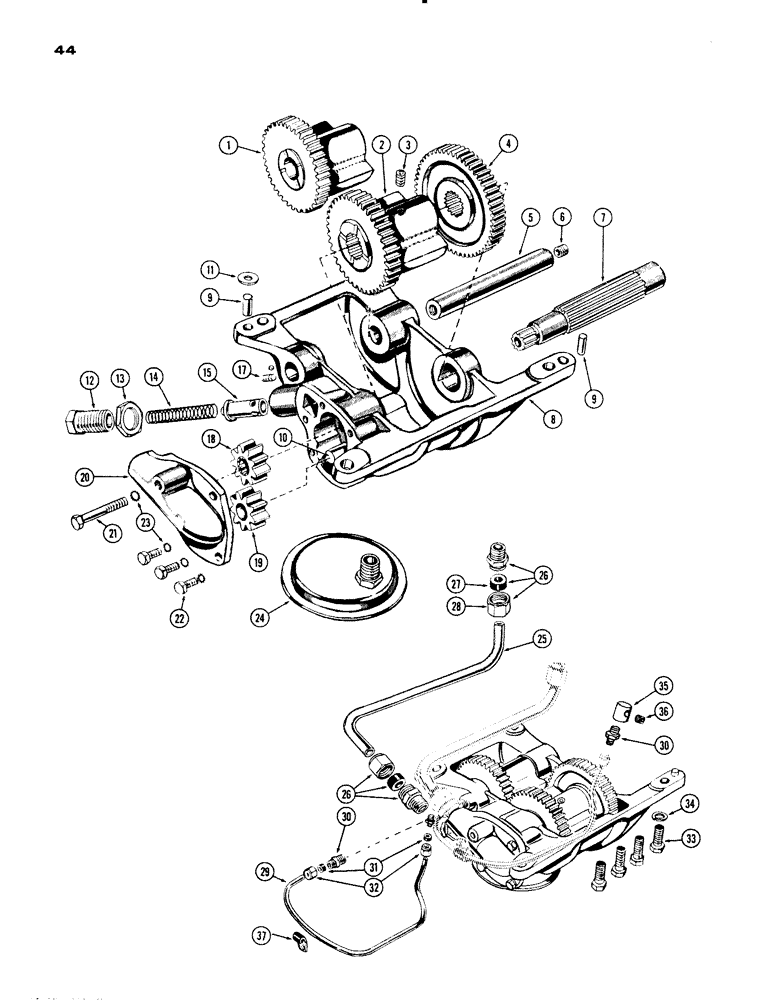

Схема запчастей Case IH 830-SERIES - (044) - BALANCER AND OIL PUMP, 267 AND 301 DIESEL ENGINES, 1ST USED ON 3-28-61 (02) - ENGINE
18
32
36
6
33
34
13
25
30
11
15
14
26
5
27
10
20
31
22
3
26
24
29
23
35
9
4
37
28
8
2
1
30
7
9
21
17
19
12

Артикул

Название

Примечание

Количество

A22540

BALANCER

& OIL PUMP ASSY. - complete (incl. ref. 1 - 24)

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT - (includes bushings)

1шт.

2

A22561

COUNTERWEIGHT - (splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. socket hd. cup pt.

1шт.

4

A22562

X

GEAR - drive, counterweight

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

7

A22558

SHAFT

ASSY. - drive, counterweight

1шт.

8

A22541

HOUSING ASSY. - balancer (incl. ref. 9 & 10)

1шт.

9

A8134

PIN

- dowel

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

A22670

SHIM,.005" Thk

Hsg. to block .005" Thk

1шт.

11

A22671

SHIM,.010" Thk

Hsg to block .010" Thk

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj. oil pump relief

1шт.

13

A27858

NUT

- adjusting screw

1шт.

14

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

15

A22566

PLUNGER

- relief, oil pump

1шт.

17

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" hex, socket cone pt.

1шт.

18

A22564

GEAR

- drive, oil pump (splined)

1шт.

19

A22555

GEAR

- oil pump (w/bushing)

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

24

A22590

FILTER SCREEN

SCREEN ASSY. - inlet, oil pump

1шт.

25

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

26

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - filter tube, 5/8" O.D. x 1/2" P.T. (incl. ref. 27 & 28)

2шт.

27

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

28

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

29

A22596

TUBE

-, Serial Range: block-balancer

1шт.

30

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - oil tube, 1/4 O.D. x 1/4" P.T. (incl. ref. 31 & 32)

2шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

A22592

PLUG

- oil gallery

1шт.

36

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, plug retainer

1шт.

37

A20541

CLIP

- oil tube

1шт.

Выбрано товаров: 38
