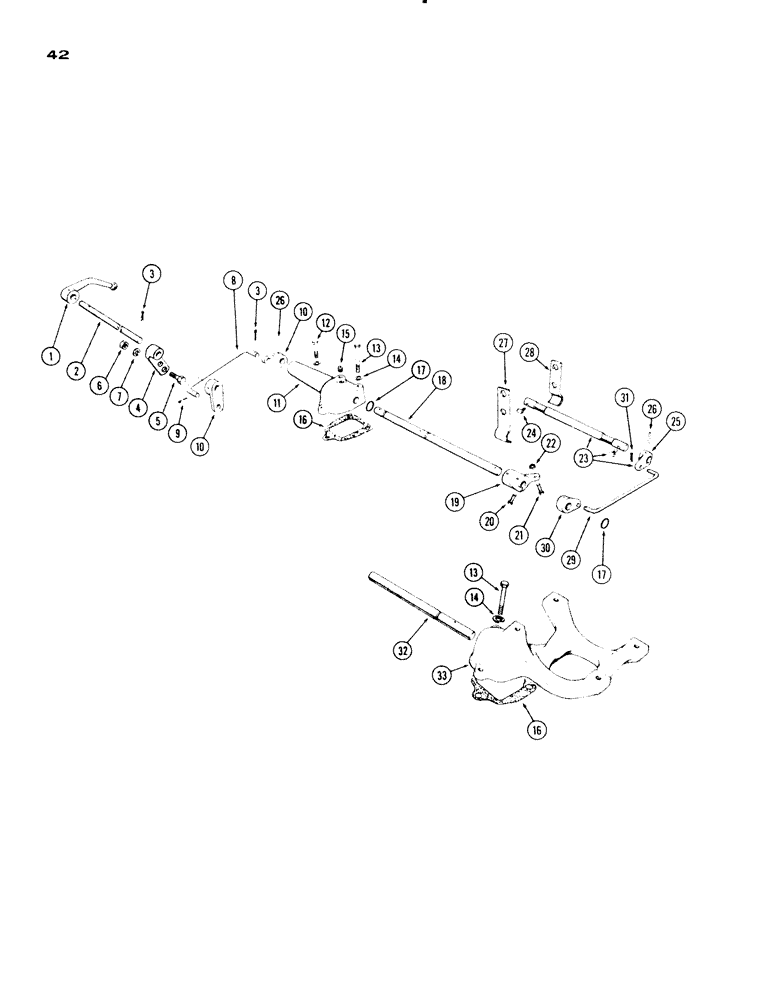

Запчасти Case IH 830-SERIES (042) - DECOMPRESSOR, 267 AND 301 DIESEL ENGINES (02) - ENGINE

1

A7542

LEVER - hand, decompressor control

1шт.

2

A22616

SHAFT - hand lever (31-1/8" long), Start Serial: 8173401

1шт.

2

A7540

SHAFT - hand lever (30-3/8" long), Serial Range: -8173401

1шт.

3

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

A7337

BRACKET - rod, hand lever

1шт.

5

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

6

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

A11823

LINK - control rod

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

7шт.

10

A7541

LEVER - control shaft

2шт.

11

A26330

HOUSING - rear, control lever

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex hd.

1шт.

14

92-5

LOCK WASHER,5/16"

3шт.

15

221-1041

PLUG

- pipe, 1/8" slotted hd.

1шт.

16

A22939

GASKET

- housing (Replaces A27888)

2шт.

17

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - control shaft

2шт.

18

A28111

SHAFT - rear, decompressor control

1шт.

19

A26331

COUPLING - control shaft stop

1шт.

20

A27892

SET SCREW,1/4" - 20 x 7/8"

- set

1шт.

21

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW - set, 1/4 x 1" N.C. sq. hd. oval pt.

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

A23096

SHAFT ASSY. - decompressor (incl. ref. 24 - 26)

1шт.

24

A23095

AXLE PIN

PIN - trip

2шт.

25

A26326

LEVER - control

1шт.

26

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

27

A27887

BRACKET - bottom control shaft

4шт.

28

A27886

BRACKET

- top, control shaft

4шт.

29

A27894

LINK - control, upper

2шт.

30

A26326

LEVER - control

1шт.

31

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

32

A27889

SHAFT - control, short

1шт.

33

A22183

HOUSING - control (includes filter mtg. brkt.), Start Serial: 8168801

1шт.
