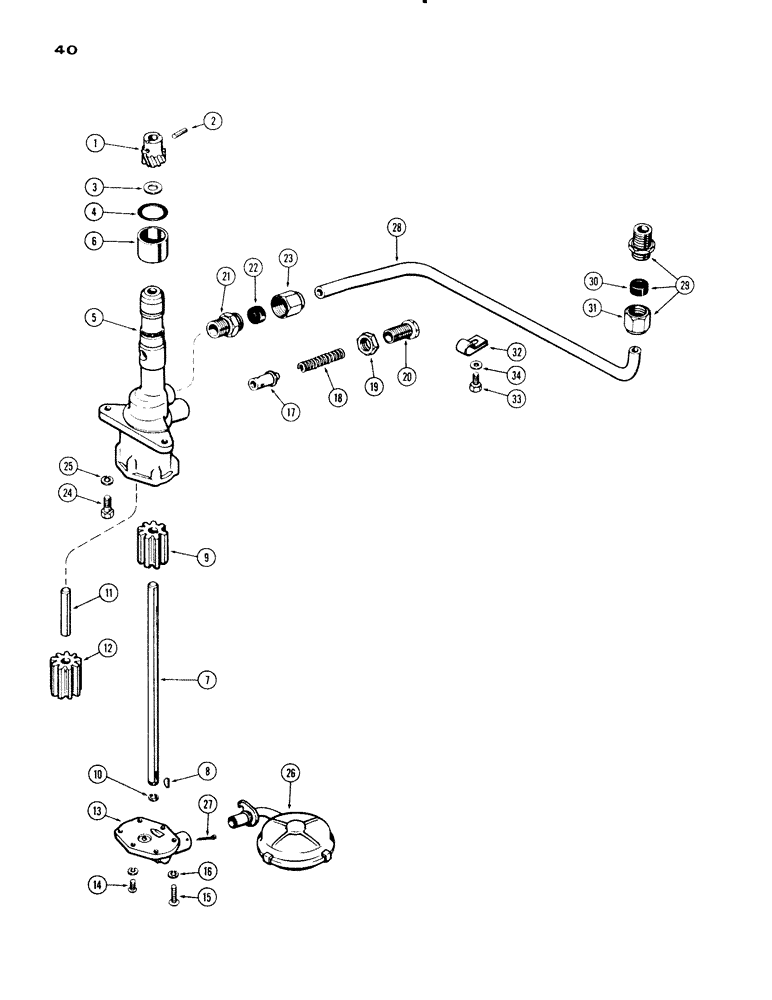

Запчасти Case IH 830-SERIES (040) - OIL PUMP, 267 AND 301 DIESEL ENGINES (02) - ENGINE

A33443

PUMP

ASSY. - oil (incl. ref. 1 - 23)

1шт.

1

A26329

GEAR

- drive, pump

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust, drive gear

1шт.

4

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body (1-3/16 x 1-7/16 x 1/8")

2шт.

5

A21094

BODY

ASSY. - oil pump (incl. ref. 6)

1шт.

6

A21079

SLEEVE

- pump body

1шт.

7

A21102

SHAFT

- pump drive

1шт.

8

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Drive gear #5, 1/8" x 5/8"

1шт.

9

A27855

GEAR WHEEL

GEAR - drive (w/keyway)

1шт.

10

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

11

A27854

SHAFT

- idler, pump

1шт.

12

A27856

GEAR WHEEL

GEAR - idler (w/o keyway)

1шт.

13

A33442

COVER - pump body

1шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- cover, 1/4 x 3/4" N.C. rd. hd.

5шт.

15

75-424

SCREW

- cover, 1/4 x 1-1/2" N.C. rd. hd.

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

17

A22566

PLUNGER

- relief valve

1шт.

18

A23598

VALVE SPRING

SPRING - plunger, relief valve

1шт.

19

A27858

NUT

- lock, adjusting screw

1шт.

20

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

21

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - oil tube (5/8" O.D. x 1/2" P.T.) (incl. ref. 22 & 23)

1шт.

22

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

23

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A27476

FILTER SCREEN

SCREEN ASSY. - oil suction

1шт.

27

132-22

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/32 x 1-1/2"

1шт.

28

A21098

TUBE

- suction, Serial Range: pump-pan

1шт.

29

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube, 5/8" O.D. x 1/2" P.T. (incl. ref. 30 & 31)

1шт.

30

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

31

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

32

A10852

CLAMP - oil tube

1шт.

33

A10072

BOLT,3/8" - 16 x 3/4"

- tube clamp

1шт.

34

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.
