Запчасти Case IH 830-SERIES (036) - PISTON ASSEMBLY AND CONNECTING RODS, MODEL 730, 267 DIESEL ENGINE AND MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

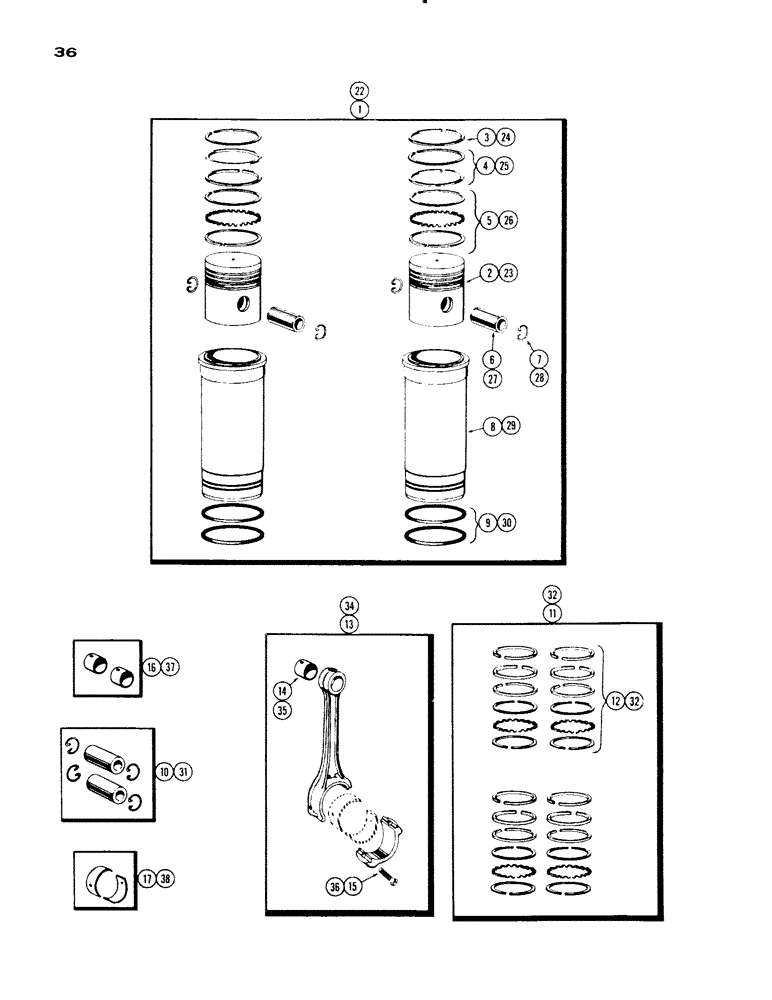

Схема запчастей Case IH 830-SERIES - (036) - PISTON ASSEMBLY AND CONNECTING RODS, MODEL 730, 267 DIESEL ENGINE AND MODEL 830, 301 DIESEL ENGINE (02) - ENGINE
13
17
11
14
31
27
2
15
30
34
26
37
23
22
38
10
5
4
29
6
35
28
32
24
3
32
36
8
16
1
7
12
9
25

Артикул

Название

Примечание

Количество

1

A40355

KIT

PISTON & SLEEVE KIT - Set of 2 for 4-1/8" bore) Replaces A11411 and A23664 (incl. ref. 2 - 9)

2шт.

2

A11101

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - (1st groove) Order ref. 12

2шт.

4

NSS

NOT SOLD SEPARAT

RING - (2nd & 3rd groove) Order ref. 12

4шт.

5

NSS

NOT SOLD SEPARAT

RING - (oil control) Order ref. 12

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - wrist (Order ref. 10)

2шт.

7

A27844

RING

- retaining (See ref. 10)

4шт.

8

A23658

SLEEVE

- cylinder

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O-RING" - sleeve packing (4-1/4" I.D.)

4шт.

10

A23588

AXLE PIN

PIN KIT - wrist (Set of 2 includes 4 retaining rings ref. 7)

2шт.

11

A40365

RING

KIT - re-ring (Set of 4) Replaces A11413 (incl. ref. 12)

1шт.

12

A40364

RING, PISTON

RING KIT - re-ring (Set of 1)

4шт.

13

A28657

ROD, CONNECTING

ROD ASSY. - connecting (incl. ref. 14 & 15)

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - wrist pin (Order ref. 16)

1шт.

15

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

16

A21721

BUSHING

KIT - wrist pin (Set of 2)

2шт.

17

A20393

LINING

LINERS - conn. rod brg. (Set of 2 Std.)

4шт.

17

A20569

JOURNAL

LINERS - conn. rod brg. (Set of 2 .002" undersize)

4шт.

17

A20571

BEARING LINER

LINERS - conn. rod brg. (Set of 2 .010" undersize)

4шт.

17

A20573

KIT

LINERS - conn. rod brg. (Set of 2 .020" undersize)

4шт.

17

A20576

LINING

LINERS - conn. rod brg. (Set of 2 .030" undersize)

4шт.

22

A41363

PISTON

& SLEEVE KIT (Set of 2 for 4-3/8" bore) Replaces A20851, A23668 and A40357, 830 (301) diesel engine (incl. ref. 23 - 30)

2шт.

23

A57139

PISTON

- cylinder (Replaces A33712), 830 (301) diesel engine

2шт.

24

NSS

NOT SOLD SEPARAT

RING - (1st groove) Order ref. 33, 830 (301) diesel engine

2шт.

25

NSS

NOT SOLD SEPARAT

RING - (2nd & 3rd groove) Order ref. 33, 830 (301) diesel engine

4шт.

26

NSS

NOT SOLD SEPARAT

RING - (oil control) (Order ref. 33, 830 (301) diesel engine

2шт.

27

NSS

NOT SOLD SEPARAT

PIN - wrist (Order ref. 31), 830 (301) diesel engine

2шт.

28

A21016

RING, SNAP

RING - retaining (See ref. 31), 830 (301) diesel engine

4шт.

29

A23660

SLEEVE

- cylinder, 830 (301) diesel engine

2шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O-RING - sleeve packing (4-1/2" I.D.), 830 (301) diesel engine

4шт.

31

A21725

KIT

PIN KIT - wrist (Set of 2 includes 4 retaining rings ref. 28), 830 (301) diesel engine

2шт.

32

A41366

KIT

RING KIT - re-ring (Set of 4) (Replaces A20856), 830 (301) diesel engine (incl. ref. 33)

1шт.

33

A41362

RING

KIT - re-ring (Set of 1) Replaces A40363, 830 (301) diesel engine

4шт.

34

A24424

ROD

ASSY. - connecting, 830 (301) diesel engine (incl. ref. 35 & 36)

4шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - wrist pin (Order ref. 37), 830 (301) diesel engine

14шт.

36

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap, 830 (301) diesel engine

2шт.

37

A21722

BUSHING

KIT - wrist pin (Set of 2), 830 (301) diesel engine

2шт.

38

A20393

LINING

LINERS - conn. rod brg. (Set of 2 Std.), 830 (301) diesel engine

4шт.

38

A20569

JOURNAL

LINERS - conn. rod brg. (Set of 2 .002 undersize), 830 (301) diesel engine

4шт.

38

A20571

BEARING LINER

LINERS - conn. rod brg. (Set of 2 .010" undersize), 830 (301) diesel engine

4шт.

38

A20573

KIT

LINERS - conn. rod brg. (Set of 2 .020" undersize), 830 (301) diesel engine

4шт.

38

A20576

LINING

LINERS - conn. rod brg. (Set of 2 .030" undersize), 830 (301) diesel engine

4шт.

Выбрано товаров: 42
