Запчасти Case IH 830-SERIES (034) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 267 AND 301 DIESEL ENGINES (02) - ENGINE

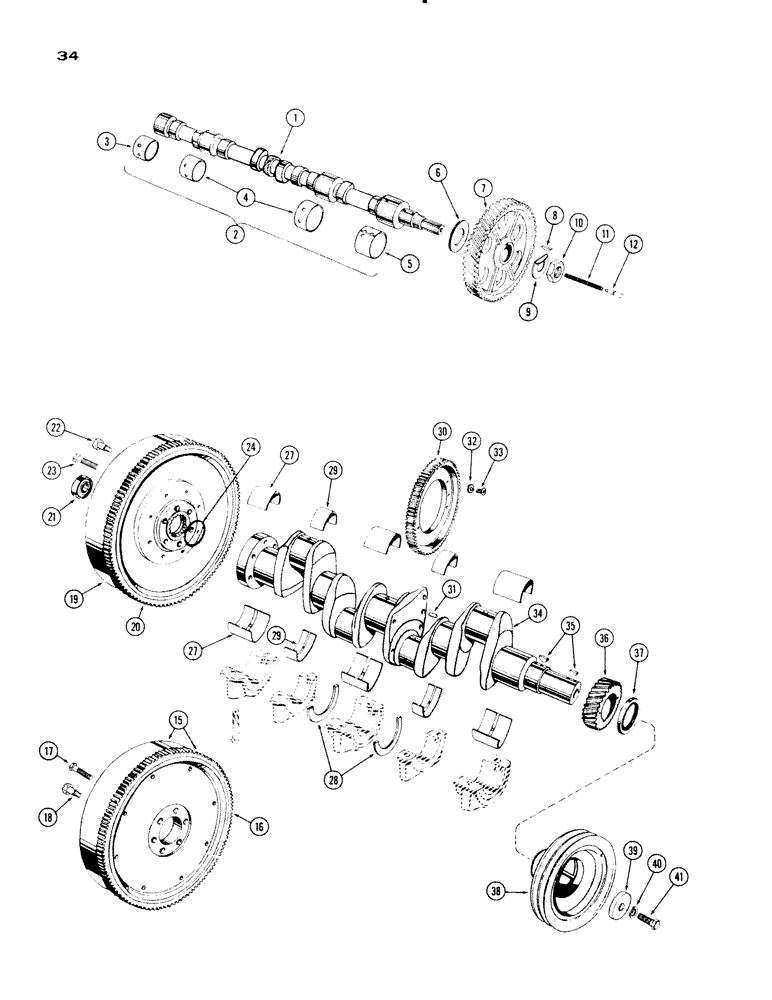

Схема запчастей Case IH 830-SERIES - (034) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 267 AND 301 DIESEL ENGINES (02) - ENGINE
38
1
41
7
20
3
32
31
30
39
29
36
17
33
16
28
29
2
27
24
12
4
40
27
22
10
8
37
18
9
11
6
23
34
5
15
19
21
35

Артикул

Название

Примечание

Количество

1

A23495

CAMSHAFT

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (incl. ref. 3 - 5)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A22604

GEAR

- timing, camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Timing gear #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

10

A26445

NUT

- camshaft

1шт.

11

P0027853A

LARGE PIN

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust

1шт.

15

A11548

FLYWHEEL ASSY. - (w/Case-O-Matic), and crankshaft (incl. ref. 16)

1шт.

16

A27920

GEAR

- ring, starting motor (137T), crankshaft and flywheel

1шт.

17

A11550

BOLT (SPREADER)

BOLT - flywheel (5/8 x 1-1/2" for ref. 15), and crankshaft

4шт.

18

A11549

STEP BOLT

BOLT - dowel (9/16" x 17/32" for ref. 15), crankshaft and flywheel

2шт.

19

A7963

FLYWHEEL ASSY. - (w/std. clutch drive), and crankshaft (incl. ref. 20)

1шт.

20

A27920

GEAR

- ring, starting motor (137T), crankshaft and flywheel

1шт.

21

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, flywheel (std. clutch only), and crankshaft

1шт.

22

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - dowel (9/16 x 2-5/32" for ref. 19), crankshaft and flywheel

2шт.

23

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - flywheel (5/8 x 2-1/8" for ref. 19), and crankshaft

4шт.

24

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (2-3/4 x 3 x 1/8" w/std. clutch), and crankshaft

1шт.

27

A28687

LINING

LINER KIT - crankshaft brg. (wide, std. size), and flywheel

3шт.

27

A7182

KIT

LINER KIT - crankshaft brg. (wide, - .002"), and flywheel

3шт.

27

A7188

BEARING LINER

LINER KIT - crankshaft brg. (wide, -.010"), and flywheel

3шт.

27

A7194

KIT

LINER KIT - crankshaft brg. (wide, - 0.20"), and flywheel

3шт.

27

A7200

KIT

LINER KIT - crankshaft brg. (wide, -.030"), and flywheel

3шт.

28

A27835

WASHER

- thrust, crankshaft (Std. size), and flywheel

2шт.

28

A7204

WASHER

- thrust, crankshaft (.006" oversize), and flywheel

2шт.

29

A20394

LINING

LINER KIT - crankshaft brg. (Narrow std. size), and flywheel

2шт.

29

A20579

LINING

LINER KIT - crankshaft brg. (Narrow -.002"), and flywheel

2шт.

29

A20582

LINING

LINER KIT - crankshaft brg. (Narrow -.010"), and flywheel

2шт.

29

A20585

KIT

LINER KIT - crankshaft brg. (Narrow -.020"), and flywheel

2шт.

29

A20588

KIT

LINER KIT - crankshaft brg. (Narrow -.030"), and flywheel

2шт.

30

A22576

GEAR

ASSY. - balancer drive, crankshaft and flywheel (incl. ref. 31)

1шт.

31

A8134

PIN

- dowel, balancer gear, crankshaft and flywheel

1шт.

32

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, , Crankshaft and flywheel Ext Csk Tooth, 3/8"

4шт.

33

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mounting, balancer gear, crankshaft and flywheel

4шт.

34

A22578

CRANKSHAFT - engine, and flywheel

1шт.

35

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft, gear & pulley and flywheel #C, 5/16" x 1 1/8", HT

2шт.

36

A27837

GEAR

- crankshaft front, and flywheel

1шт.

37

A57342

SEAL

- oil, crankshaft front (Replaces A23433), and flywheel

1шт.

38

A23644

PULLEY

- fan and generator drive, crankshaft and flywheel

1шт.

39

A27903

WASHER

- pulley retainer, crankshaft and flywheel

1шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft and flywheel 5/8"

1шт.

41

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley, Crankshaft and flywheel Hex, 5/8"-18 x 1 1/2", G5

1шт.

Выбрано товаров: 46
