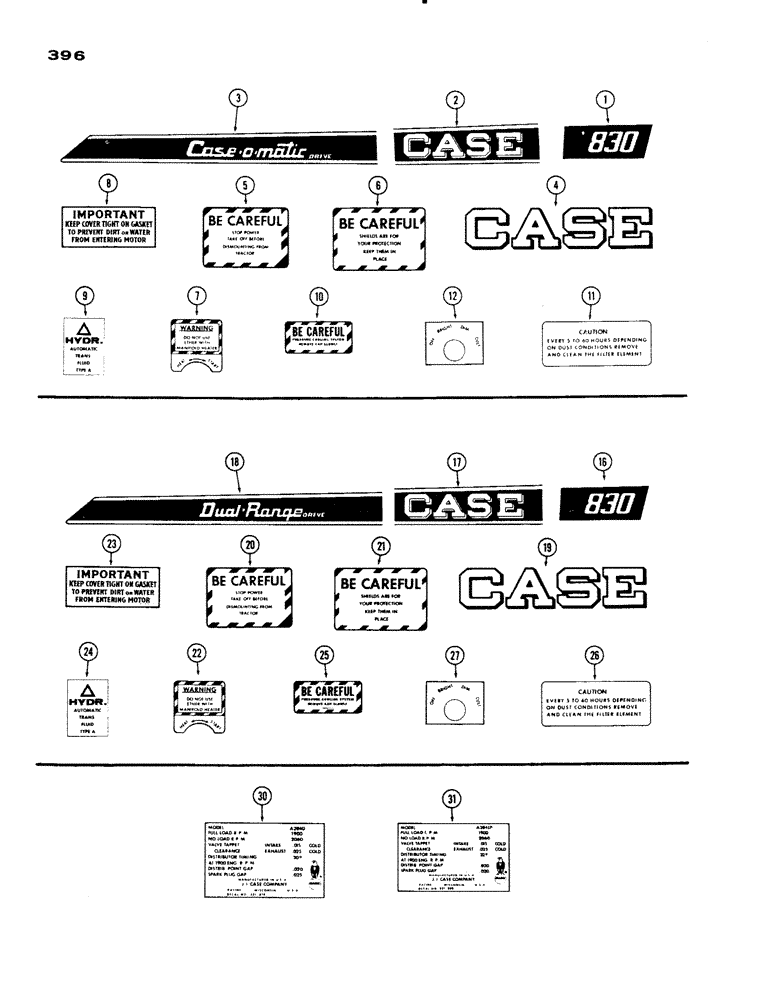

Запчасти Case IH 830-SERIES (396) - DECALS, 830 SPARK IGNITION CASE-O-MATIC, DUAL RANGE, ENGINE DATA (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
B17055
KIT
DECAL KIT - 830 Gas Case-O-Matic (incl. ref. 1 - 12)
1шт.
1
321-402
DECAL
"830" - grill cap R.H.
1шт.
1
321-403
DECAL
"830" - grill cap L.H.
1шт.
2
321-408
DECAL
"CASE" - hood R.H.
1шт.
2
321-409
DECAL
"CASE" - hood L.H.
1шт.
3
321-416
DECAL
"CASE-O-MATIC DRIVE" - RH
1шт.
3
321-417
DECAL
"CASE-O-MATIC DRIVE" - LH
1шт.
4
321-77
DECAL
"CASE" - rear of seat
1шт.
5
321-605
DECAL
"BE CAREFUL" - PTO (on fender)
1шт.
6
321-608
DECAL
"BE CAREFUL" - PTO shield
1шт.
7
321-422
DECAL
"WARNING" - starting switch
1шт.
8
321-12
DECAL
"IMPORTANT" - valve cover
1шт.
9
321-60
X
"HYDR" - transmission oil filler
1шт.
10
321-122
DECAL
"BE CAREFUL" - radiator cap
1шт.
11
321-153
DECAL
"CAUTION" - oil breather
1шт.
12
321-297
DECAL
- light switch
1шт.
B17056
KIT
DECAL KIT - 830 Gas Dual Range, spark ignition (incl. ref. 16 - 27)
1шт.
16
321-402
DECAL
"830" - grill cap RH, spark ignition, dual range
1шт.
16
321-403
DECAL
"830" - grill cap LH, spark ignition, dual range
1шт.
17
321-408
DECAL
"CASE" - hood RH, 830 spark ignition, dual range
1шт.
17
321-409
DECAL
"CASE" - hood LH, 830 spark ignition, dual range
1шт.
18
321-412
DECAL
"DUAL RANGE DRIVE" - RH, 830 spark ignition
1шт.
18
321-413
DECAL
"DUAL RANGE DRIVE" - LH, 830 spark ignition
1шт.
19
321-77
DECAL
"CASE" - rear of seat, 830 spark ignition, dual range
1шт.
20
321-605
DECAL
"BE CAREFUL" - PTO (on fender), 830 spark ignition, dual range
1шт.
21
321-608
DECAL
"BE CAREFUL" - PTO shield, 830 spark ignition, dual range
1шт.
22
321-422
DECAL
"WARNING" - starting switch, 830 spark ignition, dual range
1шт.
23
321-12
DECAL
"IMPORTANT" - valve cover, 830 spark ignition, dual range
1шт.
24
321-60
X
"HYDR" - transmission oil filler, 830 spark ignition, dual range
1шт.
25
321-122
DECAL
"BE CAREFUL" - radiator cap, 830 spark ignition, dual range
1шт.
26
321-153
DECAL
"CAUTION" - oil breather, 830 spark ignition, dual range
1шт.
27
321-297
DECAL
- light switch, 830 spark ignition, dual range
1шт.
30
321-819
"A284G" - 830 Gas, engine data decal
1шт.
31
321-820
"A284G" - 830 LPG, engine data decal
1шт.
