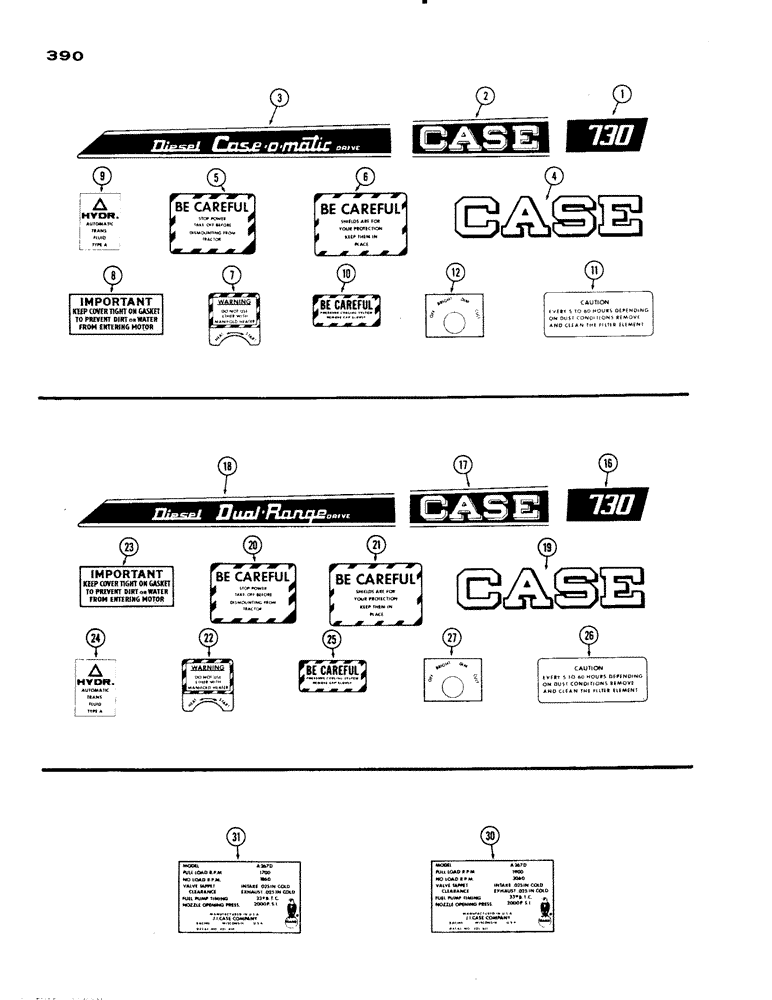

Запчасти Case IH 830-SERIES (390) - DECALS, 730 DIESEL CASE-O-MATIC, DUAL RANGE, ENGINE DATA (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
B17049
KIT
DECAL KIT - 730 Diesel Case-O-Matic (incl. ref. 1 - 12)
1шт.
1
321-400
DECAL
"730" - grill cap R.H.
1шт.
1
321-401
DECAL
"730" - grill cap L.H.
1шт.
2
321-408
DECAL
"CASE" - hood R.H.
1шт.
2
321-409
DECAL
"CASE" - hood L.H.
1шт.
3
321-418
DECAL
"DIESEL CASE-O-MATIC" - R.H.
1шт.
3
321-419
DECAL
"DIESEL CASE-O-MATIC" - L.H.
1шт.
4
321-77
DECAL
"CASE" - rear of seat
1шт.
5
321-605
DECAL
"BE CAREFUL" - P.T.O. (on fender)
1шт.
6
321-608
DECAL
"BE CAREFUL" - P.T.O. shield
1шт.
7
321-422
DECAL
"WARNING" - starting switch
1шт.
8
321-12
DECAL
"IMPORTANT" - valve cover
1шт.
9
321-60
X
"HYDR" - transmission oil filler
1шт.
10
321-122
DECAL
"BE CAREFUL" - radiator cap
1шт.
11
321-153
DECAL
"CAUTION" - oil breather
1шт.
12
321-297
DECAL
- light switch
1шт.
B17050
KIT
DECAL KIT - 730 DIESEL DUAL RANGE (incl. ref. 16 - 27)
1шт.
16
321-400
DECAL
"730" - grill cap, R.H., diesel dual range
1шт.
16
321-401
DECAL
"730" - grill cap, L.H., diesel dual range
1шт.
17
321-408
DECAL
"CASE" - hood R.H., 730 diesel dual range
1шт.
17
321-409
DECAL
"CASE" - hood L.H., 730 diesel dual range
1шт.
18
321-414
DECAL
"DIESEL DUAL RANGE" - R.H., 730
1шт.
18
321-415
DECAL
"DIESEL DUAL RANGE" - L.H., 730
1шт.
19
321-77
DECAL
"CASE" - rear of seat, 730 diesel dual range
1шт.
20
321-605
DECAL
"BE CAREFUL" - P.T.O. (on fender), 730 diesel dual range
1шт.
21
321-608
DECAL
"BE CAREFUL" - P.T.O. shield, 730 diesel dual range
1шт.
22
321-422
DECAL
"WARNING" - starting switch, 730 diesel dual range
1шт.
23
321-12
DECAL
"IMPORTANT" - valve cover, 730 diesel dual range
1шт.
24
321-60
X
"HYDR" - transmission oil filler, 730 diesel dual range
1шт.
25
321-122
DECAL
"BE CAREFUL" - radiator cap, 730 diesel dual range
1шт.
26
321-153
DECAL
"CAUTION" - oil breather, 730 diesel dual range
1шт.
27
321-297
DECAL
- light switch, 730 diesel dual range
1шт.
30
321-811
"A267D" - 730 CASE-O-MATIC, engine data decals (incl. ref. 31)
1шт.
31
321-810
"A267D" - 730 DUAL RANGE, engine data decals
1шт.
Выбрано товаров: 34
