Запчасти Case IH 830-SERIES (028) - CYLINDER HEAD AND VALVES, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE

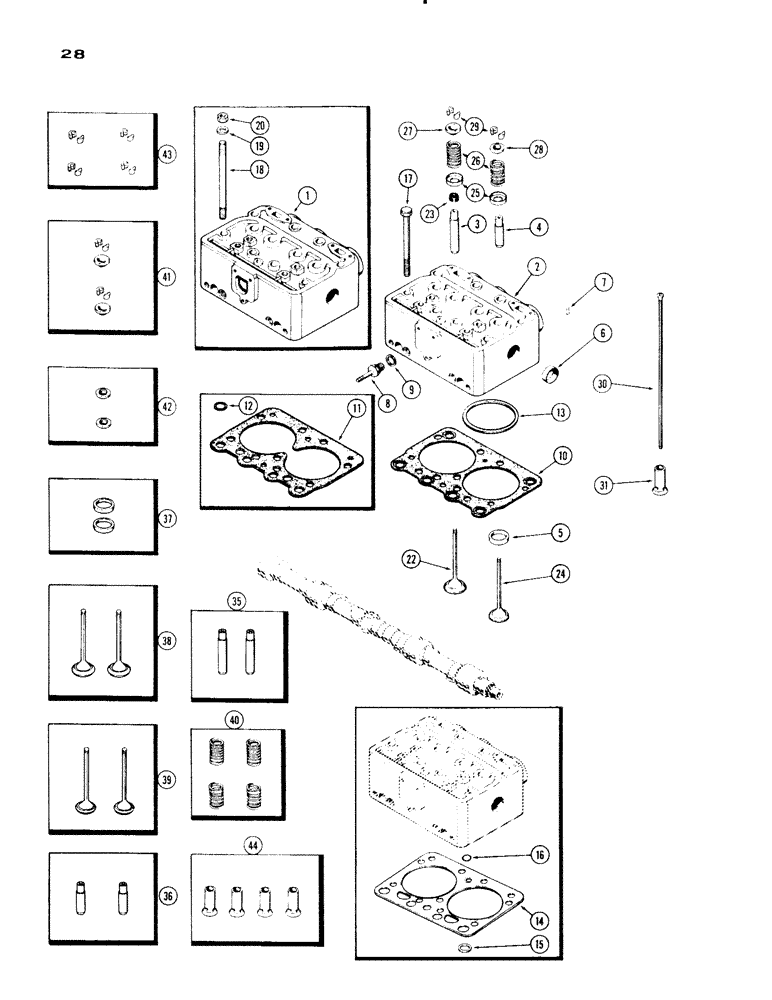

Схема запчастей Case IH 830-SERIES - (028) - CYLINDER HEAD AND VALVES, MODEL 830, 301 DIESEL ENGINE (02) - ENGINE
22
3
44
15
30
6
26
36
2
38
28
39
11
4
9
35
13
41
10
19
27
37
16
40
29
12
18
1
24
7
8
42
31
25
17
43
5
14
23
20

Артикул

Название

Примечание

Количество

1

A21022

HEAD

ASSY. (w/decompressor) (incl. ref. 3 - 9)

2шт.

2

A33644

X

HEAD ASSY. - (w/o decompressor) (incl. ref. 3 - 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 35)

2шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 36)

2шт.

5

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 37)

2шт.

6

A34124

PLUG,Cup, 1 5/8", Stainless

- cup (1-41/64" dia.)

2шт.

7

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating (1/8 x 17/64")

2шт.

8

A10678

STUD

- injector holder

2шт.

9

A10679

GASKET

- copper (23/32 x 29/32 x 1/32")

2шт.

10

A57593

GASKET

- head

2шт.

11

A41385

X

GASKET KIT - cylinder header (incl. ref. 3 - 9)

2шт.

12

A57226

RING - head gasket (Order A57593)

4шт.

13

A34686

RING

- fire, cyl. head (Std.) See A34688

4шт.

13

A34688

RING

- fire, cyl. head (oversize w/blue stripe)

4шт.

14

A23117

GASKET

- cylinder head (Order A57593)

2шт.

15

A7669

RING

- water passage (Not used with fire ring)

4шт.

16

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (Not used with fire ring)

2шт.

17

A23355

BOLT

- head to block (9/16 x 6" N.C.) See ref. 18

18шт.

18

A21058

BOLT

- head to block (early production)

18шт.

19

A27870

WASHER

- head stud (19/32 x 15/16" x 11 ga.)

18шт.

20

25-119

NUT,9/16"-18, G5

- stud, 9/16" N.F.

18шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 38)

4шт.

23

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 39)

4шт.

25

A27866

SEAT

- valve springs

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 40)

8шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 41)

4шт.

28

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 42)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order ref. 43)

16шт.

30

A21060

ROD

- push

8шт.

31

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 44)

8шт.

35

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

36

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

37

A57485

INSERT

KIT - exhaust valve (Set of 2)

2шт.

38

A24921

KIT

VALVE KIT - intake (Set of 2)

2шт.

39

A34254

VALVE

KIT - exhaust (Set of 2)

2шт.

40

A21694

SPRING

KIT - valve (Set of 4)

2шт.

41

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 retainers w/locks)

2шт.

42

A24993

CAP

ROTO-CAP KIT - exhaust valve (Set of 2)

2шт.

43

A40352

LOCK

KIT - spring retainer (Set of 8)

2шт.

44

A21653

KIT

LIFTER KIT - push rod (Set of 4 Std.)

2шт.

44

A22463

KIT

LIFTER KIT - push rod (Set of 4 -.010" undersize)

2шт.

Выбрано товаров: 42
