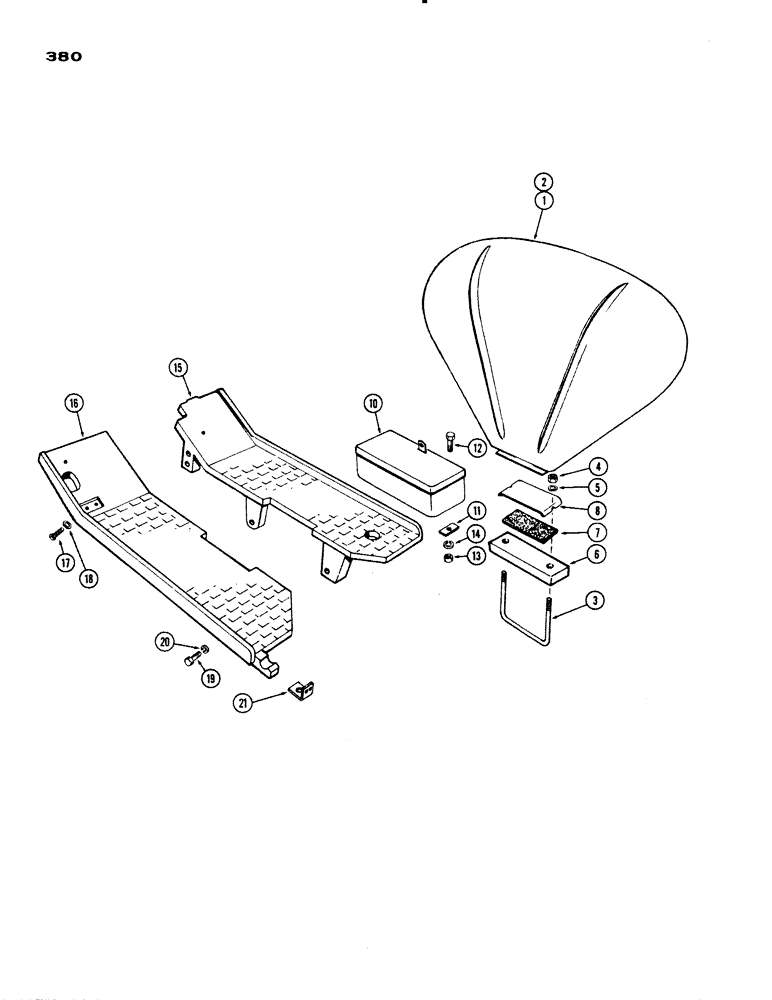

Запчасти Case IH 830-SERIES (380) - FENDERS AND PLATFORM, GEN. PURPOSE AND FOUR WHEEL (09) - CHASSIS/ATTACHMENTS

1

A28498

FENDER - R.H.

1шт.

2

A7615

FENDER - L.H.

1шт.

3

A7069

ARM

"U" BOLT - fender support

2шт.

4

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

A7068

SPARE PART

SUPPORT - fender

2шт.

7

A21610

CUSHION - fender mounting

2шт.

8

A21609

PLATE - backing, cushion

2шт.

10

A11099

TOOL

BOX

1шт.

11

A24321

STRAP - hold down, tool box

1шт.

12

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A21730

PLATFORM - R.H.

1шт.

16

A21731

PLATFORM - L.H.

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

A11028

BRACKET - transport, hydraulic cylinder

1шт.
