Запчасти Case IH 830-SERIES (376) - HOOD AND PANELS, 730 GROVE (09) - CHASSIS/ATTACHMENTS

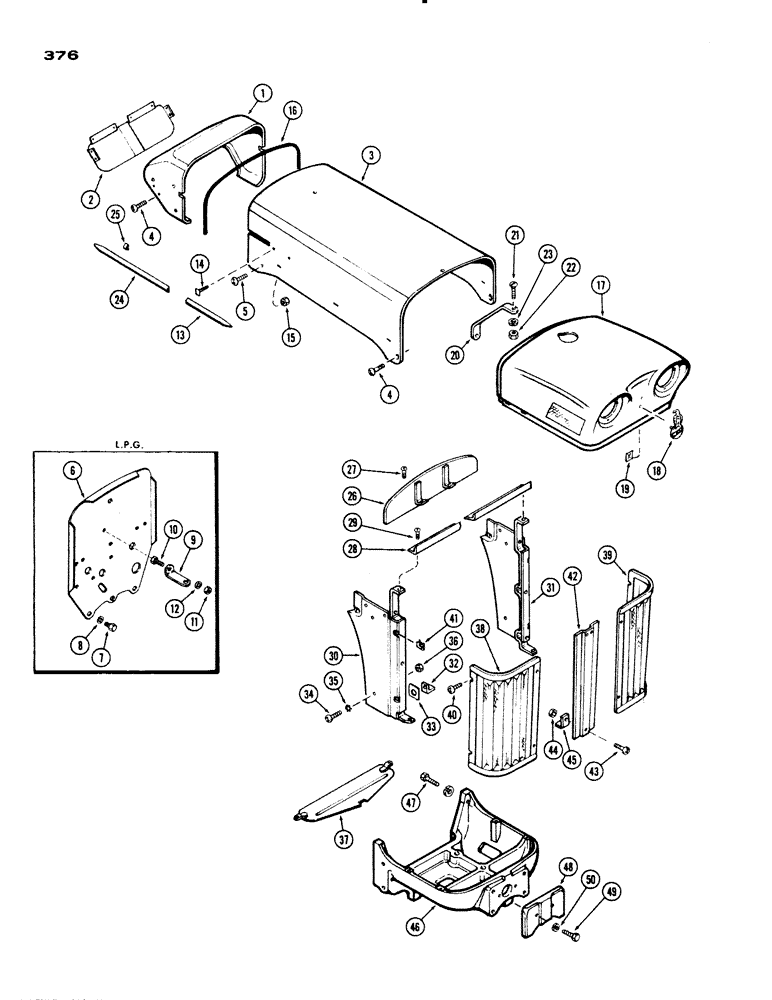

Схема запчастей Case IH 830-SERIES - (376) - HOOD AND PANELS, 730 GROVE (09) - CHASSIS/ATTACHMENTS
10
47
11
5
25
16
40
1
2
42
13
17
32
29
45
8
27
24
48
33
22
28
34
44
26
39
30
3
18
19
50
37
7
20
9
43
21
46
12
35
36
4
31
14
41
23
15
6
38
4
49

Артикул

Название

Примечание

Количество

1

A23206

PANEL - instrument

1шт.

2

A23207

COVER - instrument panel

1шт.

3

A23212

HOOD - engine (Diesel)

1шт.

3

A23211

HOOD - engine (L.P.G.)

1шт.

4

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood & panel, 5/16 x 5/8" N.C. truss hd.

6шт.

5

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood, 1/4 x 1/2" N.C. truss hd.

6шт.

6

A23225

SUPPORT - rear, hood (L.P.G.)

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

8

92-8

LOCK WASHER,1/2"

3шт.

9

A23226

BRACE - hood support (L.P.G.)

1шт.

10

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- 3/8 x 1/2" N.F. hex hd.

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

A11785

MOULDING - hood trim

2шт.

14

A11459

BOLT

- retaining, moulding

4шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- #10-N.F. sems spec.

4шт.

16

A7005

CUSHION - hood

1шт.

17

A21629

CAP - radiator & grill

1шт.

18

A24526

MEDALLION - front

1шт.

19

131-138

PUSH-ON NUT

- retainer, medallion (1/4" push on type)

2шт.

20

A21421

BRACE - cap & hood

1шт.

21

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" N.C. flat hd.

1шт.

22

25-104

NUT,1/4"-20, G5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

A11455

MOLDING

MOULDING - trim, fuel tank

2шт.

25

A11456

LOCK PIN

CLIP -, Serial Range: moulding-tank

4шт.

26

A20954

BAFFLE - upper, radiator

1шт.

27

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4 x 3/4" N.C. rd. hd.

2шт.

28

A11049

BRACE - cap and panels

1шт.

29

76-48

BOLT (MACHINE)

SCREW - 1/4 x 3/4" N.C. hex rd. hd.

2шт.

30

A20960

PANEL - R.H. side, radiator

1шт.

31

A20961

PANEL - L.H. side, radiator

1шт.

32

A11905

CLIP - rear, panel

2шт.

33

A11737

SPACER - clip (21/32 x 1-1/8" x 20 ga.)

1шт.

34

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

4шт.

35

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

36

125-4

NUT - 1/4" N.C. hex

4шт.

37

A8520

BAFFLE - lower, radiator

1шт.

38

A11264

GRILL - R.H., radiator

1шт.

39

A11265

GRILL - L.H., radiator

1шт.

40

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

4шт.

41

131-135

SPRING NUT,Tinn, U, 1/4"-20

Speed Tinn, U, 1/4"-20

4шт.

42

A20378

BRACE

- center, grill cap

1шт.

43

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

3шт.

44

25-104

NUT,1/4"-20, G5

1шт.

45

A11267

BRACE - center

1шт.

46

A21791

SUPPORT - front axle and radiator

1шт.

47

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

48

A20279

COVER - front

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 51
