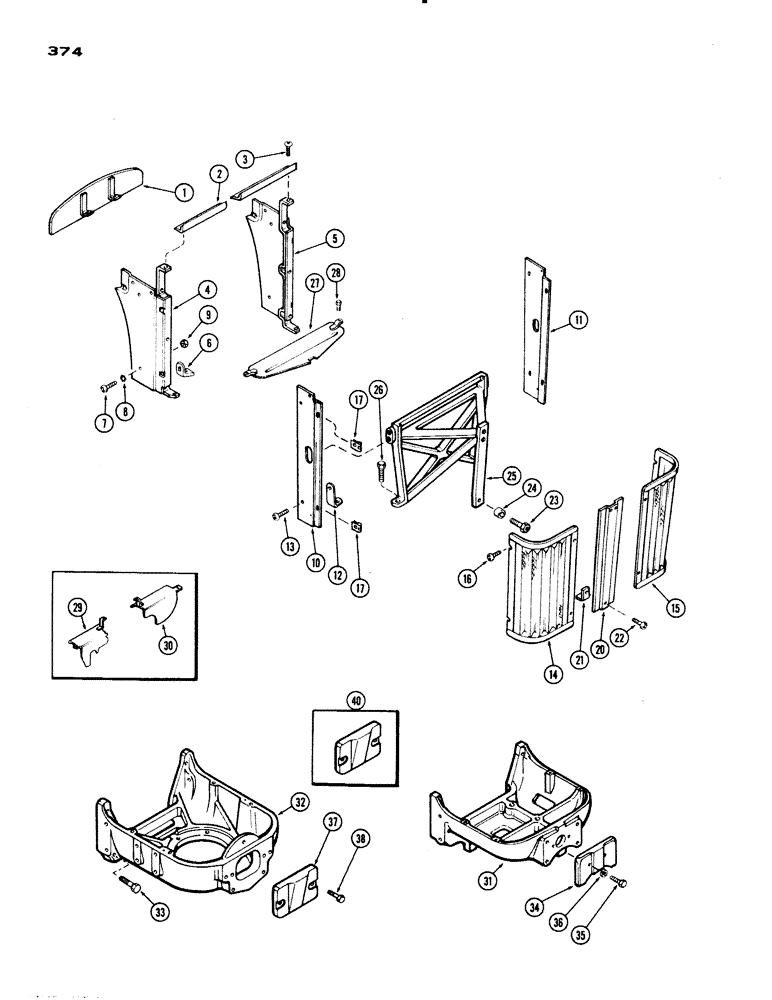

Запчасти Case IH 830-SERIES (374) - SIDE PANELS AND GRILL, USED PRIOR TO TRAC. S/N 8201146 (09) - CHASSIS/ATTACHMENTS

1

A20954

BAFFLE - upper, radiator

1шт.

2

A11049

BRACE - top, side panel

1шт.

3

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- mach., 1/4 x 1/2" N.C. rd. hd.

4шт.

4

A20960

MEMBER - R.H. side, radiator

1шт.

5

A20961

MEMBER - L.H. side, radiator

1шт.

6

A11905

CLIP - rear support, side member

1шт.

7

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. rd. hd.

2шт.

8

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A11290

MEMBER - extension, R.H. side (Gen. Purp.)

1шт.

10

A11328

DECAL

MEMBER - extension, R.H. side (Std. 4 Whl.)

1шт.

11

A11291

MEMBER - extension, L.H. side (Gen. Purp.)

1шт.

11

A11329

MEMBER - extension, L.H. side (Std. 4 Whl.)

1шт.

12

A11292

BRACE - extension

2шт.

13

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- mach., 1/4 x 1/2" N.C. rd. hd.

6шт.

14

A11264

GRILL - R.H. (Std. 4 Whl), Start Serial: 8173401

1шт.

14

A11286

GRILL - R.H. (Gen. Purp.) Use also on Std. 4 Whl., Serial Range: -8173401

1шт.

15

A11265

GRILL - L.H. (Std. 4 Whl.), Serial Range: -8173401

1шт.

15

A11287

TUBE

GRILL - L.H. (Gen. Purp.) Use also on Std. 4 Whl., Start Serial: 8173401

1шт.

16

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

4шт.

17

131-132

SPRING NUT,Tinn, U, 1/4"-20

- speed, 1/4" - N.C. "U" type

4шт.

20

A11266

SECTION - center (Std. 4 Whl.)

1шт.

20

A11288

SECTION - center (Gen. Purp.)

1шт.

21

A11267

BRACE - center section

1шт.

22

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. truss hd.

3шт.

23

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- cultivator frame (Gen. Purp.)

1шт.

24

B18239

SPACER,3/4" Pipe x 3/4"

- center section (Std. 4 Whl.)

1шт.

25

A23139

FRAME - cult. support (Gen. Purp.) Replaces A11179

1шт.

26

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

27

A8520

PLATE - baffle, lower (Std. 4 Whl.), Serial Range: -8173401

1шт.

27

A22690

PLATE - baffle, lower (Std. 4 Whl.), Start Serial: 8173401

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

A8516

BAFFLE - lower R.H. (Gen. Purp.)

1шт.

30

A8517

BAFFLE - lower L.H. (Gen. Purp.)

1шт.

31

A21791

BRACKET - front axle & radiator (Std. 4 Whl.)

1шт.

31

A21792

BRACKET - (Order A33919)

1шт.

32

A33919

BRACKET - front axle & radiator (Gen. Purp.)

1шт.

33

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

34

A20279

COVER - front (Std. 4 Whl.)

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

A22769

COVER - front (w/A22803 brkt.) (Gen. Purp.)

1шт.

38

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

2шт.

40

A26338

COVER - front (w/A21792 brkt.) (Gen. Purp.)

1шт.
