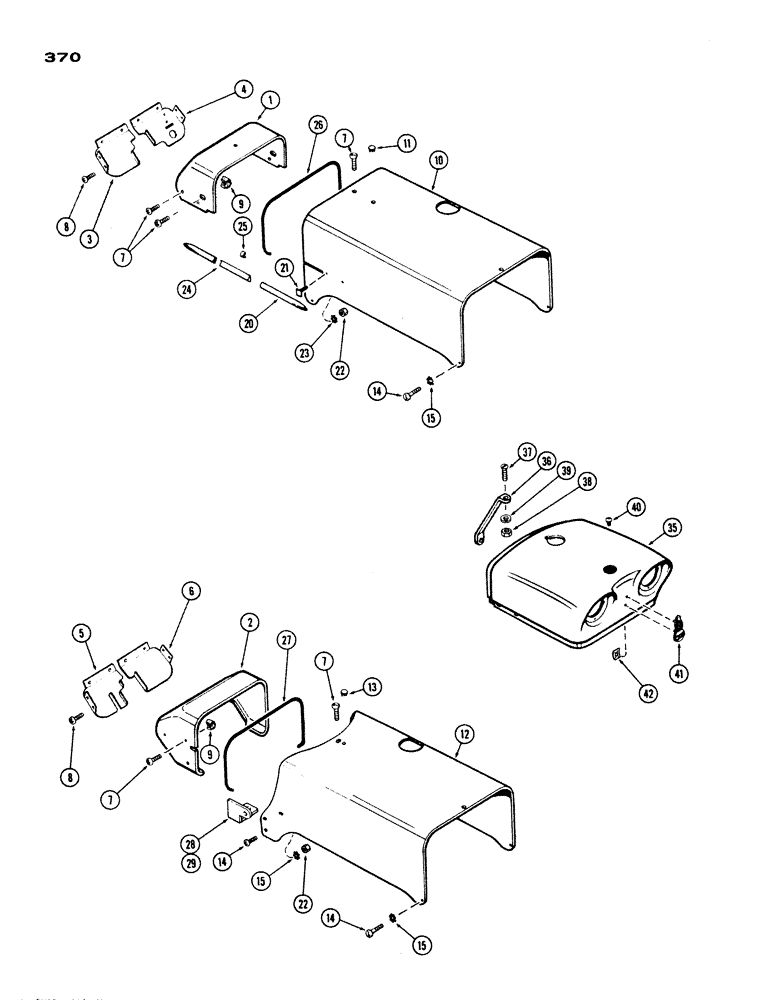

Запчасти Case IH 830-SERIES (370) - HOOD AND GRILL CAP, USED PRIOR TO TRAC. S/N 8201146 (09) - CHASSIS/ATTACHMENTS

1

A21406

PANEL - instrument (Gas & Diesel)

1шт.

2

A21414

PANEL - instrument (L.P.G.)

1шт.

3

A21424

COVER - R.H. panel (Gas & Diesel)

1шт.

4

A21425

COVER - L.H., panel (Gas & Diesel)

1шт.

5

A21426

COVER - R.H., panel (L.P.G.)

1шт.

6

A21427

COVER - L.H., panel (L.P.G.)

1шт.

7

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- panel, 1/4 x 3/8" N.C. truss hd.

3шт.

8

175-430

SCREW - cover, #10-24 x 3/8" truss hd.

8шт.

9

131-146

NUT

- cage, #10-24

8шт.

10

A21417

HOOD ASSY. - (Gas & Diesel) (incl. ref. 11)

1шт.

11

205-10

PLUG

- button, 1/2" dia.

1шт.

12

A21420

HOOD ASSY. (L.P.G.) (incl. ref. 13)

1шт.

13

205-10

PLUG

- button

1шт.

14

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood, 1/4 x 1/2" N.C. truss hd.

2шт.

15

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 1/4" ext. Shakeproof

2шт.

20

A11785

MOULDING - trim, hood

2шт.

21

A11459

BOLT

- #10 "T" type

4шт.

22

129-37

NUT,#10-32

4шт.

23

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

24

A11455

MOLDING

MOULDING - trim, fuel tank (Gas & Diesel)

2шт.

25

A11456

LOCK PIN

CLIP - trim retainer

4шт.

26

A7005

CUSHION - hood (34" lg.) (1 w/L.P.G.)

2шт.

27

A13225

MOULDING - hood (41-1/2" L.P.G.)

1шт.

28

A21440

BRACKET - R.H., hood (L.P.G.)

1шт.

29

A21441

BRACKET - L.H., hood (L.P.G.)

1шт.

35

A21628

CAP

- radiator & grill (Std. 4 whl.)

1шт.

35

A21631

CAP - radiator & grill (Gen. Purp.)

1шт.

36

A21421

BRACE - hood & cap

1шт.

37

73-40

SCREW - 1/4 x 5/8" flat hd.

1шт.

38

25-104

NUT,1/4"-20, G5

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

195-405

SCREW - 1/4 x 1/2" N.C. truss hd.

1шт.

41

A24526

MEDALLION - grill cap

1шт.

42

131-138

PUSH-ON NUT

- retainer, 1/4" push on type

2шт.
