Запчасти Case IH 830-SERIES (368) - HOOD AND GRILL CAP, 1ST USED TRAC. S/N 8201146 (09) - CHASSIS/ATTACHMENTS

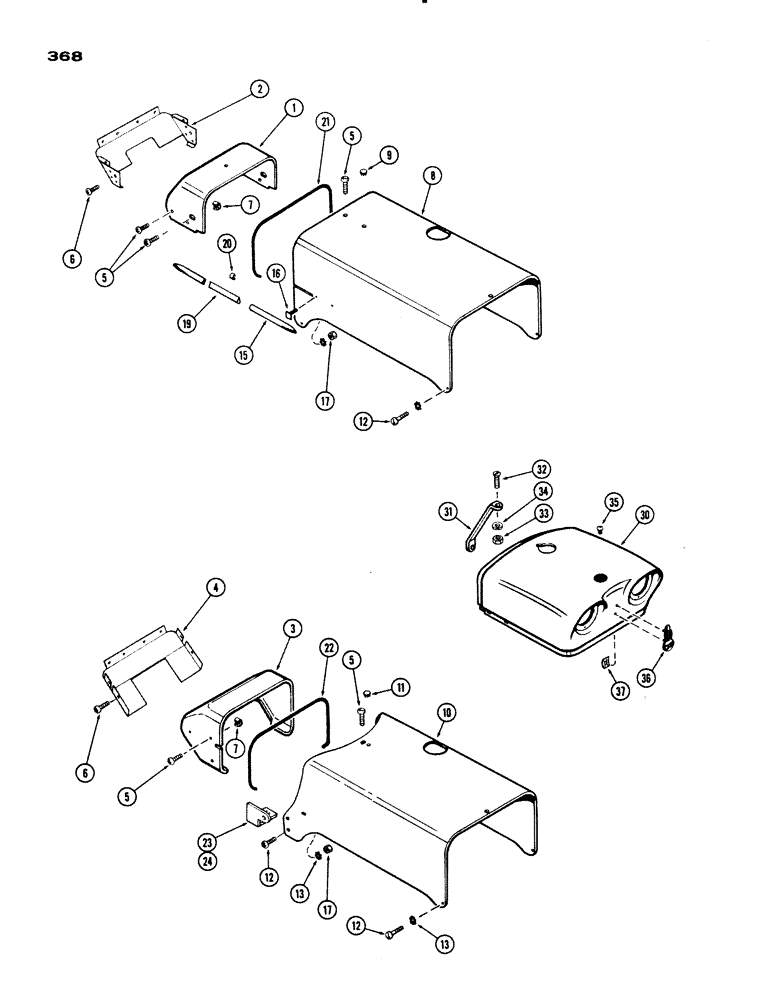

Схема запчастей Case IH 830-SERIES - (368) - HOOD AND GRILL CAP, 1ST USED TRAC. S/N 8201146 (09) - CHASSIS/ATTACHMENTS
7
12
5
35
4
9
17
1
19
13
20
21
8
37
6
33
11
16
15
12
5
5
17
3
7
13
34
36
5
2
32
24
10
22
23
31
30
12
6

Артикул

Название

Примечание

Количество

1

A24259

PANEL - instrument (Gas & Diesel)

1шт.

2

A24269

COVER - instrument panel (Gas & Diesel)

1шт.

3

A24246

PANEL - instrument (L.P.G.)

1шт.

4

A24326

COVER - instrument panel (L.P.G.)

1шт.

5

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- panel, 1/4 x 3/8" N.C. truss hd.

3шт.

6

187-1026

SCREW,Cross Pan Hd, #10 x 3/8"

- cover, #8 x 1/2" truss hd.

6шт.

7

131-130

NUT

- cage, #8 Type "J"

6шт.

8

A24200

HOOD ASSY. - (Gas & Diesel) (incl. ref. 9)

1шт.

9

205-10

PLUG

- button, 1/2" dia.

1шт.

10

A24206

HOOD ASSY. - (L.P.G.) (incl. ref. 11)

1шт.

11

205-10

PLUG

- button, 1/2" dia.

1шт.

12

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood, 1/4 x 1/2" N.C. truss hd.

2шт.

13

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 1/4" ext. Shakeproof

2шт.

15

A11785

MOULDING - trim, hood

2шт.

16

A11459

BOLT

- #10 "T" type

4шт.

17

129-37

NUT,#10-32

4шт.

18

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

19

A11455

MOLDING

MOULDING - trim, fuel tank (Gas & Diesel)

2шт.

20

A11456

LOCK PIN

CLIP - trim retainer

4шт.

21

A7005

CUSHION - hood (34" lg.) (1w/LPG)

2шт.

22

A13225

MOULDING - hood (42-1/2"-LPG)

1шт.

23

A21440

BRACKET - R.H., hood (L.P.G.)

1шт.

24

A21441

BRACKET - L.H., hood (L.P.G.)

1шт.

30

A24482

CAP - radiator & grill

1шт.

31

A23791

BRACE - hood & cap

1шт.

32

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" flat hd.

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. Truss hd.

1шт.

36

A24526

MEDALLION - grill cap

1шт.

37

131-138

PUSH-ON NUT

- retainer, 1/4" push on type

2шт.

Выбрано товаров: 31
