Запчасти Case IH 830-SERIES (366) - REAR MOUNTED BELT PULLEY (09) - CHASSIS/ATTACHMENTS

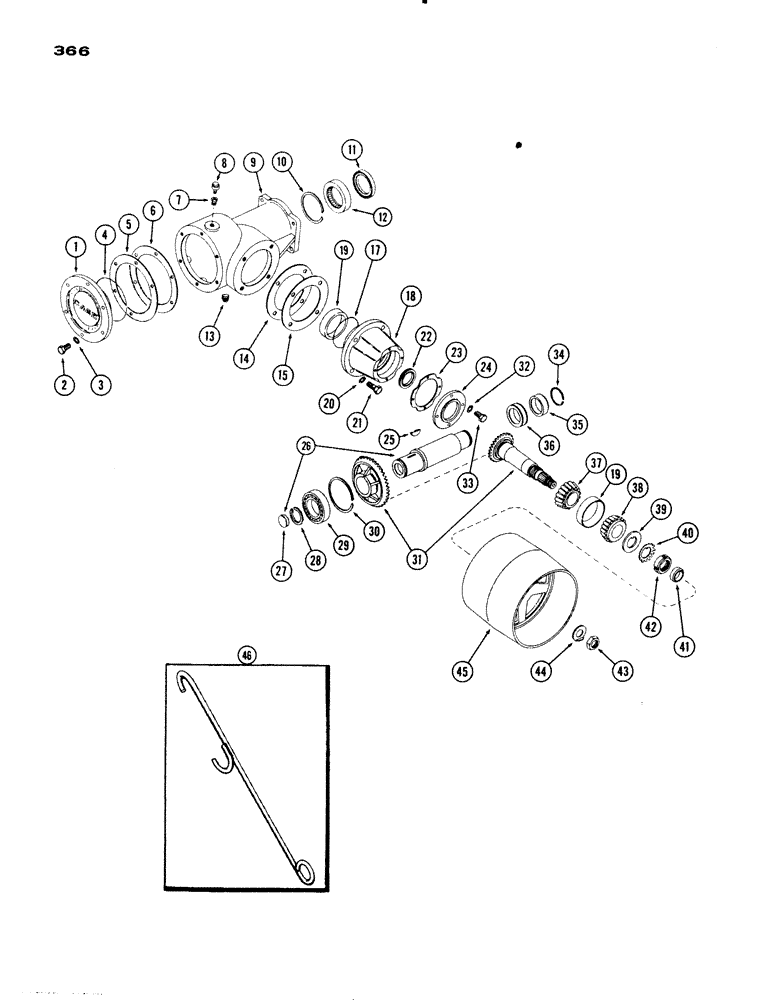

Схема запчастей Case IH 830-SERIES - (366) - REAR MOUNTED BELT PULLEY (09) - CHASSIS/ATTACHMENTS
12
20
1
19
46
27
43
25
17
42
39
15
10
40
7
14
2
44
41
6
3
31
26
36
32
19
5
29
33
23
24
22
34
9
8
13
4
21
28
38
45
30
37
18
35
11

Артикул

Название

Примечание

Количество

1

A20293

CARRIER - rear bearing, drive shaft

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - carrier (6-1/4" I.D.)

1шт.

5

A20294

SHIM - bearing carrier (.003")

1шт.

6

A20295

SHIM - bearing carrier (.005")

1шт.

7

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 x 1/4"

1шт.

8

A27173

BREATHER

- oil, drive housing (incl. ref. 9)

1шт.

9

A20282

HOUSING - drive

1шт.

10

A20287

RING - snap, drive shaft bearing (incl. ref. 11)

1шт.

11

A20288

SEAL - oil, drive shaft

1шт.

12

A20286

BEARING - inner, drive shaft

1шт.

13

211-1011

BALL,11/32" Dia

PLUG - pipe, 1/8" sq. hd.

1шт.

14

A20300

SHIM - pulley shaft housing (.005")

1шт.

15

A20299

SHIM - pulley shaft housing (.003")

1шт.

17

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

"O" RING - pulley shaft housing (4-3/4" I.D.)

1шт.

18

A20298

HOUSING ASSY. - pulley shaft

1шт.

19

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, pulley shaft

2шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

A20306

SEAL - oil, pulley shaft

1шт.

23

A20309

GASKET - carrier, oil seal

1шт.

24

A20307

CARRIER - oil seal

1шт.

25

126-44

WOODRUFF KEY,#129, 3/8" x 2 1/8"

KEY - level gear (Woodruff #129)

1шт.

26

A20285

SHAFT ASSY. - drive

1шт.

27

A20284

X

PLUG - end, drive shaft (1-1/2" cup type)

1шт.

28

A27760

RING, SNAP

RING - rear, Serial Range: bearing-shaft

1шт.

29

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

BEARING - rear, drive shaft

1шт.

30

A20292

RING - snap, rear, Serial Range: bearing-housing

1шт.

31

A20312

GEAR SET - pulley drive

1шт.

32

92-5

LOCK WASHER,5/16"

4шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carrier Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

34

A20314

RING - snap, drive shaft front

1шт.

35

A20289

COLLAR - drive shaft

1шт.

36

A20313

RACE - inner bearing drive shaft

1шт.

37

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - inner bearing, pulley shaft

1шт.

38

A20301

CUP

CONE - outer bearing, pulley shaft

1шт.

39

A20302

WASHER - thrust, pulley shaft

1шт.

40

A20303

WASHER - lock, outer bearing

1шт.

41

A20305

COLLAR - pulley

1шт.

42

38731

LUG

NUT - lock, outer bearing

1шт.

43

25-1516

NUT,Jam, 1"-14, G5

- pulley, 1" N.F. hex, jam

1шт.

44

A26737

WASHER - lock, pulley nut

1шт.

45

A7427

PULLEY - belt (7-1/4" wide x 10-1/2" O.D.)

1шт.

46

A20614

PIPE

SUPPORT - Eagle Hitch R.H. draft arm

1шт.

Выбрано товаров: 45
