Запчасти Case IH 830-SERIES (364) - SIDE MOUNTED BELT PULLEY (09) - CHASSIS/ATTACHMENTS

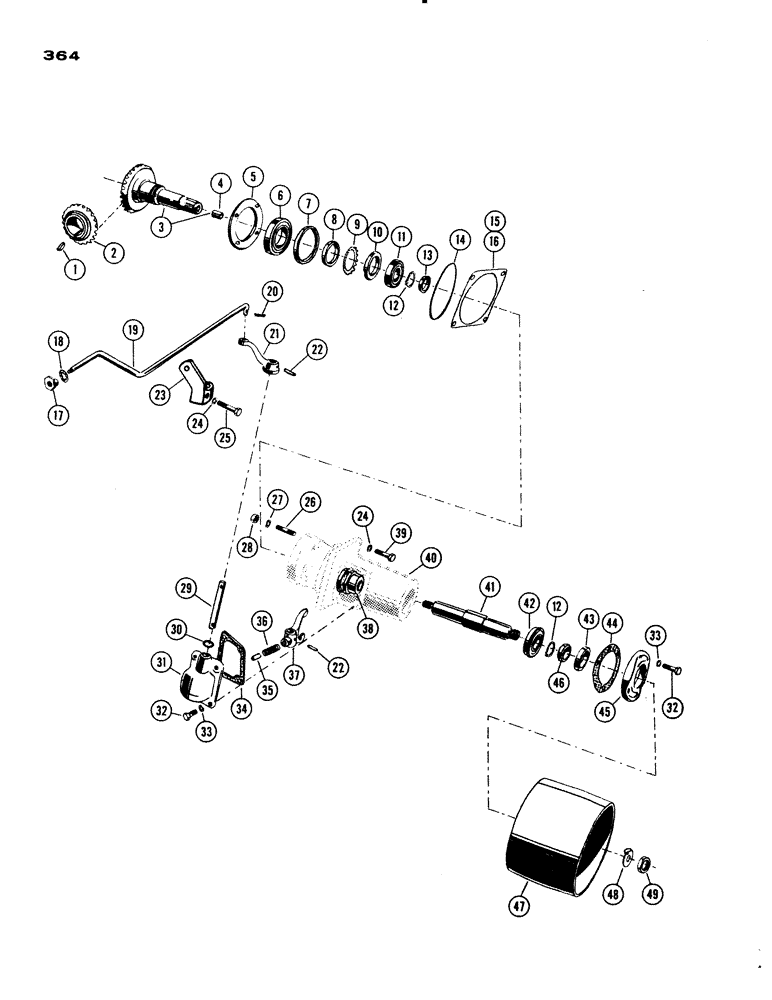

Схема запчастей Case IH 830-SERIES - (364) - SIDE MOUNTED BELT PULLEY (09) - CHASSIS/ATTACHMENTS
42
15
14
33
5
8
38
12
46
27
19
48
1
32
32
31
26
25
35
49
11
3
10
7
22
20
34
39
40
30
37
9
17
44
18
43
24
22
24
21
12
13
33
45
47
29
36
4
28
41
2
6
16
23

Артикул

Название

Примечание

Количество

1

126-44

WOODRUFF KEY,#129, 3/8" x 2 1/8"

KEY - pinion (Woodruff #129)

1шт.

2

A7066

PINION - pulley drive

1шт.

3

A7483

SHAFT & GEAR ASSY. - pulley (incl. ref. 4)

1шт.

4

A7411

BUSHING - pilot

1шт.

5

A7404

PLATE - inner bearing

1шт.

6

A7401

BEARING - inner

1шт.

7

A7402

SPACER - large, inner bearing

1шт.

8

A7403

SPACER - small, inner bearing

1шт.

9

A7407

X

WASHER - lock, inner bearing

1шт.

10

A7406

LOCK NUT

NUT - lock, inner bearing

1шт.

11

A8668

BEARING - center, pulley shaft

1шт.

12

A7409

SNAP RING,#137, Ext

RING, snap, , center & outer bearing #137, Ext

2шт.

13

A7439

COLLAR - stop, pulley clutch

1шт.

14

A27484

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

"O" RING - drive housing

1шт.

15

A7399

SHIM - housing (.003")

1шт.

16

A7400

SHIM - housing (.005")

1шт.

17

A8172

KNOB - clutch hand control

1шт.

18

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4" int. Shakeproof (incl. ref. 19)

1шт.

19

A7424

ROD - clutch control

1шт.

20

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

A7423

LEVER - clutch control

1шт.

22

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

23

A8151

SUPPORT - clutch control rod

1шт.

24

92-8

LOCK WASHER,1/2"

5шт.

25

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

26

A7405

STUD - retainer, inner bearing (incl. ref. 27)

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

29

A7420

SHAFT - clutch fork

1шт.

30

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - clutch shaft

1шт.

31

A7417

HOUSING - clutch

1шт.

32

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

7шт.

33

92-6

LOCK WASHER,3/8"

7шт.

34

A7418

GASKET - clutch housing

1шт.

35

A7422

PLUNGER - clutch detent

1шт.

36

A7032

SPRING

- plunger, clutch detent

1шт.

37

A7419

FORK - clutch

1шт.

38

A7416

SLEEVE - clutch sliding

1шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

40

A7398

HOUSING - drive

1шт.

41

A7410

SHAFT - outer, pulley

1шт.

42

A8669

BEARING - outer, pulley shaft

1шт.

43

A7146

OIL SEAL

SEAL - oil, outer shaft

1шт.

44

A7415

GASKET - end cap

1шт.

45

A7414

CAP - end, drive housing

1шт.

46

A7413

SLEEVE - outer shaft

1шт.

47

A7427

PULLEY - belt

1шт.

48

A26737

WASHER - lock, outer shaft

1шт.

49

25-1516

NUT,Jam, 1"-14, G5

- pulley, 1" N.F. hex, jam

1шт.

Выбрано товаров: 49
