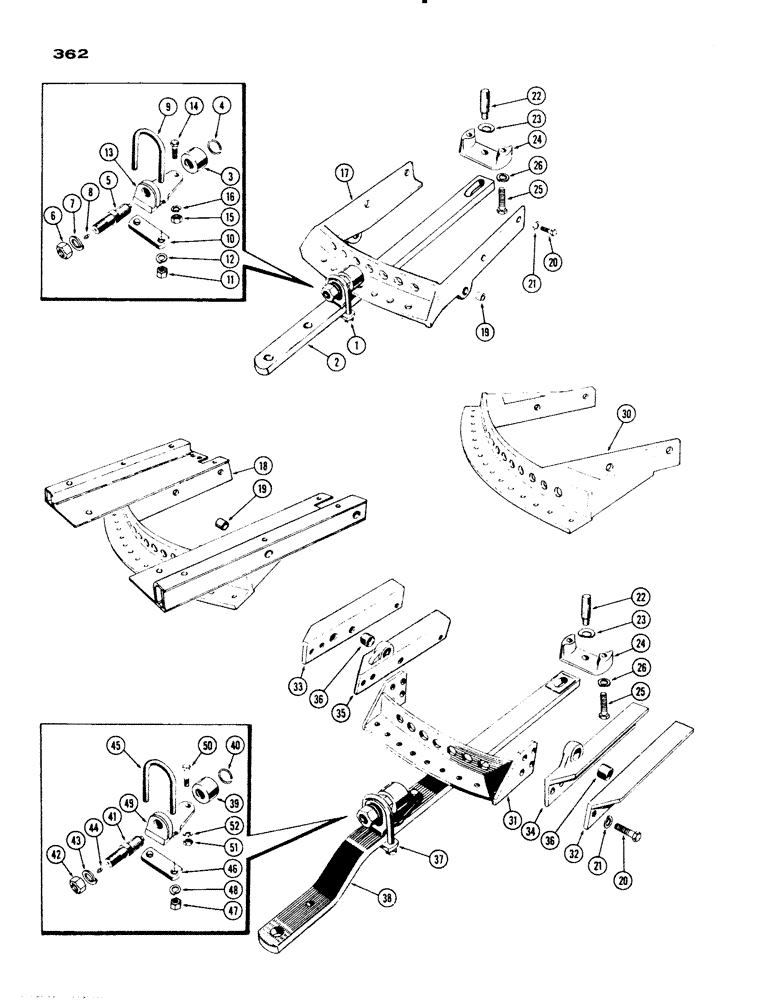

Запчасти Case IH 830-SERIES (362) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

A23450

DRAWBAR ASSY. - (incl. ref. 2 - 16), Start Serial: 8191681

1шт.

1

A8854

DRAWBAR ASSY. - (Grove Tractor) (incl. ref. 2 - 16)

1шт.

2

A23447

DRAWBAR - straight, Start Serial: 8191681

1шт.

2

A8848

DRAWBAR - straight (Grove Tractor)

1шт.

3

A27010

ROLLER

- drawbar

1шт.

4

A27012

RING

- snap, roller

1шт.

5

A27011

BOLT

- roller

1шт.

6

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

1шт.

7

92-18

LOCK WASHER,1 1/8"

WASHER, LOCK, 1-1/8"

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" std.

1шт.

9

A20930

U-BOLT

"U" BOLT - guide bracket

1шт.

10

A27774

STRAP

- "U" bolt

1шт.

11

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A24159

BRACKET

- guide

1шт.

14

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.F. hex

1шт.

15

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

A23446

SUPPORT ASSY. - drawbar (std. 4 wheel), Start Serial: 8191681

1шт.

17

A23439

SUPPORT ASSY. - drawbar (Gen. Purp. & Hi Cl.), Start Serial: 8191681

1шт.

18

A23213

SUPPORT ASSY. - drawbar (Grove Tractor) (incl. ref. 19)

1шт.

19

A9176

BUSHING

- pivot, E.H. draft arm

2шт.

20

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Std. 4 whl.) Hex, 3/4"-10 x 1 3/4", G5

4шт.

20

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(Gen. Purp.) Hex, 3/4"-10 x 2 1/2", G5

4шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

A28297

PIN

- pivot, drawbar

1шт.

23

A28299

WASHER - spring, pivot pin

1шт.

24

A28298

BRACKET - pivot, drawbar

1шт.

25

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

30

A21181

SUPPORT ASSY. - drawbar (Western Spec.)

1шт.

31

A28750

ANGLE - guide, drawbar

1шт.

32

A9196

SUPPORT - R.H. (Std. 4 whl.) (incl. ref. 36 - 52), Serial Range: -8191681

1шт.

33

A9197

SUPPORT - L.H. (Std 4 whl.) (incl. ref. 36 - 52), Serial Range: -8191681

1шт.

34

A9190

SUPPORT - R.H. (Gen. Purp.) (incl. ref. 36 - 52), Serial Range: -8191681

1шт.

35

A9191

SUPPORT - L.H. (Gen. Purp.) (incl. ref. 36 - 52), Serial Range: -8191681

1шт.

36

A9176

BUSHING

- pivot, E.H. draft arm

1шт.

37

A20932

DRAWBAR

ASSY. - (w/540 RPM-PTO), Serial Range: -8191681

1шт.

37

A21816

DRAWBAR ASSY. - (w/1000 RPM, PTO), Serial Range: -8191681

1шт.

38

A20931

DRAWBAR

- (46" lg. w/540 RPM-PTO)

1шт.

38

A21527

DRAWBAR - (48" lg. w/1000 RPM-PTO)

1шт.

39

A27010

ROLLER

- drawbar

1шт.

40

A27012

RING

- snap, roller

1шт.

41

A27011

BOLT

- roller

1шт.

42

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

1шт.

43

92-18

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

45

A20930

U-BOLT

"U" BOLT - guide bracket

1шт.

46

A27774

STRAP

- "U" bolt

1шт.

47

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

49

A7941

BRACKET

- guide

1шт.

50

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.F. hex

1шт.

51

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

52

92-8

LOCK WASHER,1/2"

1шт.
