Запчасти Case IH 830-SERIES (352) - ROCKSHAFT, LIFT ARMS AND CYLINDER, EAGLE HITCH (08) - HYDRAULICS

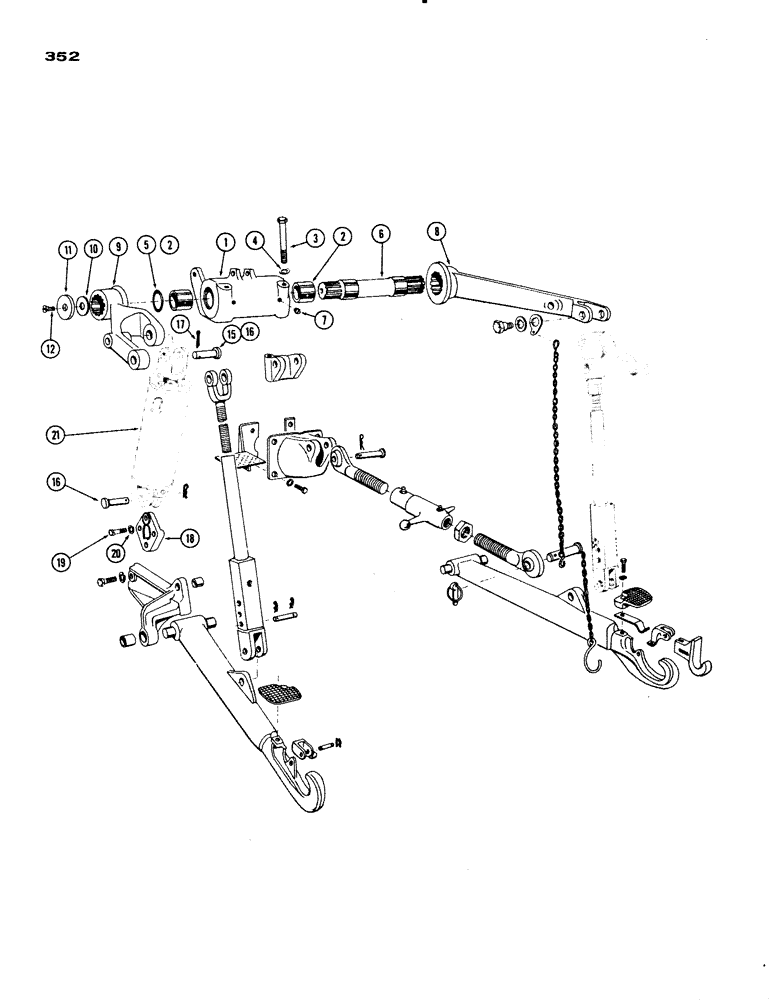

Схема запчастей Case IH 830-SERIES - (352) - ROCKSHAFT, LIFT ARMS AND CYLINDER, EAGLE HITCH (08) - HYDRAULICS
9
2
5
19
3
15
8
16
6
11
17
10
18
21
4
16
7
1
12
2
20

Артикул

Название

Примечание

Количество

1

A23420

HOUSING ASSY. - rockshaft (Order A23423 also) (incl. ref. 2), Serial Range: -8191681

1шт.

2

A23422

BUSHING

- rockshaft

2шт.

3

113-616

BOLT

- 5/8 x 4-1/4" N.C. hex (Gr. 8)

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

A23423

SEAL

- rockshaft (2-1/2" I.D.), Start Serial: 8191681

2шт.

5

A20908

SEAL - rockshaft (2-23/64" I.D.), Serial Range: -8191681

2шт.

6

A23419

ROCKSHAFT - lift arm

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

8

A23424

ARM - lift, R.H. (Order A23425 also), Serial Range: -8191681

1шт.

9

A23425

ARM - lift, L.H., Start Serial: 8191681

1шт.

9

A28277

ARM - lift, L.H., Serial Range: -8191681

1шт.

10

A27678

SHIM - adjusting, rockshaft

1шт.

11

A27679

PLATE - lock, lift arm

2шт.

12

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- mach., 3/8 x 1" N.C. flat hd.

2шт.

15

A23426

PIN

- mounting, cylinder (3-1/4" long) (Upper only), Start Serial: 8191681

1шт.

16

A27344

PIN - mounting, cylinder (2-7/8" long) (Upper & lower), Serial Range: -8191681

2шт.

17

132-150

COTTER PIN,1/4" x 1 1/2"

PIN, split (Cotter), 1/4" x 1-1/2"

2шт.

18

A23427

ANCHOR - hyd. cylinder (Gen. Purp. & Std. 4 wheel), Start Serial: 8191681

1шт.

18

A23428

ANCHOR - hyd. cylinder (High Clearance), Start Serial: 8191681

1шт.

18

A26369

ANCHOR - hyd. cylinder (Gen. Purp. & Std. 4 wheel), Serial Range: -8191681

1шт.

18

A9173

ANCHOR - hyd. cylinder (High Clearance), Serial Range: -8191681

1шт.

19

113-610

X

BOLT - 5/8 x 2" N.C. hex (Gr. 8)

2шт.

19

113-634

BOLT

- 5/8 x 2-3/4"N.C. hex (Gr. 8)

1шт.

19

A20270

BOLT - special (w/Std. 4 wheel)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

21

A23530

CYLINDER

ASSY. - 4 x 7" hydraulic (Gen. Pump & Hi-Cl.), Start Serial: 8191681

1шт.

Repairs for all cylinders on Figure 360.

1шт.

21

A23566

CYLINDER

ASSY. - 4" x 7" hydraulic (Std. 4 wheel), Start Serial: 8191681

1шт.

Repairs for all cylinders on Figure 360.

1шт.

21

A11231

CYLINDER

ASSY. - 4" x 6" hydraulic (all models), Serial Range: -8191681

1шт.

Repairs for all cylinders on Figure 360.

1шт.

Выбрано товаров: 31
