(350) - A34923 HYDRAULIC CYLINDER, 4 X 8, WITH HYDRAULIC LIMIT STOP

Запчасти Case IH 830-SERIES (350) - A34923 HYDRAULIC CYLINDER, 4 X 8, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

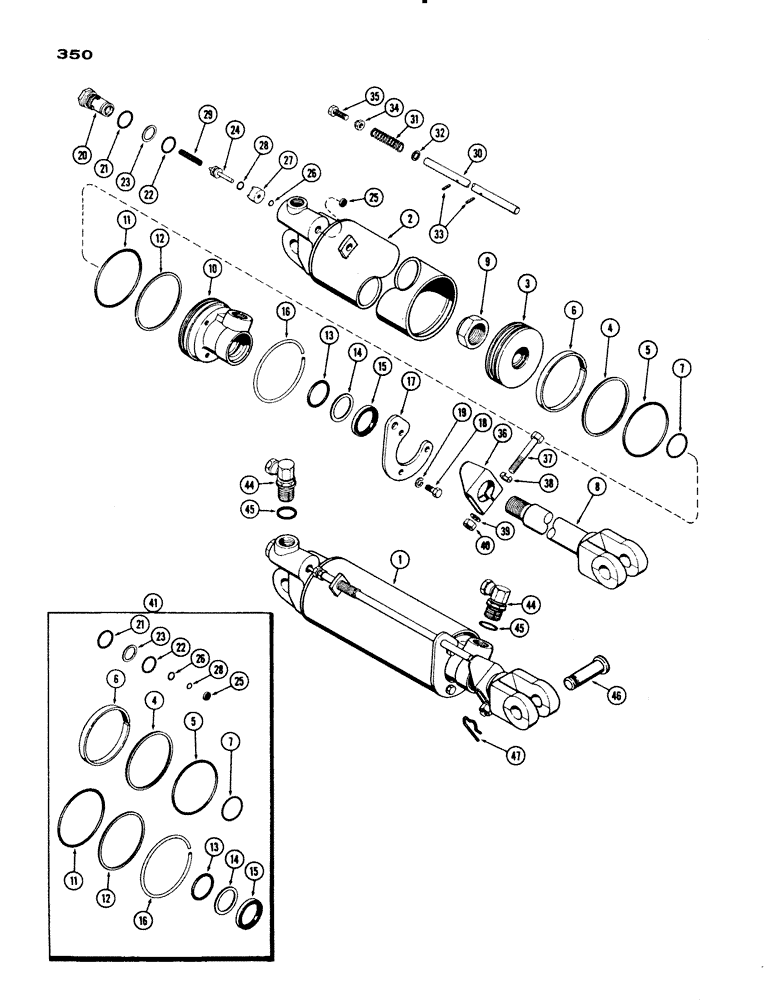

Схема запчастей Case IH 830-SERIES - (350) - A34923 HYDRAULIC CYLINDER, 4 X 8, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS
26
46
22
30
39
5
29
23
2
25
13
27
16
32
8
35
44
26
7
9
38
34
40
36
45
6
12
21
16
1
13
3
12
4
6
14
15
28
10
7
5
15
45
17
19
4
47
33
41
37
24
28
25
21
11
44
23
14
18
20
22
31
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A34923

CYLINDER ASSY. - hydraulic (incl. ref. 2 - 40)

1шт.

2

A41354

BODY - cylinder

1шт.

3

A41357

PISTON - cylinder

1шт.

4

A41169

SEAL

RING - outer, piston (See ref. 41)

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - outer, piston (3-5/8" I.D.) (See ref. 41)

1шт.

6

A41174

RING

- wear piston (See ref. 41)

1шт.

7

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - inner, piston (1-1/2" I.D.) (See ref. 41)

1шт.

8

A41151

ROD - piston

1шт.

9

A41168

LOCK NUT

NUT - piston rod (1-1/8" N.F. lock type)

1шт.

10

A41148

BEARING

- cylinder

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - outer, bearing (3-3/4" I.D.) (See ref. 41)

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- back-up (See ref. 41)

1шт.

13

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING - inner bearing (1-1/2" I.D.) (See ref. 41)

1шт.

14

T31052

RING

- back-up (See ref. 41) Replaces A41164

1шт.

15

A41173

SEAL

- oil, bearing (See ref. 41)

1шт.

16

A41171

RING, LOCKING

RING - lock, bearing (See ref. 41)

1шт.

17

A41158

PLATE - end, cylinder

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

19

92-5

LOCK WASHER,5/16"

3шт.

20

A41351

PLUG - valve plunger

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug (7/8" I.D.) (See ref. 41)

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - plug (11/16" I.D.) (See ref. 41)

1шт.

23

A41346

RING

- back-up (See ref. 41)

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

- valve plunger (See ref. 41)

1шт.

26

A41160

INSERT

"O" RING - valve (23/64" I.D.) (See ref. 41)

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41147

X

"O" RING - plunger (3/16" I.D.) (See ref. 41)

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - adjusting screw (5/16" N.C. Gripco)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Adjusting Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41149

CLAMP

STOP - clamp, cylinder limit

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

- clamp, 3/8 x 2-3/4" N.F. hex

1шт.

38

A41352

LOCK WASHER

LOCK - clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41167

LOCK NUT

NUT - clamp bolt (3/8" N.F. lock type)

1шт.

41

A41350

SEAL

REPAIR KIT - cylinder (incl. ref. 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 21, 22, 23, 25, 26 and 28)

1шт.

44

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 deg. adapter, hyd, hose (incl. ref. 45)

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow

1шт.

46

A27347

PIN

- mounting

2шт.

47

A29054

HAIR PIN COTTER

- cotter, mounting pin

2шт.
