Запчасти Case IH 830-SERIES (022) - AIR CLEANER AND PRE CLEANERS, 267 AND 301 DIESEL ENG, EXCEPT GROVE, AIR CLEANER 267 DIESEL, GROVE (02) - ENGINE

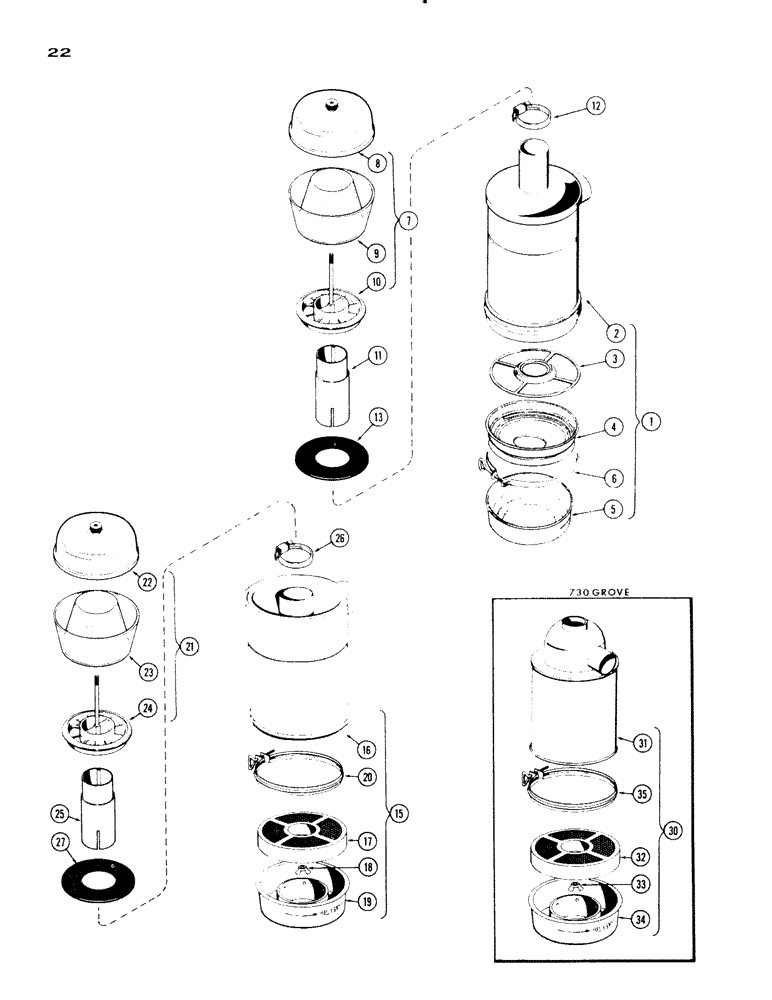

Схема запчастей Case IH 830-SERIES - (022) - AIR CLEANER AND PRE CLEANERS, 267 AND 301 DIESEL ENG, EXCEPT GROVE, AIR CLEANER 267 DIESEL, GROVE (02) - ENGINE
5
8
11
12
1
2
17
30
4
20
25
22
24
13
6
33
3
19
21
35
23
7
16
34
9
27
10
31
26
32
15
18

Артикул

Название

Примечание

Количество

1

A24568

AIR CLEANER (w/4" stack) (incl. ref. 2 - 6)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY (Order A24568)

1шт.

3

A24178

SCREEN

1шт.

4

A24179

CUP - oil, inner

1шт.

5

A24570

X

CUP - oil, outer

1шт.

6

A30865

CLAMP

ASSY. - oil cup

1шт.

7

A64589

PRECLEANER

PRE-CLEANER ASSY. (incl. ref. 8 - 10)

1шт.

8

73187

COVER

ASSY. - (includes nut)

1шт.

9

73186

HOUSING

BODY - plastic

1шт.

10

NSS

NOT SOLD SEPARAT

BASE (Order 73184)

1шт.

11

A24392

EXTENSION

- pre-cleaner (2-1/2" O.D. x 6")

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension

1шт.

13

A24393

SHIELD

- extension

1шт.

15

A24464

AIR CLEANER (w/no stack) Order A24468 (incl. ref. 16 - 20)

1шт.

16

NSS

NOT SOLD SEPARAT

BODY (Order A24568)

1шт.

17

A22194

ELEMENT

SCREEN

1шт.

18

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

1шт.

19

A22193

CUP - oil

1шт.

20

A30865

CLAMP

ASSY. - oil cup

1шт.

21

A64589

PRECLEANER

PRE-CLEANER ASSY. (incl. ref. 22 - 24)

1шт.

22

73187

COVER

ASSY. - (includes nut)

1шт.

23

NLS

NO LONGER SERVICED

BODY - plastic

1шт.

24

NSS

NOT SOLD SEPARAT

BASE (Order 73184)

1шт.

25

A24392

EXTENSION

- pre-cleaner (2-1/2" I.D. x 6")

1шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension

1шт.

27

A24393

SHIELD

- extension

1шт.

30

A21432

CLEANER

AIR CLEANER - complete, (267) diesel, Grove (incl. ref. 31 - 35)

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - (Order A21432), air cleaner, (267) diesel, Grove

1шт.

32

A22194

ELEMENT

SCREEN, air cleaner, (267) diesel, Grove

1шт.

33

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C., air cleaner, (267) diesel, Grove

1шт.

34

A22193

CUP - oil, air cleaner, (267) diesel, Grove

1шт.

35

A30865

CLAMP

- oil cup, air cleaner, (267) diesel, Grove

1шт.

Выбрано товаров: 32
