(346) - A28495 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH MECHANICAL LIMIT STOP

Запчасти Case IH 830-SERIES (346) - A28495 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH MECHANICAL LIMIT STOP (08) - HYDRAULICS

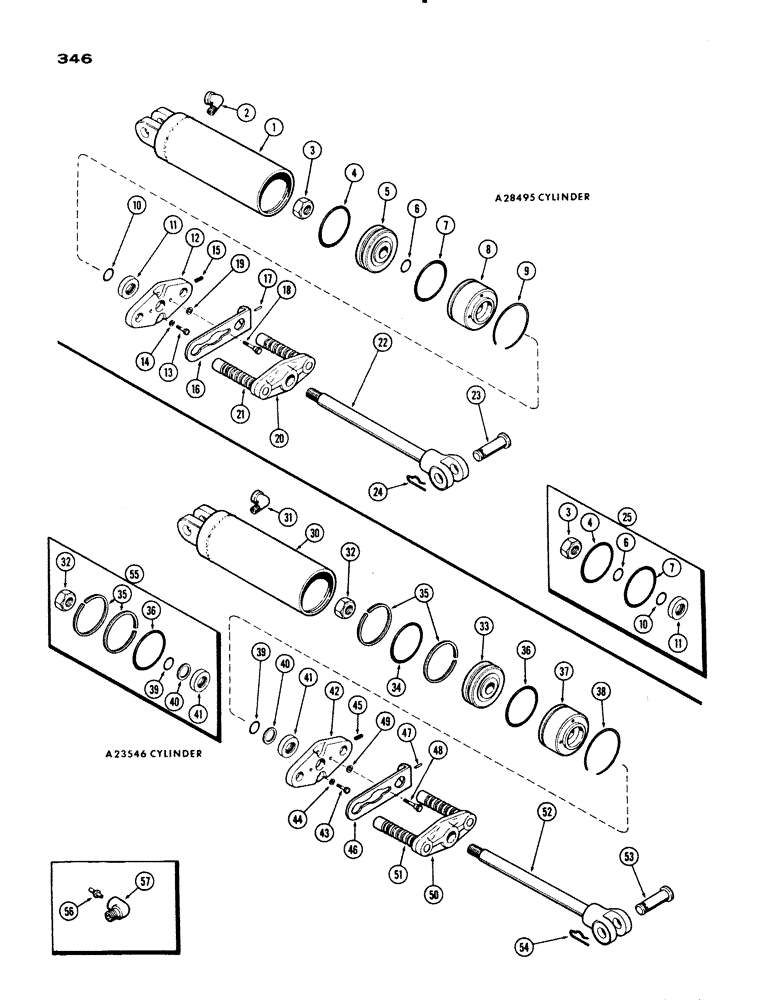

Схема запчастей Case IH 830-SERIES - (346) - A28495 HYDRAULIC CYLINDER, 3-1/4 X 8, WITH MECHANICAL LIMIT STOP (08) - HYDRAULICS
38
13
34
47
51
10
48
32
41
21
35
17
36
50
36
31
15
24
2
6
4
39
52
54
8
44
7
30
33
1
43
11
46
3
3
19
37
12
4
10
5
20
11
16
35
55
23
49
40
56
22
39
25
41
18
53
40
14
7
45
42
57
9
6
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A28495

CYLINDER ASSY. (Order A23557 Figure 344) (incl. ref. 1 - 22)

1шт.

1

A31162

CYLINDER & HEAD ASSY.

1шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hose, 1/2" P.T. 90 deg. (See ref. 56)

2шт.

3

131-369

LOCK NUT,7/8"-14, GA

NUT - piston rod (7/8" N.F. self locking)

1шт.

4

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston (2-7/8" I.D.)

1шт.

5

6243A

PISTON - cylinder

1шт.

6

A30894

COPPER WASHER

GASKET - piston rod

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - inner head

1шт.

8

6187A

HEAD - inner, cylinder

1шт.

9

A31158

RING, SNAP

RING - snap, cyl. head

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - piston rod (1-1/8" I.D.)

1шт.

11

A26758

OIL SEAL

SEAL - oil, piston rod

1шт.

12

A27345

GUIDE - limit stop pin

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A27421

SPRING

- limit stop latch

1шт.

16

A31156

LATCH

ASSY. - limit stop (incl. ref. 17)

1шт.

17

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

18

A31157

SCREW,5/16" - 18 x 1 3/4"

- stop latch

2шт.

19

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

20

A31154

STOP ASSY. - piston limit (incl. ref. 21)

1шт.

21

A31155

PIN - limit stop

2шт.

22

A30972

ROD - piston

1шт.

23

A27347

PIN

- cylinder yoke

2шт.

24

A29054

HAIR PIN COTTER

- cotter, yoke pin

2шт.

25

A24414

KIT

REPAIR KIT - cyl. (incl. ref. 3, 4, 6, 7, 10 and 11)

1шт.

A23546

CYLINDER

ASSY. - hydraulic, A23546, 4 x 8

1шт.

30

A31166

CYLINDER & HEAD ASSY., A23546 hydraulic, 4 x 8

1шт.

31

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hose, 1/2" P.T. 90 deg. (See ref. 56), A23546 hydraulic cylinder, 4 x 8

2шт.

32

131-369

LOCK NUT,7/8"-14, GA

NUT - piston rod (7/8" N.F. self locking), A23546 hydraulic cylinder, 4 x 8

1шт.

33

A23534

PISTON - cylinder, A23546 hydraulic, 4 x 8

1шт.

34

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston, A23546 hydraulic cylinder, 4 x 8

1шт.

35

A23535

OIL SEAL

RING - back-up, piston guide, A23546 hydraulic cylinder, 4 x 8

2шт.

36

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - inner head, cylinder, A23546 hydraulic, 4 x 8

1шт.

37

A23554

HEAD - inner, cylinder, A23546 hydraulic, 4 x 8

1шт.

38

A30896

RING

- snap, inner head, A23546 hydraulic cylinder, 4 x 8

1шт.

39

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - piston rod, A23546 hydraulic cylinder, 4 x 8

1шт.

40

A23553

RING

- back-up, piston rod, A23546 hydraulic cylinder, 4 x 8

1шт.

41

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod, A23546 hydraulic cylinder, 4 x 8

1шт.

42

A27345

GUIDE - limit stop pin, A23546 hydraulic cylinder, 4 x 8

1шт.

43

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex, A23546 hydraulic cylinder, 4 x 8

2шт.

44

92-5

LOCK WASHER,5/16"

A23546 hydraulic cylinder, 4 x 8 5/16"

2шт.

45

A27421

SPRING

- limit stop latch, A23546 hydraulic cylinder, 4 x 8

1шт.

46

A31156

LATCH

ASSY. - limit stop, A23546 hydraulic cylinder, 4 x 8 (incl. ref. 47)

1шт.

47

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , A23546 hydraulic cylinder, 4 x 8 1/4" x 5/8", Slotted

1шт.

48

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch, A23546 hydraulic cylinder, 4 x 8

2шт.

49

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , A23546 hydraulic cylinder, 4 x 8 Int Tooth, 5/16"

2шт.

50

A31154

STOP ASSY. - piston limit, A23546 hydraulic cylinder, 4 x 8 (incl. ref. 51)

1шт.

51

A31155

PIN - limit stop, A23546 hydraulic cylinder, 4 x 8

2шт.

52

A30972

ROD - piston, A23546 hydraulic cylinder, 4 x 8

1шт.

53

A27347

PIN

- cylinder yoke, A23546 hydraulic, 4 x 8

2шт.

54

A29054

HAIR PIN COTTER

- cotter, yoke pin, A23546 hydraulic cylinder, 4 x 8

2шт.

55

A40759

SEAL,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

REPAIR KIT - cyl. (incl. ref. 32, 34, 35, 36, 39, 40 and 41), A23546 hydraulic, 4 x 8

1шт.

56

A57367

VALVE

REGULATOR ASSY. - lowering speed, A23546 hydraulic cylinder, 4 x 8 (incl. ref. 57)

1шт.

Can be used to replace front elbow to help regulate lowering speed with heavy implements.

1шт.

57

A57369

SPOOL

POPPET - regulator, A23546 hydraulic cylinder, 4 x 8

1шт.
