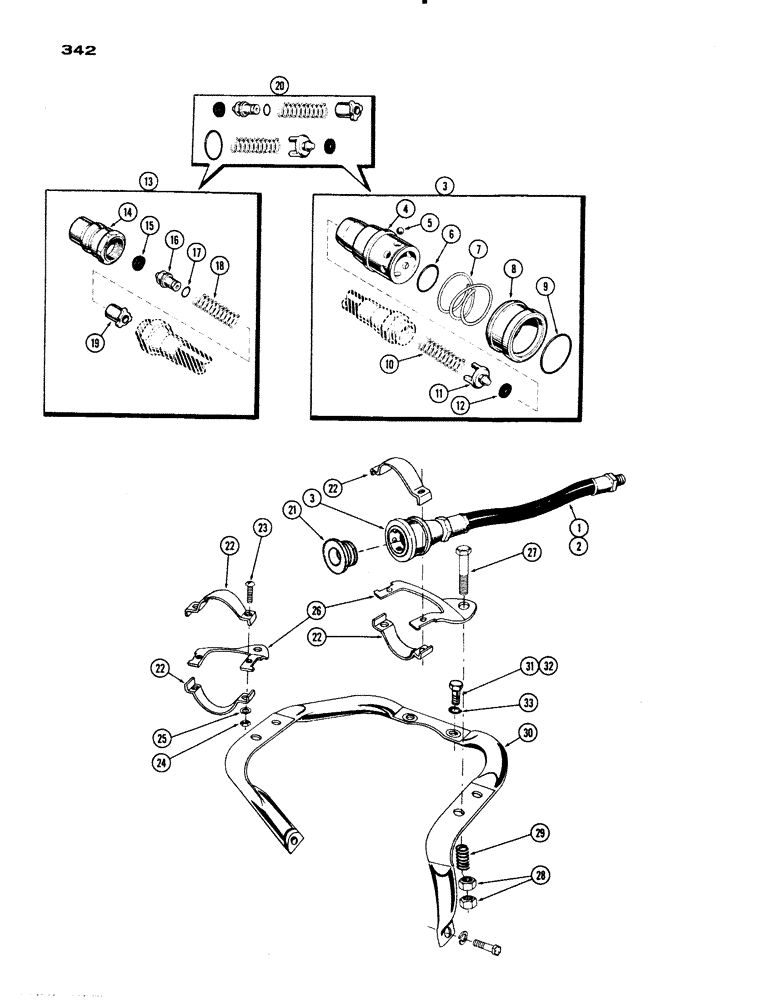

Запчасти Case IH 830-SERIES (342) - REMOTE HYDRAULIC HOSES AND COUPLINGS, TRACTOR END (08) - HYDRAULICS

1

A7784

HOSE ASSY.

HOSE - upper valve to coupling (12-3/4")

2шт.

2

A27447

HOSE

- lower valve to coupling (14-1/2")

2шт.

3

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - female, hyd. hose (incl. ref. 4 - 12)

4шт.

4

A27349

BODY

- coupling

1шт.

5

211-7

BALL,1/4" Dia

- swivel 1/4" Dia

8шт.

6

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - body (7/8 x 1-1/8")

1шт.

7

A27354

SPRING

- tension

1шт.

8

A27353

SLEEVE

SLEEVE - lock and release

1шт.

9

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve

1шт.

10

A11324

SPRING

- piston

1шт.

11

A26215

PISTON

1шт.

12

A33964

SEAL

- piston

1шт.

13

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male, hyd. hose (incl. ref. 14 - 19)

4шт.

14

A27356

PIPE FITTING

BODY - coupling

1шт.

15

A33964

SEAL

- piston

1шт.

16

A27508

PISTON

- coupling

1шт.

17

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve (1/4 x 3/8")

1шт.

18

A27351

SPRING

- piston

1шт.

19

A9631ASY

SPARE PART

- piston

1шт.

20

A40459

KIT

REPAIR KIT - coupling (incl. ref. 4, 10, 11, 12, 15, 16, 17, 18 and 19)

1шт.

21

A22768

PLUG

- dust, coupling socket

4шт.

22

A27423

CLAMP

- coupling, hyd. hose

4шт.

23

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- mach., #8-32 x 5/8" rd. hd.

4шт.

24

129-6

NUT,#8-32

4шт.

25

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

26

A27360

BRACKET

- clamp mounting

2шт.

27

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex

2шт.

28

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

2шт.

29

A26546

SPRING

- mounting bracket

2шт.

30

A23478

SUPPORT - hyd. hose coupling

1шт.

31

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex (Hi Clearance)

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.
