Запчасти Case IH 830-SERIES (324) - HYDRAULIC VALVE CONTROLS (08) - HYDRAULICS

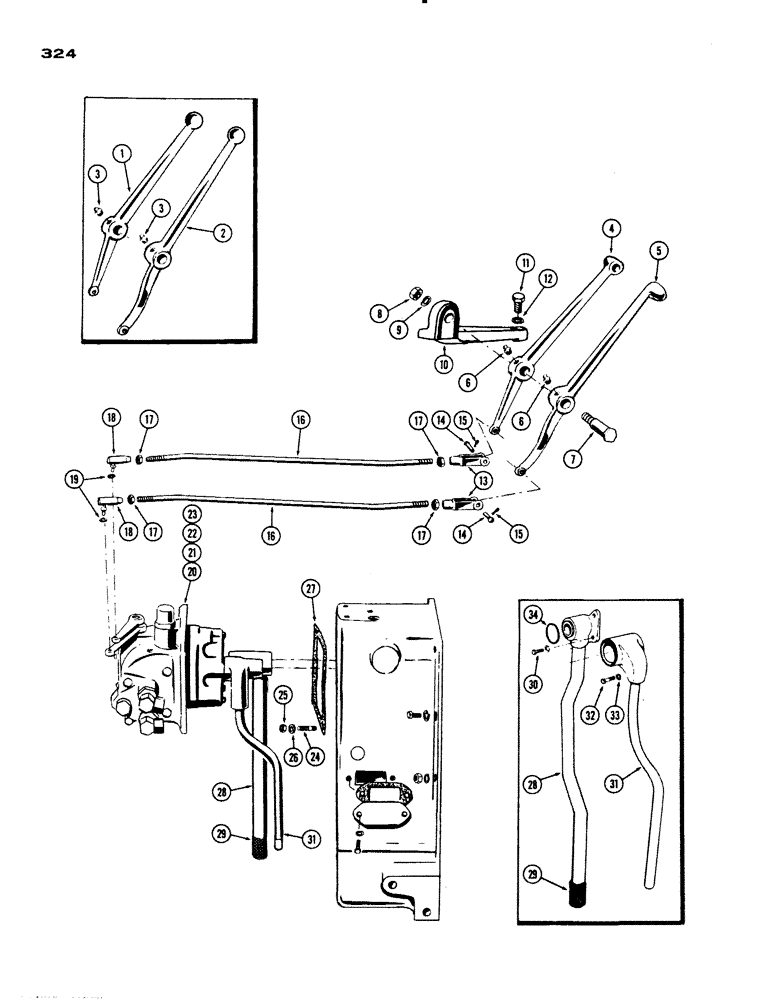

Схема запчастей Case IH 830-SERIES - (324) - HYDRAULIC VALVE CONTROLS (08) - HYDRAULICS
17
19
25
18
8
34
29
17
33
5
6
16
23
4
17
3
10
17
22
32
31
2
13
6
28
11
1
9
30
16
29
15
31
27
18
28
14
14
26
20
3
15
7
21
24
12

Артикул

Название

Примечание

Количество

1

A10710

LEVER - inner (Order A23628 and A23629 when depleted)

1шт.

2

A10711

LEVER - outer (Order A23628 and A23629 when depleted)

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

4

A23628

LEVER - inner, hyd. valve control

1шт.

5

A23629

LEVER - outer, hyd. valve control

1шт.

6

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4" str. drive

2шт.

7

A7604

STUD - pivot, hand lever

1шт.

8

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex

1шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

A20167

BRACKET - hand lever

1шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - control rod to lever

2шт.

14

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

16

A10714

ROD - control

2шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex

4шт.

18

A27382

BALL

JOINT - ball, control rod

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

A23351

PUMP & VALVE ASSY. - hydraulic (Tractors w/Eagle Hitch. Has pilot relief valve & wear plate type pump. Repairs Figure 326), Start Serial: 8191681

1шт.

21

A23383

PUMP, HYDRAULIC

PUMP & VALVE ASSY. - hydraulic (Tractors less Eagle Hitch. Has pilot relief valve & wear plate type pump. Repairs Figure 330), Start Serial: 8191681

1шт.

22

A10842

PUMP & VALVE ASSY. - hydraulic (Tractors w/Eagle Hitch. Order A23351. Repairs Figure 334), Serial Range: -8191681

1шт.

23

A10905

PUMP & VALVE ASSY. - hydraulic (Tractors less Eagle Hitch. Repairs Figure 338) Can use A23383, Serial Range: -8191681

1шт.

24

A29322

STUD - pump mounting (1/2 x 2")

4шт.

25

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

A27368

GASKET

-, Serial Range: pump-housing

1шт.

28

A28730

TUBE ASSY. - pump intake (incl. ref. 29)

1шт.

29

A23600

NO LONGER SERVICED

SCREEN - intake tube, Serial Range: (solder-tube)

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

A28731

TUBE - pump outlet

1шт.

32

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

A28264

GASKET

-, Serial Range: tube-pump

2шт.

Выбрано товаров: 34
