Запчасти Case IH 830-SERIES (020) - AIR CLEANER, MANIFOLD, 267 DIESEL ENGINE, GROVE (02) - ENGINE

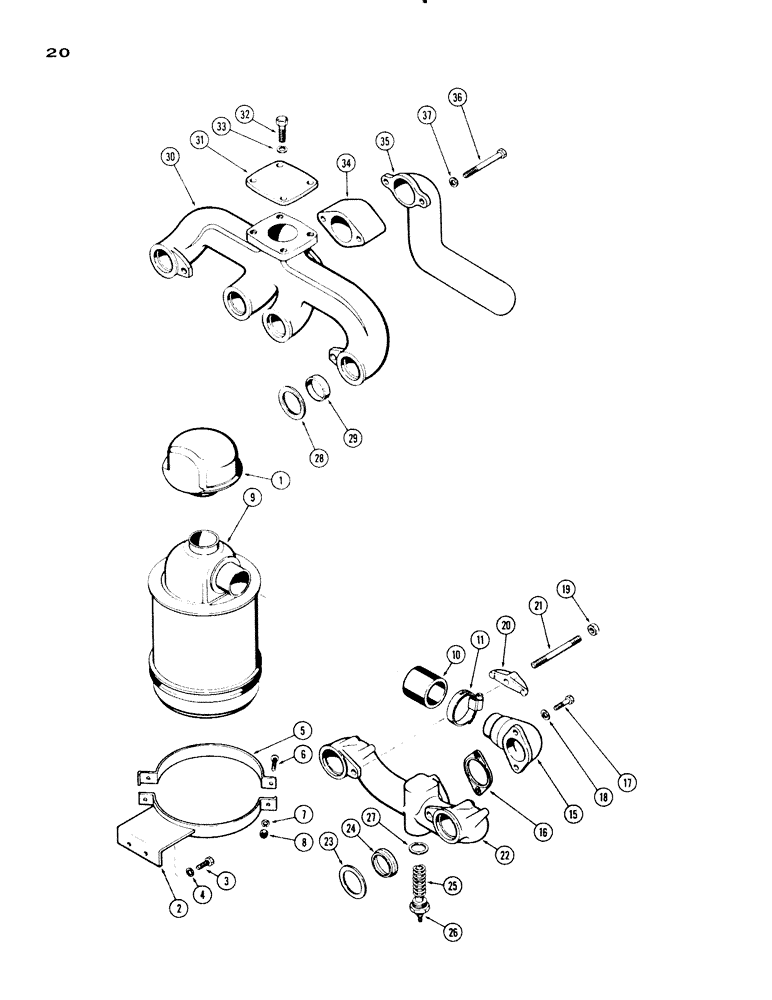

Схема запчастей Case IH 830-SERIES - (020) - AIR CLEANER, MANIFOLD, 267 DIESEL ENGINE, GROVE (02) - ENGINE
30
28
25
18
1
20
10
17
2
27
8
22
29
34
32
15
31
37
23
5
21
24
26
19
4
9
11
7
16
6
3
33
36
35

Артикул

Название

Примечание

Количество

1

A21433

CAP

PRE-SCREENER - air cleaner

1шт.

2

A11830

SUPPORT - air cleaner

2шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

A27913

STRAP - mounting, air cleaner

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

9

A21432

CLEANER

AIR CLEANER - (Repairs Figure 22)

1шт.

10

A21828

HOSE

-, Serial Range: cleaner-manifold

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

15

A21007

ELBOW - intake, manifold

1шт.

16

A21055

MANIFOLD GASKET

- intake elbow, manifold

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Manifold Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

manifold 3/8"

2шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, manifold

4шт.

20

A24368

CLAMP

- manifold

4шт.

21

A27911

STUD

- manifold clamp

4шт.

22

A21005

MANIFOLD - intake

1шт.

23

A11888

MANIFOLD GASKET

- intake manifold

2шт.

24

A21383

CAP

FERRULE - intake manifold

2шт.

25

A37775

HEATER

- intake manifold (Replaces A24396)

1шт.

26

129-503

NUT,1/4"-20, Brass

Manifold 1/4"-20, Brass

1шт.

27

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

28

A11889

GASKET

- exhaust manifold

4шт.

29

A21648

CAP

FERRULE - exhaust manifold

4шт.

30

A20385

MANIFOLD - exhaust

1шт.

31

A20387

COVER - exhaust opening, manifold

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Manifold Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

33

92-8

LOCK WASHER,1/2"

manifold 1/2"

4шт.

34

A23220

EXTENSION - exhaust, manifold

1шт.

35

A10222

ELBOW - exhaust, manifold

1шт.

36

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Manifold Hex, 1/2"-13 x 3 3/4", G5

2шт.

37

92-8

LOCK WASHER,1/2"

manifold 1/2"

2шт.

Выбрано товаров: 34
