Запчасти Case IH 830-SERIES (322) - P.T.O AND HYDRAULIC PUMP HOUSING (06) - POWER TRAIN

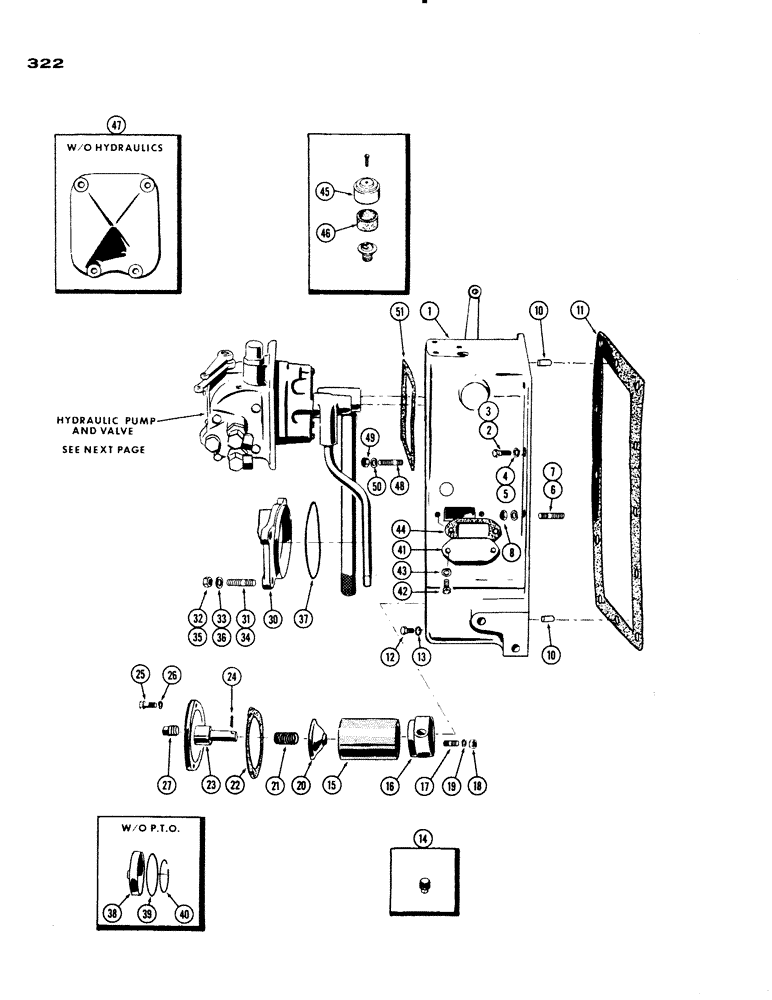

Схема запчастей Case IH 830-SERIES - (322) - P.T.O AND HYDRAULIC PUMP HOUSING (06) - POWER TRAIN
48
10
46
13
25
51
19
49
2
16
20
3
45
5
10
34
31
12
47
27
22
4
39
7
41
43
37
11
36
8
1
32
23
17
50
44
42
14
24
40
38
30
26
18
21
35
6
33
15

Артикул

Название

Примечание

Количество

1

A21258

HOUSING - P.T.O. & hyd. pump, Serial Range: -8173401

1шт.

1

A22954

HOUSING - P.T.O. & hyd. pump, Start Serial: 8173401

1шт.

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd. (R.H. side)

1шт.

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd. (L.H. side)

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

13-10136

CAPSCREW,Hex, 5/8" - 11 x 8 1/2", Gr 5

BOLT - 5/8 x 8-1/2" N.C. hex

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

6

A26687

STUD - housing (5/8 x 2-3/8")

2шт.

7

A28268

STUD - housing (5/8 x 9-3/8")

2шт.

8

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

10

A28269

PIN

- dowel, housing to trans. case

2шт.

11

A28267

GASKET

- housing to trans. case

1шт.

12

A14280

PLUG

- drain, Start Serial: 8173401

1шт.

13

A27927

OIL PAN GASKET SET

- drain plug, Start Serial: 8173401

1шт.

14

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - drain, 3/4" sq. hd., Serial Range: -8173401

1шт.

15

A27460

FILTER CARTRIDGE

FILTER - oil, hydraulic pump

1шт.

16

A26363

ELBOW - filter

1шт.

17

A26416

STUD - filter elbow (3/8 x 1-1/2")

1шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

A27666

RETAINER

- filter

1шт.

21

A27379

SPRING

- filter retainer

1шт.

22

A28265

GASKET

- filter cover

1шт.

23

A28732

COVER

- filter (includes tube)

1шт.

24

132-29

SPLIT PIN

PIN - cotter, 3/32 x 1-1/8"

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

30

A26365

COVER - P.T.O. opening (w/no P.T.O.)

1шт.

31

A27637

STUD

- cover (1/2 x 2-13/16")

2шт.

32

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

33

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

34

A28257

STUD - cover (5/8 x 3")

2шт.

35

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

36

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

37

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - opening cover

1шт.

38

A21300

COVER - P.T.O. shaft opening, Serial Range: -8173401

1шт.

39

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - cover, Serial Range: -8173401

1шт.

40

A20287

RING - snap, cover, Serial Range: -8173401

1шт.

41

A9368

CAP - opening, P.T.O. adjusting

1шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

A9369

GASKET

- opening cap

1шт.

45

A9238

BREATHER

- oil (incl. ref. 46), Serial Range: -8173401

1шт.

46

A10059

FILTER, ELEMENT

ELEMENT - filter, breather

1шт.

47

A26231

COVER - opening, hyd. opening (w/no hydraulics)

1шт.

48

A29322

STUD - pump or cover (1/2 x 2")

4шт.

49

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

4шт.

50

92-8

LOCK WASHER,1/2"

4шт.

51

A27368

GASKET

- pump or cover

1шт.

Выбрано товаров: 52
