Запчасти Case IH 830-SERIES (314) - P.T.O CONTROL LINKAGE (06) - POWER TRAIN

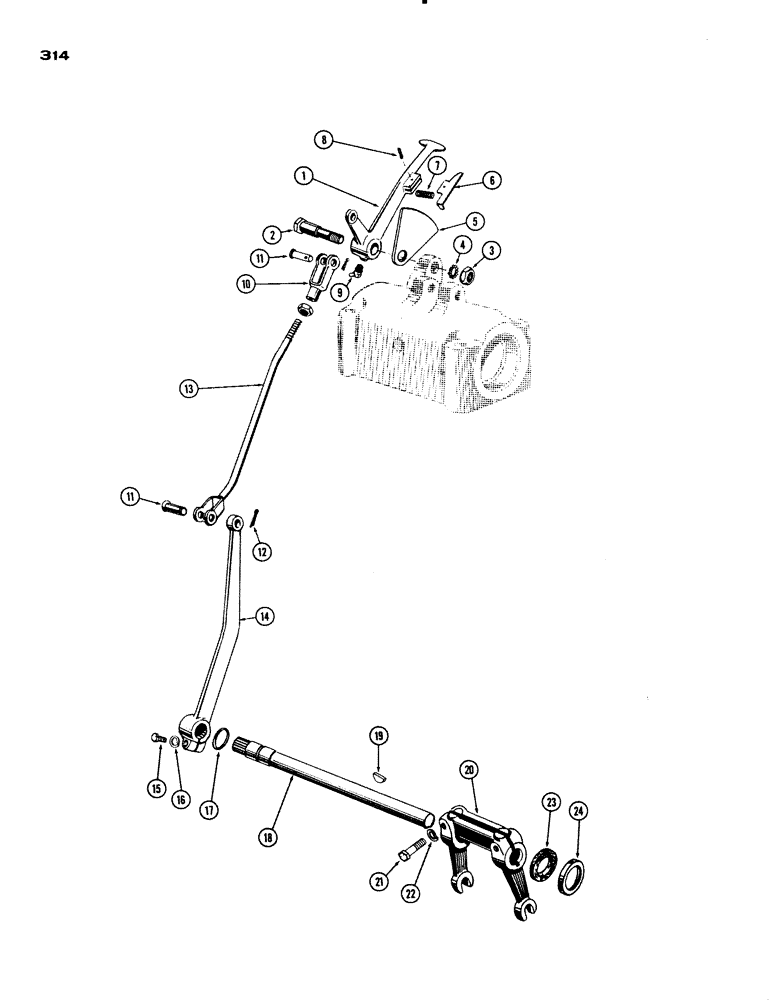

Схема запчастей Case IH 830-SERIES - (314) - P.T.O CONTROL LINKAGE (06) - POWER TRAIN
9
3
22
11
5
24
15
14
4
21
6
10
18
19
23
1
13
11
2
16
12
8
17
20
7

Артикул

Название

Примечание

Количество

1

A11113

LEVER - hand, P.T.O. control

1шт.

2

A7442

PIN - pivot, hand lever

1шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex

1шт.

4

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

1шт.

5

A11114

PLATE - lock, hand lever

1шт.

6

A11309

SELECTOR

LATCH - hand lever

1шт.

7

A8012

SPRING

- latch, hand lever

1шт.

8

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

10

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - control rod

1шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

A7443

ROD - control

1шт.

14

A11115

LEVER - cross shaft

1шт.

15

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - cross shaft

1шт.

18

A11116

SHAFT - cross, clutch control

1шт.

19

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Throwout yoke #9, 3/16" x 3/4"

2шт.

20

A26229

FORK

YOKE - clutch throwout

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

A27598

FELT

WASHER - felt, cross shaft

1шт.

24

A27599

RETAINER

- felt washer

1шт.

Выбрано товаров: 24
