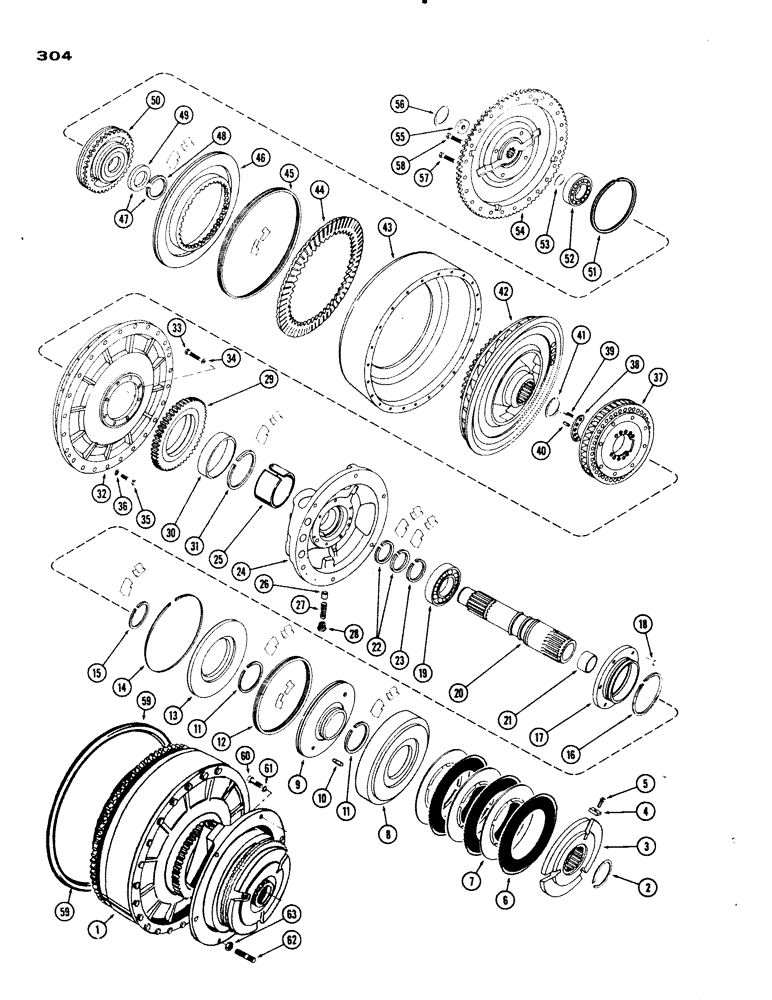

Запчасти Case IH 830-SERIES (304) - TORQUE CONVERTER, CASE-O-MATIC DRIVE (06) - POWER TRAIN

1

A22820

CONVERTER ASSY. - (when replacing converter also replace gasket ref. 59) (incl. ref. 1 - 42)

1шт.

2

A20193

RING

- snap, back plate

1шт.

3

A24562

PLATE

ASSY. - back, rear clutch (incl. ref. 4 & 5)

1шт.

4

A20243

KEY - lock

3шт.

5

A36382

SCREW

-, Serial Range: key-plate

3шт.

6

A22191

LARGE PLATE

PLATE - clutch (See A24729 Figure 308)

3шт.

7

A22190

X

PLATE - clutch (See A24728 Figure 308)

3шт.

8

NSS

NOT SOLD SEPARAT

PISTON - clutch (Order A24727 Figuer 308)

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER - piston (Order A24727 Figure 308)

1шт.

10

A41621

PIN - carrier (See A24727 Figure 308)

2шт.

11

A20228

RING

- seal, carrier hub (See A24727 Figure 308)

2шт.

12

A20225

RING

- seal, carrier (See A24727 Figure 308)

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - piston (Order A24727 Figure 308)

1шт.

14

A20223

RING, SNAP

RING - snap, plate retainer (See A24727 Figure 308)

1шт.

15

A23038

RING, SNAP

RING - snap, Serial Range: piston-sleeve

1шт.

16

A22905

GASKET

RING - seal, bearing retainer

1шт.

17

A22902

RETAINER - bearing

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

19

A20206

BALL BEARING

BEARING - rear

1шт.

20

A24730

SLEEVE

ASSY. - output

1шт.

21

A22909

BEARING

BUSHING - pilot, P.T.O. shaft

1шт.

22

A20229

RING

- seal

2шт.

23

A20222

RING, SNAP

RING - snap, bearing

1шт.

24

A22900

CARRIER - stator

1шт.

25

A20238

SLEEVE - split, carrier

1шт.

26

A20195

PLUNGER

- relief valve

1шт.

27

A22908

SPRING

- relief valve (yellow)

1шт.

28

A20196

GASKET

CAP - relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR - pump drive (Order A24726 Figure 308)

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - drive gear (Order A24726 Figure 308)

1шт.

31

A20231

RING

- seal, drive gear

1шт.

32

A20203

IMPELLER

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Impeller to carrier Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

34

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

8шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Impeller to housing Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

36

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

24шт.

37

A20205

STATOR

1шт.

38

D32010

PLATE

- lock

2шт.

39

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - cap, 5/16 x 3/4" N.C. socket hd.

4шт.

40

138-151

LOCK PIN,5/16" x 7/8", Slotted

PIN, 5/16" x 7/8", Slotted

2шт.

41

A22889

RING

- snap, turbine

1шт.

42

A20204

TURBINE

1шт.

43

A20215

HOUSING - rotating

1шт.

44

NSS

NOT SOLD SEPARAT

PLATE - clutch (Order A40099 Figure 308)

1шт.

45

NSS

NOT SOLD SEPARAT

RING - seal (Order A40030 Figure 308)

1шт.

46

A20218

PISTON - clutch, front

1шт.

47

A24725

CARRIER

ASSY. - oil seal

1шт.

48

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

49

NSS

NOT SOLD SEPARAT

CARRIER - seal ring

1шт.

50

A20212

CARRIER - bearing, front

1шт.

51

A20227

RING - seal, carrier (See A40030 Figure 308)

1шт.

52

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - front

1шт.

53

A20234

X

RING - snap, front bearing

1шт.

54

NSS

NOT SOLD SEPARAT

CARRIER - clutch (Order A24723 Figure 308)

1шт.

55

A21312

PLUG

- carrier (See A24723 Figure 308)

1шт.

56

A20224

RING, SNAP

RING - snap (See A24723 Figure 308)

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Carrier to housing Hex, 3/8"-16 x 1", G5, Full Thd

24шт.

58

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Brg. carrier Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

59

A11646

GASKET

-, Serial Range: converter-flywheel

1шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Converter to hsg. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

61

92-6

LOCK WASHER,3/8"

4шт.

62

A11541

SPINDLE

STUD - locating, converter (3/8" N.C. x 1-5/8")

2шт.

63

131-508

NUT,3/8"-16

NUT - lock, 3/8" N.C.

2шт.
