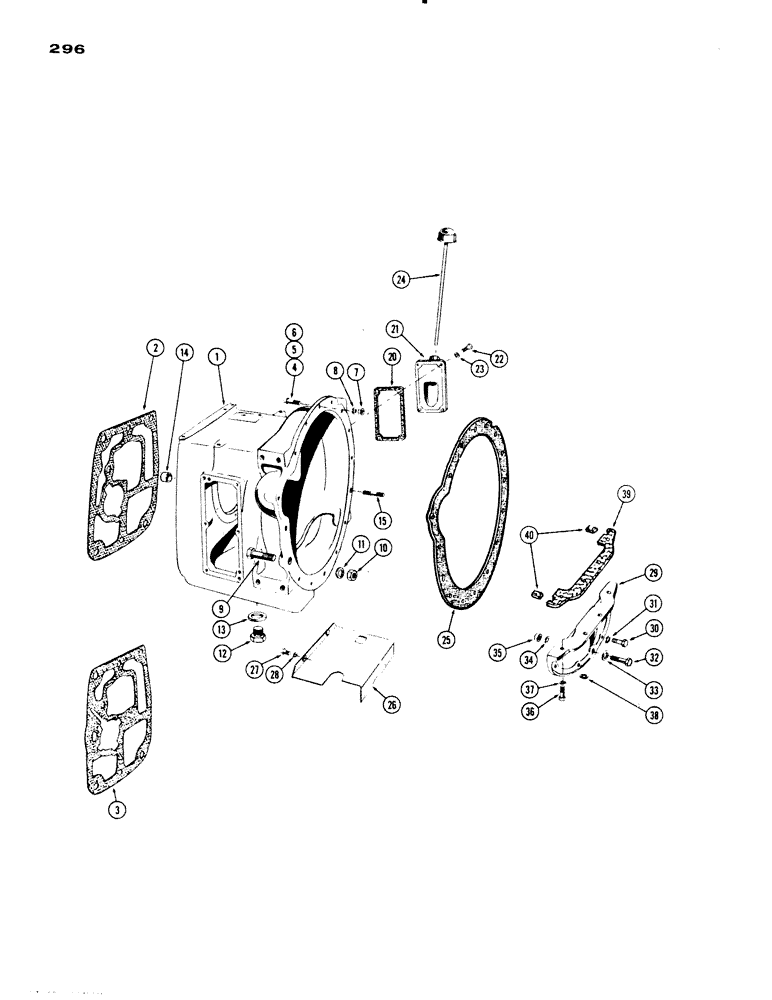

Запчасти Case IH 830-SERIES (296) - TORQUE CONVERTER HOUSING, CASE-O-MATIC DRIVE (06) - POWER TRAIN

1

A11500

X

HOUSING - converter (Order A33881 and A32050 when depleted)

1шт.

1

A33881

HOUSING - converter

1шт.

2

A11539

GASKET

- A11500 housing to trans. case

1шт.

3

A32050

GASKET

- A11500 housing to trans. case

1шт.

4

A32607

STEP BOLT

- dowel, long (on R.H. side)

1шт.

5

A32608

STEP BOLT

BOLT - dowel, short (on L.H. side)

1шт.

6

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex

3шт.

7

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

5шт.

8

92-8

LOCK WASHER,1/2"

5шт.

9

A20108

BOLT - hsg. to block (3/4 x 2-3/4" N.F.)

2шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

A14280

PLUG

- drain, housing

1шт.

13

A27927

OIL PAN GASKET SET

- drain plug

1шт.

14

A11540

CUP

- seal, shift rail

1шт.

15

A11541

SPINDLE

STUD - converter support (3/8 N.C. x 1-5/8")

2шт.

20

A11643

GASKET

- cover, oil filler

1шт.

21

A11642

COVER - oil filler & breather

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A11644

BREATHER - oil (includes oil level gauge)

1шт.

25

A11649

GASKET

- housing to eng. block

1шт.

26

A11544

BUSHING

BAFFLE - oil, lower

1шт.

27

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

A11602

PLATE - cover, conv. housing front

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

14-940

BOLT (SPREADER),Hex, 9/16" - 18 x 2-1/2", Gr 5

BOLT - 9/16 x 2-1/2" N.F. hex (G.P. and H.C.)

1шт.

33

A11648

WASHER - sealing (19/32 I.D. x 1-1/2" O.D.)

1шт.

34

92-9

BEARING WASHER,9/16"

1шт.

35

25-119

NUT,9/16"-18, G5

- 9/16" N.F. hex

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

A22317

WASHER

- copper (25/64 I.D. x 11/16" O.D.)

2шт.

39

A11603

OIL PAN GASKET SET

- converter cover plate

1шт.

40

A11604

OIL PAN GASKET SET

- corner

2шт.
