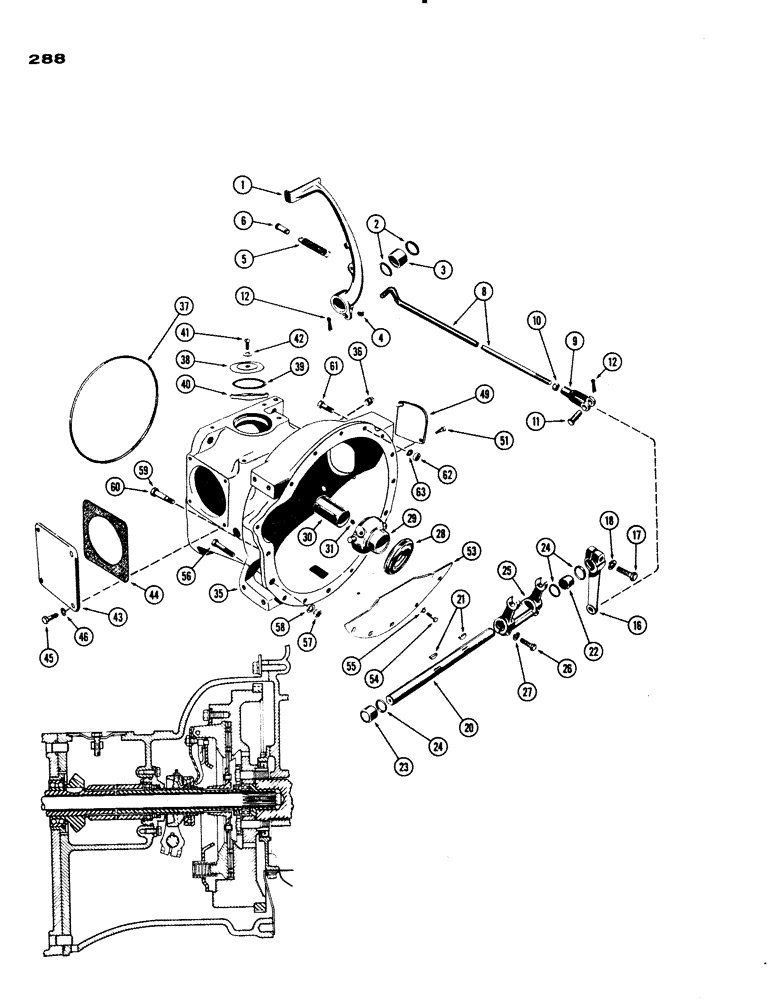

Запчасти Case IH 830-SERIES (288) - CLUTCH CONTROLS, STANDARD CLUTCH DRIVE, CLUTCH HOUSING (06) - POWER TRAIN

1

A26357

PEDAL - clutch

1шт.

2

A28214

OIL SEAL

- oil, clutch pedal

2шт.

3

A28213

NEEDLE BEARING,1.5" ID x 1.875" OD x 1.25"

BEARING - needle, clutch pedal

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

A10436

VALVE SPRING

SPRING - pedal return (2-5/8" long)

1шт.

6

A21729

PIN - return, Serial Range: spring-platform

1шт.

8

A28212

ROD -, Serial Range: pedal-lever

1шт.

9

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod to lever

1шт.

10

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

A32516

LEVER

- clutch shaft (Replaces A26358)

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

20

A28209

SHAFT - clutch operating

1шт.

21

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Lever & yoke #15, 1/4" x 1"

3шт.

22

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, shaft L.H.

1шт.

23

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, shaft R.H.

1шт.

24

A28211

OIL SEAL

- oil, clutch shaft

3шт.

25

A9761

YOKE

- clutch throw-out

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

A7538

BEARING

- throw-out, clutch

1шт.

29

A7149

SLEEVE

- throw-out yoke

1шт.

30

A7150

TUBE

- throw-out sleeve

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

35

A11893

X

HOUSING - clutch (Order A32046, A32047 & A40165 from Page 263)

1шт.

35

A32046

HOUSING

- clutch (w/foot clutch)

1шт.

35

A20011

HOUSING - clutch (w/hand clutch)

1шт.

36

221-12

PLUG,Sq Hd, 1/4"-18

- housing, 1/4" P.T. sq. hd., clutch

1шт.

37

A7074

GASKET

- (13-5/8 I.D. x 14" O.D. for A11893 & A20011), clutch housing

1шт.

37

A32047

GASKET

- (13-3/4 I.D. x 14-1/8" O.D. for A32046), clutch housing

1шт.

38

A7083

COVER

- top, clutch housing

1шт.

39

A7084

GASKET

- top cover, clutch housing

1шт.

40

A7056

NUT

CLAMP - top cover, clutch housing

1шт.

41

A27165

SPECIAL BOLT

SCREW - top cover, clutch housing

1шт.

42

A22317

WASHER

- copper (25/64 x 9/16 x 3/64"), clutch housing

1шт.

43

A7087

SPINDLE

COVER - R.H. side, clutch housing

1шт.

44

A7088

GASKET

- R.H. side cover, clutch housing

1шт.

45

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

R.H. cover, Clutch housing Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

46

92-8

LOCK WASHER,1/2"

clutch housing 1/2"

4шт.

49

A7082

COVER

- L.H. side, clutch housing

1шт.

51

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - cover, 3/8 x 1/2" N.C. hex, clutch housing

2шт.

53

A7081

BEARING

SHIELD - front, clutch, housing

1шт.

54

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Clutch housing Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

55

92-8

LOCK WASHER,1/2"

clutch housing 1/2"

2шт.

56

A20108

BOLT - hsg. to block (3/4 x 2-3/4" N.F. hex), clutch housing

2шт.

57

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex, clutch housing

2шт.

58

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Clutch housing 3/4"

2шт.

59

A32607

STEP BOLT

- dowel, long (on R.H. side), clutch housing

1шт.

60

A32608

STEP BOLT

BOLT - dowel, short (on L.H. side), clutch housing

1шт.

61

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex, clutch housing

3шт.

62

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex, clutch housing

5шт.

63

92-8

LOCK WASHER,1/2"

clutch housing 1/2"

5шт.
