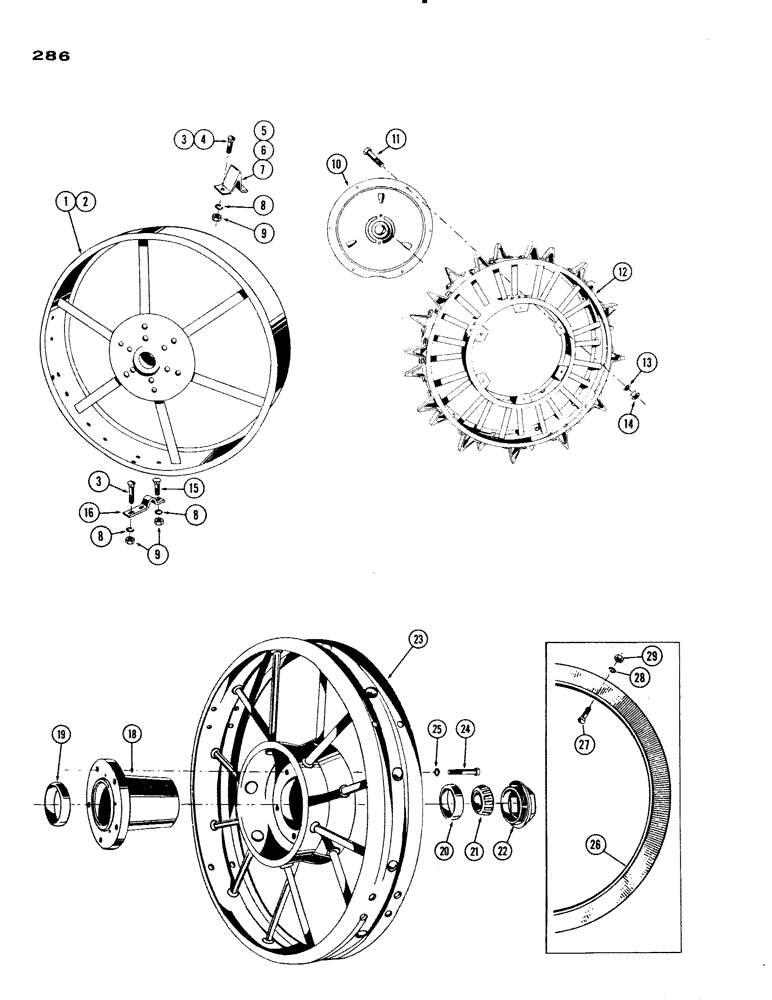

Запчасти Case IH 830-SERIES (286) - STEEL REAR WHEELS, STANDARD FOUR WHEEL TRACTOR, STEEL FRONT WHEELS (06) - POWER TRAIN

1

A9128

RIM - extension (8" ext. x 50" dia.)

2шт.

2

A9131

RIM - extension (12" ext. x 50" dia.)

2шт.

3

17-1232

BOLT - 3/4 x 2" N.C. sq. hd.

1шт.

4

17-1224

BOLT - 3/4 x 1-1/2" N.C. rd. hd. sp. nk.

1шт.

5

4538A

LUG - wheel rim (6" cast iron)

1шт.

6

01505AB

LUG - wheel rim (5" steel)

1шт.

7

A26666

LUG - extension rim (6" steel)

1шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

25-1012

NUT,3/4"-10, G5

1шт.

10

A9125

WHEEL - center disc.

2шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

12шт.

12

A9124

WHEEL - 11-1/8" wide x 50" dia. (minus lugs)

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

14

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

12шт.

15

118-500

PLOW BOLT,3/4"-10 x 2", G2, Full Thd

BOLT - 3/4 x 2" key, hd. plow

24шт.

16

01959AB

STRAP - tie, rim extension

12шт.

18

A9200

HUB ASSY. - front wheel, steel (incl. ref. 19 & 20)

2шт.

19

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP -inner bearing, steel front wheels

1шт.

20

A27631

CUP

- outer bearing, steel front wheels

1шт.

21

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, steel front wheels

2шт.

22

A26011

CAP

CUP - hub, steel front wheels

2шт.

23

A9198

WHEEL - front (5" wide x 28" dia.), steel

2шт.

24

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Steel front wheels Hex, 1/2"-13 x 2", G5

10шт.

25

92-8

LOCK WASHER,1/2"

steel front wheels 1/2"

10шт.

26

A26641

RING - skid (3" high), steel front wheels

4шт.

27

17-820

BOLT - 1/2 x 1-1/4" N.C. sq. hd., steel front wheels

16шт.

28

92-8

LOCK WASHER,1/2"

steel front wheels 1/2"

16шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, steel front wheels

16шт.
