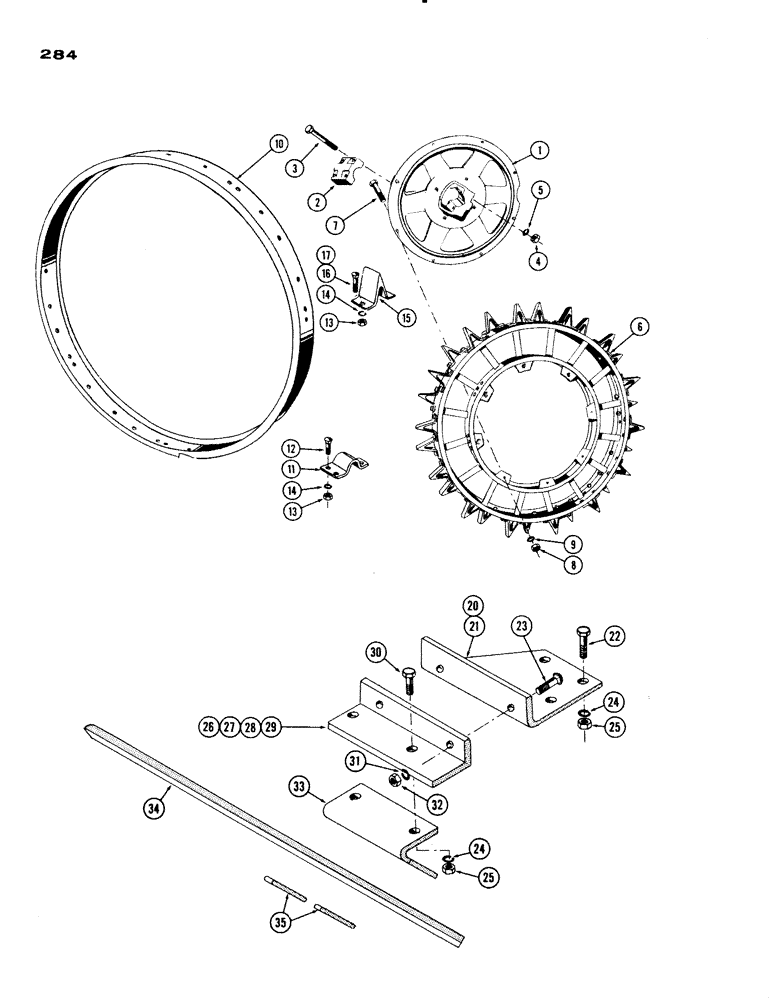

Запчасти Case IH 830-SERIES (284) - STEEL REAR WHEELS, GENERAL PURPOSE, REAR WHEEL SCRAPPERS (06) - POWER TRAIN

1

A7012

WHEEL ASSY. - center disc. (incl. ref. 2 - 5)

2шт.

2

A26351

CAP - hub half

1шт.

3

A20330

KIT

BOLT ASSY. - cap (incl. ref. 4 & 5)

4шт.

4

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

1шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

6

A9317

WHEEL - 8-1/4" wide x 54" dia. (minus lugs)

2шт.

7

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

16шт.

8

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A9318

RIM - extension (6" ext. x 54" dia.)

2шт.

11

A9319

STRAP - tie, rim extension

14шт.

12

17-1232

BOLT - 3/4 x 2" N.C. sq. hd. mach.

14шт.

13

25-1012

NUT,3/4"-10, G5

14шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

14шт.

15

4538A

LUG - wheel rim (6" cast iron)

1шт.

15

01505AB

LUB - sheel rim (5" steel)

1шт.

15

A26666

LUG - extension rim (6" steel)

1шт.

16

17-1224

BOLT - steel lug, 3/4 x 1-1/2" N.C. sq. hd.

1шт.

17

17-1232

BOLT - cast lug, 3/4 x 2" N.C. sq. hd.

1шт.

20

A21248

ARM

SUPPORT - R.H. bracket angle, rear wheel scrapers

1шт.

21

A21249

SUPPORT - L.H. bracket angle, rear wheel scrapers

1шт.

22

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex, rear wheel scrapers

1шт.

23

77-624

SCREW - 3/8 x 1-1/2" N.C. Truss hd., rear wheel scrapers

1шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, , Rear wheel scrapers 3/8"

1шт.

25

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex, rear wheel scrapers

1шт.

26

A21250

ANGLE - scraper brkt., R.H. (w/o rim ext.), rear wheel

1шт.

27

A21251

ANGLE - scraper brkt., L.H. (w/o rim ext.), rear wheel

1шт.

28

A21252

ANGLE - scraper brkt., R.H. (w/rim ext.), rear wheel

1шт.

29

A21253

ANGLE - scraper brkt., L.H. (w/rim ext.), rear wheel

1шт.

30

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex, rear wheel scrapers

1шт.

31

92-6

LOCK WASHER,3/8"

rear wheel scrapers 3/8"

1шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex, rear wheel scrapers

1шт.

33

05243AB

BRACKET - scraper (use 4 with rim extensions), rear wheel

2шт.

34

A27051

SCRAPER - wheel (use 4 with rim extensions), rear

2шт.

35

A26643

STRAP - scraper (use 8 w/rim extensions), rear wheel

4шт.
