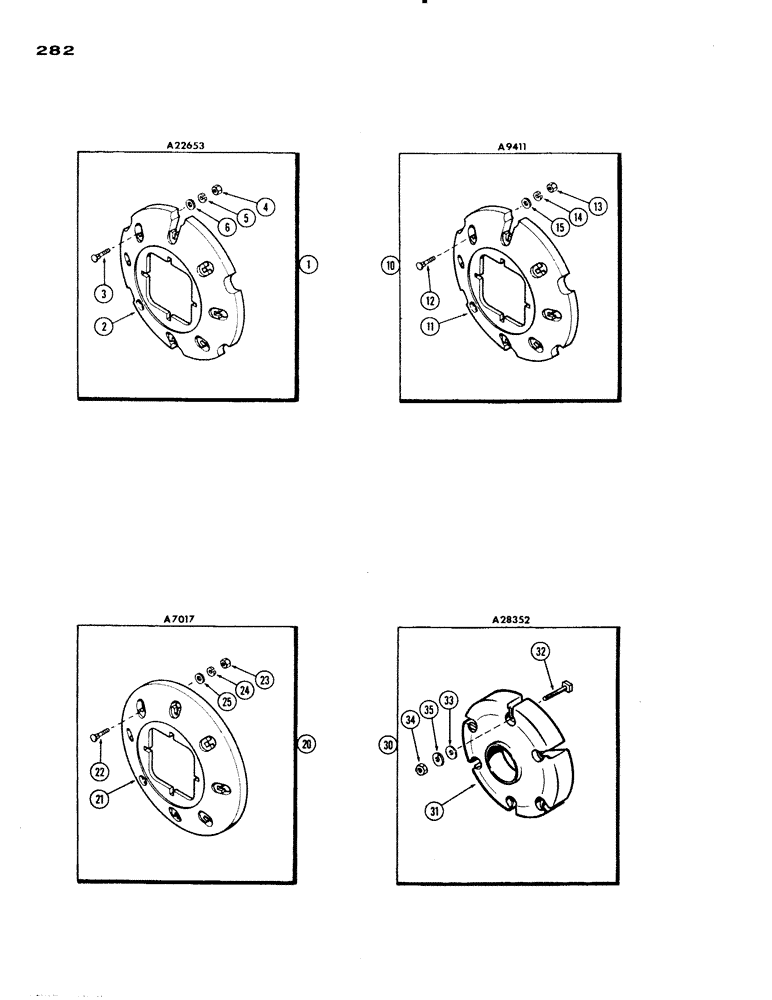

Запчасти Case IH 830-SERIES (282) - REAR WHEEL WEIGHTS, GENERAL PURPOSE, FOUR WHEEL AND WESTERN, 730 GROVE (06) - POWER TRAIN

1

A22653

WEIGHT ATT. (for universal hub sheel) mchy. item (incl. ref. 2 - 6)

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT (135 lb.)

2шт.

3

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - 5/8 x 4-1/2" N.C. rd. hed. sq. nk.

8шт.

4

25-1010

NUT,5/8"-11, G5

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

8шт.

10

A9411

WEIGHT ATT. (for power adj. fixed hub wheel) mchy. item (incl. ref. 11 - 15)

1шт.

11

NSS

NOT SOLD SEPARAT

WEIGHT - (135 lb.)

2шт.

12

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. rd. hd. sp. nk.

8шт.

13

25-1010

NUT,5/8"-11, G5

8шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

8шт.

20

A7017

BRACKET

WEIGHT ATT. (for manual adj. fixed hub wheel) mchy. item (incl. ref. 21 - 25)

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - (136 lb.)

2шт.

22

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. rd. hd. sp. nk.

8шт.

23

25-1010

NUT,5/8"-11, G5

8шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

30

A28352

WEIGHT ATT. - 4 wheel models (mchy. item), and Western, 730 Grove (incl. ref. 31 - 35)

1шт.

31

NSS

NOT SOLD SEPARAT

WEIGHT - (150 lb.), 4 wheel and Western, 730 Grove

2шт.

32

17-1272

BOLT (MACHINE)

BOLT - 3/4 x 4-1/2 N.C. sq. hd., 4 wheel and Western, 730 Grove

6шт.

33

A26543

WASHER - (25/32 x 1-9/16" x 10 ga.), 4 wheel and Western, 730 Grove

6шт.

34

25-1012

NUT,3/4"-10, G5

4 wheel and Western, 730 Grove 3/4"-10, G5

6шт.

35

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 4 wheel and Western, 730 Grove 3/4"

6шт.
