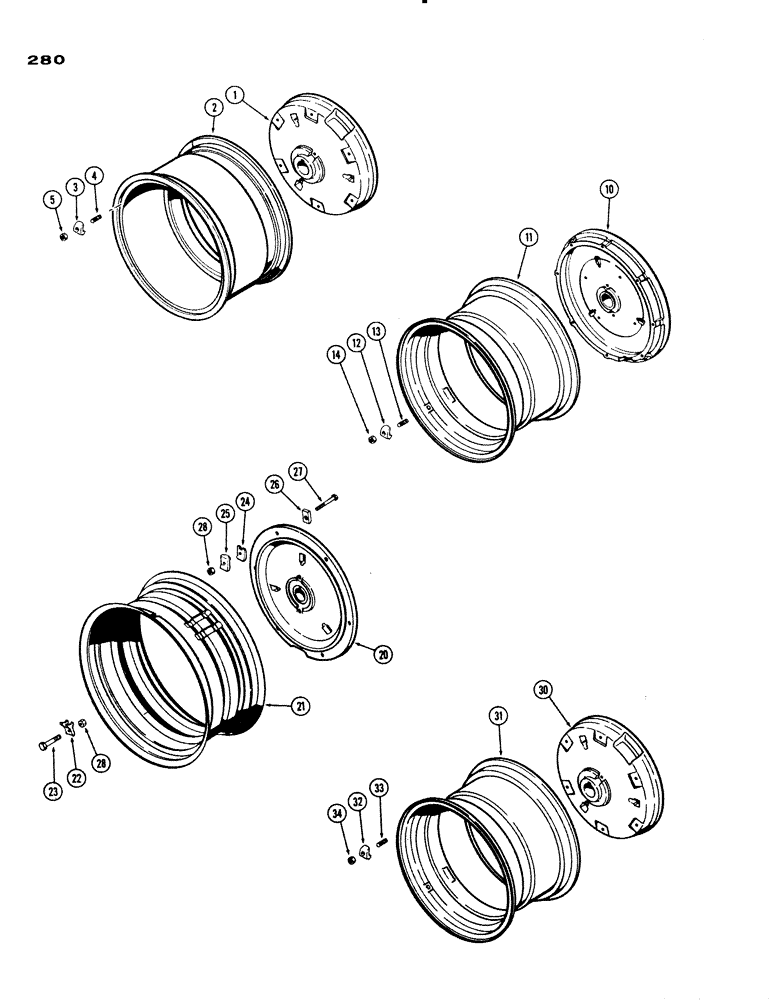

Запчасти Case IH 830-SERIES (280) - REAR WHEELS, FOUR WHEEL AND WESTERN (06) - POWER TRAIN

1

A7343

WHEEL - (for 26" tire)

2шт.

2

A8736

RIM - (for 23.1 x 26" tire)

2шт.

3

A26908

CLAMP

-, Serial Range: rim-wheel

12шт.

4

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

5

A27183

NUT

- clamp (5/8" N.C. hex, spec.)

12шт.

10

A7346

WHEEL - (for 30" tire)

2шт.

11

A7340

RIM - (for 18.4 x 30 tire)

2шт.

12

A26908

CLAMP

-, Serial Range: rim-sheel

12шт.

13

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

14

A27183

NUT

- clamp stud (5/8" N.C. hex, spec.)

12шт.

20

A9125

WHELE - (for 30" tire)

2шт.

21

A9149

RIM - (for 16.9 or 18.4 x 30 tire)

2шт.

22

A26347

CLAMP

- wheel drive

4шт.

23

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Drive clamp Hex, 5/8"-11 x 2 1/2", G5

4шт.

24

A28219

CLAMP

- rim (female)

8шт.

25

A28220

CLAMP

- rim (male)

8шт.

26

A28733

LUG

- locking, clamp bolt

8шт.

27

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Clamp Hex, 5/8"-11 x 3", G5

8шт.

28

A27183

NUT

- clamp bolt (5/8" N.C. hex, spec.)

12шт.

30

A7343

WHEEL - (for 26" tire), 730 Grove

2шт.

31

A27310

RIM - (for 16.9 or 18.4 x 26 tire), 730 Grove

2шт.

32

A26908

CLAMP

- rim to wheel, 730 Grove

12шт.

33

A27179

STUD

- clamp (5/8 N.C. x 2-3/8"), 730 Grove

12шт.

34

A27183

NUT

- clamp stud (5/8" N.C. hex. spec.), 730 Grove

12шт.
