Запчасти Case IH 830-SERIES (278) - REAR WHEELS, 830 GEN. PURPOSE, STANDARD MANUAL ADJUSTABLE (06) - POWER TRAIN

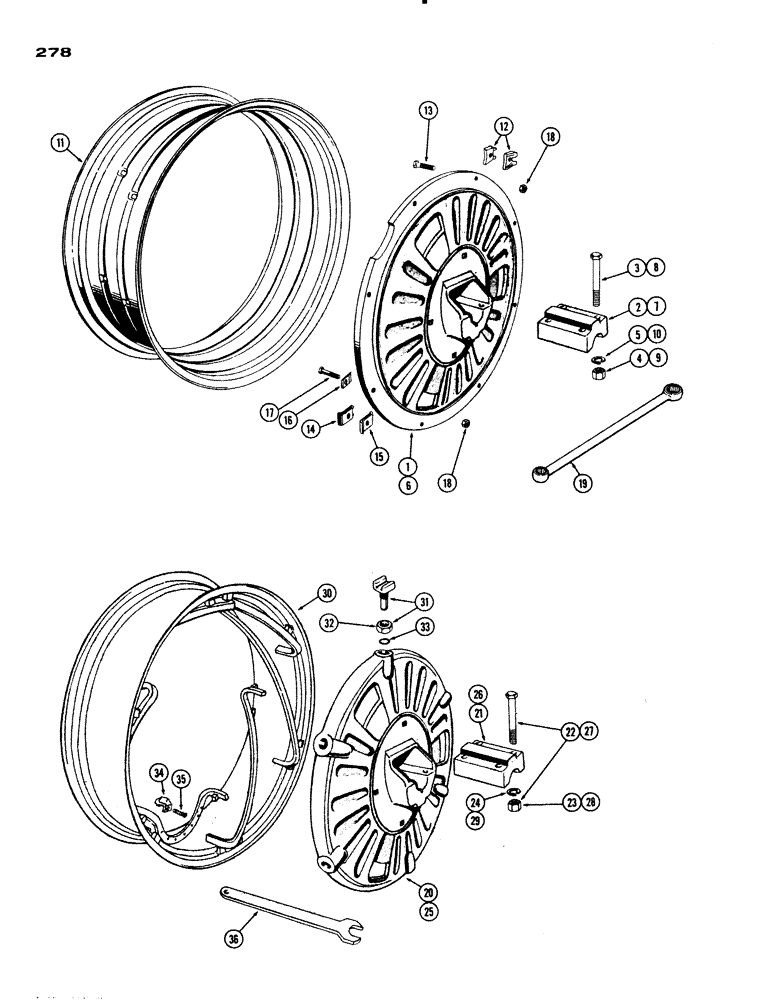

Схема запчастей Case IH 830-SERIES - (278) - REAR WHEELS, 830 GEN. PURPOSE, STANDARD MANUAL ADJUSTABLE (06) - POWER TRAIN
32
30
36
9
33
4
2
3
19
13
25
10
23
7
12
20
14
21
15
27
16
26
24
31
34
1
18
18
22
17
11
8
28
5
6
29
35

№

Артикул

Название

Примечание

Количество

1

A11941

WHEEL ASSY. - manual adj. (52 to 88" tread) (incl. ref. 2 - 5)

2шт.

2

A26351

CAP - hub clamp

1шт.

3

A20330

KIT

BOLT ASSY. - cap (7/8 x 6-3/4" N.F. hex) (incl. ref. 4 & 5)

4шт.

4

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

1шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

6

A20245

WHEEL ASSY. - manual adj. (52 to 108" tread) (incl. ref. 7 - 10)

2шт.

7

A7127

CAP

- hub clamp

1шт.

8

A20330

KIT

BOLT ASSY. - cap (7/8 x 6-3/4" N.F. hex) (incl. ref. 9 & 10)

4шт.

9

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

1шт.

10

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

11

A28272

X

RIM - double bevel (for 13.6 x 38 tire)

2шт.

11

A11081

RIM

- double bevel (for 15.5 x 38 tire)

2шт.

12

A26347

CLAMP

- rim drive

4шт.

13

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Drive clamp Hex, 5/8"-11 x 2 1/2", G5

4шт.

14

A28220

CLAMP

- rim (female)

12шт.

15

A28219

CLAMP

- rim (male)

12шт.

16

A28733

LUG

- locking, clamp bolt

12шт.

17

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Clamp Hex, 5/8"-11 x 3", G5

12шт.

18

A27183

NUT

- clamp bolt (5/8" N.C. spec.)

16шт.

19

A8696

WRENCH - socket, hub & rim bolt

1шт.

20

A11576

WHEEL ASSY. - power adj. (52 to 88" tread), standard (incl. ref. 21 - 24)

2шт.

21

A26351

CAP - hub clamp, standard power adjustable

1шт.

22

A20330

KIT

BOLT ASSY. - cap (7/8" x 6-3/4" N.F. hex), standard power adjustable (incl. ref. 23 & 24)

4шт.

23

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, standard power adjustable

1шт.

24

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Standard power adjustable 7/8"

1шт.

25

A20251

WHEEL ASSY. - power adj. (52 to 108" tread), standard (incl. ref. 26 - 29)

2шт.

26

A7127

CAP

- hub clamp, standard power adjustable

1шт.

27

20330

BOLT ASSY. - cap (7/8 x 6-3/4" N.F. hex), standard power adjustable (incl. ref. 28 & 29)

4шт.

28

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, standard power adjustable

1шт.

29

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Standard power adjustable 7/8"

1шт.

30

A9405

RIM - power adj. (for 13.6 x 38 tire), standard

2шт.

30

A11076

DISC, WHEEL

RIM - power adj. (for 15.5 x 38" tire), standard

2шт.

31

A11051

SCREW,Jack

JACKSCREW ASSY. - rim to wheel, standard power adjustable (incl. ref. 32)

12шт.

32

A9408

NUT

- jackscrew (1" - 16 thrd. Spec.), standard power adjustable

12шт.

33

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - jackscrew, standard power adjustable

12шт.

34

A9406

STOP

LUG - stop, rim, standard power adjustable

4шт.

35

A9440

STOP

SCREW - stop lug, standard power adjustable

4шт.

36

A9491

WRENCH - jackscrew, standard power adjustable

1шт.

Выбрано товаров: 38
