Запчасти Case IH 830-SERIES (016) - AIR CLEANER, MANIFOLD, MUFFLER, 267 AND 301, DIESEL ENGINE, FRONT MOUNT, 1ST USED TRAC. S/N 8201146 (02) - ENGINE

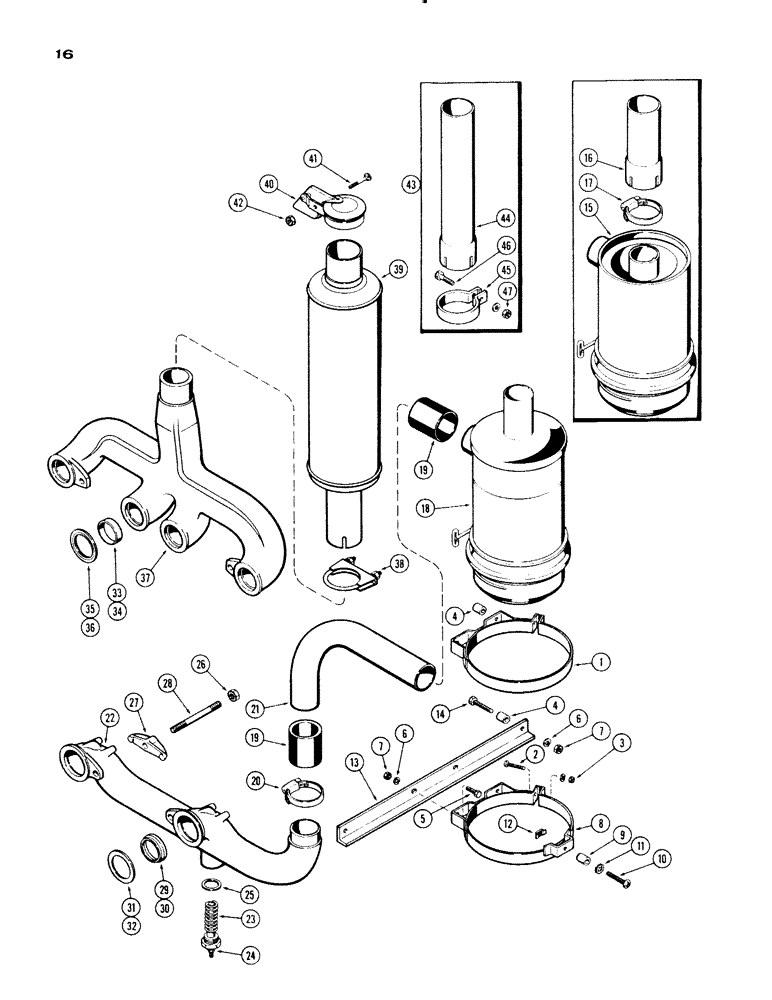

Схема запчастей Case IH 830-SERIES - (016) - AIR CLEANER, MANIFOLD, MUFFLER, 267 AND 301, DIESEL ENGINE, FRONT MOUNT, 1ST USED TRAC. S/N 8201146 (02) - ENGINE
5
44
34
22
1
14
6
36
3
47
21
38
12
8
46
33
32
9
29
4
24
10
27
25
17
18
11
7
28
4
41
7
35
20
40
6
19
16
26
39
15
45
23
30
43
2
31
19
37
42
13

Артикул

Название

Примечание

Количество

1

A23807

BAND ASSY. - upper, air cleaner

1шт.

2

75-424

SCREW

- mach., 1/4 x 1-1/2" N.C. rd. hd.

2шт.

3

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. sq.

2шт.

4

O1176L

X

SPACER - band

4шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

4шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

6шт.

8

A23806

BAND ASSY. - lower, air cleaner

1шт.

9

F62196

SPACER,1/4" Pipe x 7/16"

- front, mounting band

1шт.

10

175-443

SCREW - 1/4 x 1-1/4" N.C. truss hd. Philips

1шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

1шт.

12

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cage, 1/4" N.C.

1шт.

13

A23805

SUPPORT - lower band, air cleaner

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

A24464

AIR CLEANER - (w/short stack) Order A24568

1шт.

For air cleaner repairs, see Figure 022.

1шт.

16

A24392

EXTENSION

- (for air cleaner w/short stack only)

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension

1шт.

18

A24568

AIR CLEANER - (w/4" stack)

1шт.

For air cleaner repairs, see Figure 022.

1шт.

19

A20197

HOSE ASSY.

HOSE - intake, air cleaner

2шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

21

A24299

TUBE - air, Serial Range: cleaner-manifold

1шт.

22

A24319

MANIFOLD - intake, and muffler

1шт.

23

A37775

HEATER

- intake manifold, and muffler

1шт.

24

129-503

NUT,1/4"-20, Brass

Manifold and muffler 1/4"-20, Brass

1шт.

25

A20916

MANIFOLD GASKET

GASKET - manifold heater, and muffler

1шт.

26

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, manifold and muffler

4шт.

27

A24368

CLAMP

- manifold, and muffler

4шт.

28

A27911

STUD

- manifold clamp, and muffler

4шт.

29

A21383

CAP

FERRULE - intake manifold (730 Series), and muffler

2шт.

30

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold (830 Series), and muffler

2шт.

31

A11888

MANIFOLD GASKET

- intake manifold (730 Series), and muffler

2шт.

32

A21054

MANIFOLD GASKET

- intake manifold (830 Series), and muffler

2шт.

33

A21648

CAP

FERRULE - exhaust manifold (730 Series), and muffler

4шт.

34

A21056

CAP

FERRULE - exhaust manifold (830 Series), and muffler

4шт.

35

A11889

GASKET

- exhaust manifold (730 Series), and muffler

4шт.

36

A11888

MANIFOLD GASKET

- exhaust manifold, and muffler

4шт.

37

A21006

MANIFOLD - exhaust, and muffler

1шт.

38

A13240

CLAMP,2-5/8" ID

- muffler, and manifold

1шт.

39

A24314

MUFFLER

- exhaust, and manifold

1шт.

40

A33742

CAP

- weather, manifold and muffler (incl. ref. 41 & 42)

1шт.

41

11-532

X

BOLT - 5/16 x 2" rd. hd. sq. nk., manifold and muffler

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex, manifold and muffler

1шт.

43

A33389

NO LONGER SERVICED

EXTENSION KIT - muffler, and manifold (incl. ref. 44 - 47)

1шт.

44

NSS

NOT SOLD SEPARAT

TUBE - extension (Order A33389), manifold and muffler

1шт.

45

A33391

CLAMP

- tube, manifold and muffler

1шт.

46

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Manifold and muffler Hex, 5/16"-18 x 1 1/4", G5

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

Manifold and muffler 5/16"-18, G5

1шт.

Выбрано товаров: 49
