Запчасти Case IH 830-SERIES (272) - REAR WHEELS W/34" RIMS, UNIVERSAL MANUAL ADJUSTABLE (06) - POWER TRAIN

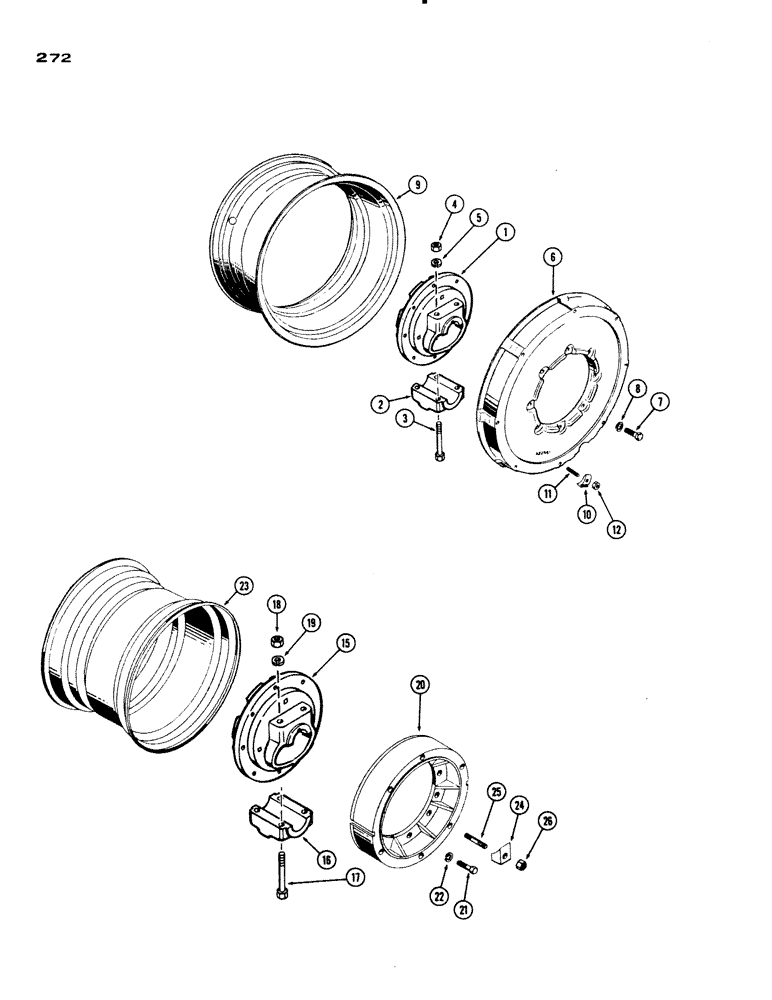

Схема запчастей Case IH 830-SERIES - (272) - REAR WHEELS W/34" RIMS, UNIVERSAL MANUAL ADJUSTABLE (06) - POWER TRAIN
25
18
15
4
3
1
16
23
9
6
17
8
11
19
2
24
20
26
7
22
12
21
5
10

Артикул

Название

Примечание

Количество

1

A22668

HUB ASSY. - universal wheel (incl. ref. 2 - 5)

2шт.

2

A7127

CAP

- hub (half-hub)

1шт.

3

A22389

WHEEL BOLT

BOLT - cap (7/8 x 7-1/2" N.F. hex)

4шт.

4

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

A22661

WHEEL - rear (for 34" tire)

2шт.

7

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Wheel to hub Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A28063

RIM - drop center (for 14" x 34" tire)

2шт.

9

A10693

RIM

- drop center (for 15" x 34" tire)

2шт.

10

A26908

CLAMP

-, Serial Range: rim-wheel

16шт.

11

A27179

STUD

- rim clamp (5/8 x 2-3/8")

16шт.

12

A27183

NUT

- clamp stud (5/8" N.C. hex, Spec.)

16шт.

15

A22646

HUB ASSY. - universal wheel, rear, w/26" rims (incl. ref. 16 - 19)

2шт.

16

A26351

CAP - hub (half-hub), rear wheels w/26" rims

1шт.

17

A22389

WHEEL BOLT

BOLT - cap (7/8 x 7-1/2" N.F. hex), rear wheels w/26" rims

4шт.

18

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, rear wheels w/26" rims

4шт.

19

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheels w/26" rims 7/8"

4шт.

20

F1254

WHEEL - (for 26" tire), rear, w/26" rims

2шт.

21

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Wheel to hub, Rear, w/26" rims Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheels w/26" rims 5/8"

16шт.

23

A23039

RIM - drop center (for 23.1" x 26" tire), rear wheels w/26" rims

2шт.

24

F62001

CLAMP

- rim to wheel, rear, w/26"

12шт.

25

A27179

STUD

- rim clamp (5/8 x 2-3/8"), rear wheels w/26"

12шт.

26

A27183

NUT

- clamp stud (5/8" N.C. hex, Spec.), rear wheels w/26" rims

12шт.

Выбрано товаров: 25
