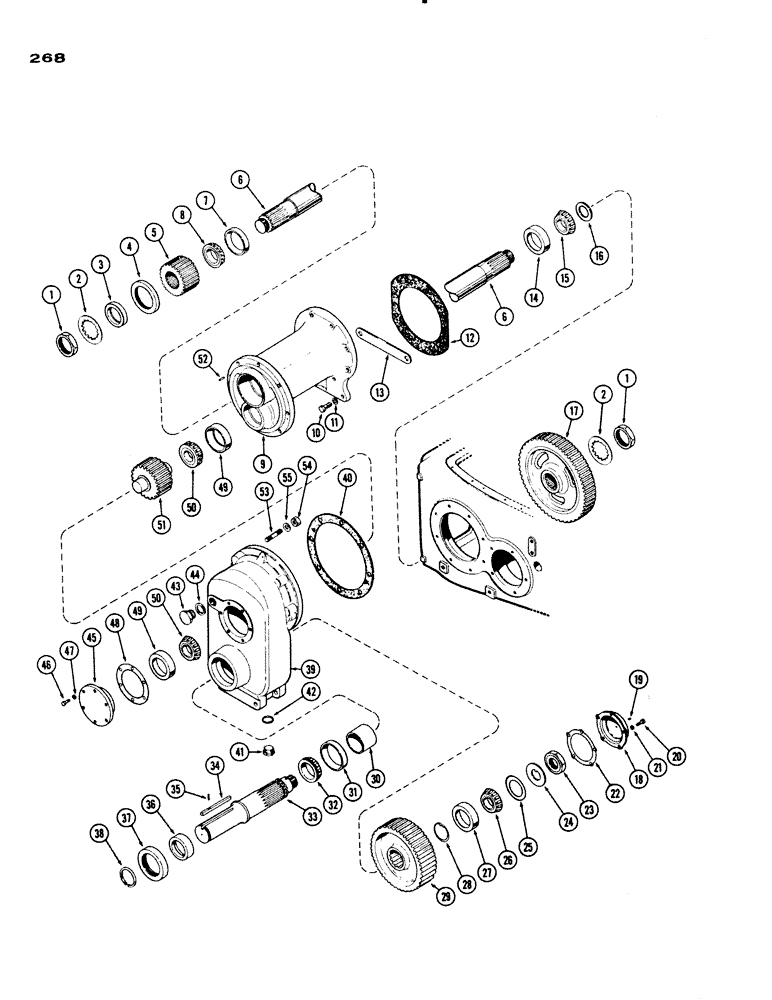

Запчасти Case IH 830-SERIES (268) - REAR AXLE AND FINAL DRIVE, HIGH CLEARANCE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A23386
NUT
- upper shaft
4шт.
2
A28137
LOCK WASHER
WASHER - lock, upper shaft nut
4шт.
3
A7867
COLLAR - upper axle shaft
2шт.
4
A7870
OIL SEAL
SEAL - oil, upper shaft (4 x 5-1/2 x 9/16")
2шт.
5
A7873
GEAR - driven, upper axle (20T)
2шт.
6
A7866
SHAFT - axle, upper
2шт.
7
A7868
BEARING
CUP - bearing, outer
2шт.
8
A7869
CONE - bearing, outer
2шт.
9
A7864
HOUSING - axle, upper R.H. (Use A33637)
1шт.
9
A7865
HOUSING - axle, upper L.H. (Use A33637)
1шт.
9
A33637
HOUSING - axle, upper R.H. and L.H.
2шт.
10
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
16шт.
12
A28141
GASKET
- housing to trans. case (round)
2шт.
13
A7896
GASKET - housing lower flange (strip)
2шт.
14
A28134
BEARING CUP
CUP - bearing, inner
2шт.
15
A28135
ROLLER BEARING,3.0625" ID x 1.172"
CONE - bearing, inner
2шт.
16
A28143
WASHER - thrust (3-3/32 x 4-1/8 x 1/8")
2шт.
17
A7863
GEAR - drive, rear axle (60T)
2шт.
18
A7894
CAP - lower, housing
2шт.
19
221-1849
PLUG
- pipe, 1/8" P.T. socket hd.
2шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
10шт.
21
92-6
LOCK WASHER,3/8"
10шт.
22
A7895
GASKET
- lower housing cap
2шт.
23
A7885
NUT - lock, lower shaft
2шт.
24
A7887
WASHER - tab, lower shaft
2шт.
25
A7886
WASHER - lower shaft
2шт.
26
A7891
ROLLER BEARING
CONE - bearing, inner
2шт.
27
A7890
BEARING CUP,112.738 mm OD x 23.81 mm
CUP - bearing, inner
2шт.
28
A7888
RING, SNAP
RING - snap, lower driven gear
2шт.
29
A7881
GEAR - driven, lower axle (44T)
2шт.
30
A7882
SPACER - lower gear (3-3/8 x 3-3/4 x 2-13/16")
2шт.
31
A7892
BEARING, CUP
CUP - bearing, outer
2шт.
32
A7893
ROLLER BEARING,3.375" ID x 1.172"
CONE - bearing, outer
2шт.
33
A22925
KEY
SHAFT ASSY. - axle, lower (incl. ref. 34 & 35)
2шт.
34
A33984
NO LONGER SERVICED
KEY ASSY. - rear axle, (6-1/2" long) (incl. ref. 35)
2шт.
35
A26375
PIN - key (1/4 x 1/2")
1шт.
36
A7884
COLLAR - outer, lower shaft
2шт.
37
A7889
SEAL
- oil, lower shaft outer (4 x 5-1/2 x 15/16")
2шт.
38
A28145
RING, SNAP
RING - snap, lower shaft outer
2шт.
39
A7871
HOUSING - lower, rear axle
2шт.
40
A7872
GASKET
- outer housing
2шт.
41
A14280
PLUG
- drain, lower housing
2шт.
42
A27927
OIL PAN GASKET SET
- plug (3/4" x 14 ga. copper)
2шт.
43
A7356
PLUG
- oil filler
2шт.
44
A7357
GASKET - plug (1-1/2 x 1-3/4 x 1/16" copper)
2шт.
45
A7875
CARRIER - brg., lower drive gear
2шт.
46
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
12шт.
47
92-8
LOCK WASHER,1/2"
12шт.
48
A7878
SHIM - carrier (.003")
1шт.
48
A7879
SHIM - carrier (.05")
1шт.
48
A7880
SHIM - carrier (.10")
1шт.
49
A7876
GASKET
CUP - bearing, lower drive gear
4шт.
50
A7877
CONE - bearing, lower drive gear
4шт.
51
A7874
GEAR - drive, lower axle (23T)
2шт.
52
A7077
DOWEL
PIN - dowel, axle housing (1/2 x 1-3/8")
4шт.
53
A50237
STUD
- 5/8 x 2-1/2"
16шт.
54
25-1010
NUT,5/8"-11, G5
16шт.
Выбрано товаров: 59
