Запчасти Case IH 830-SERIES (264) - DIFFERENTIAL (06) - POWER TRAIN

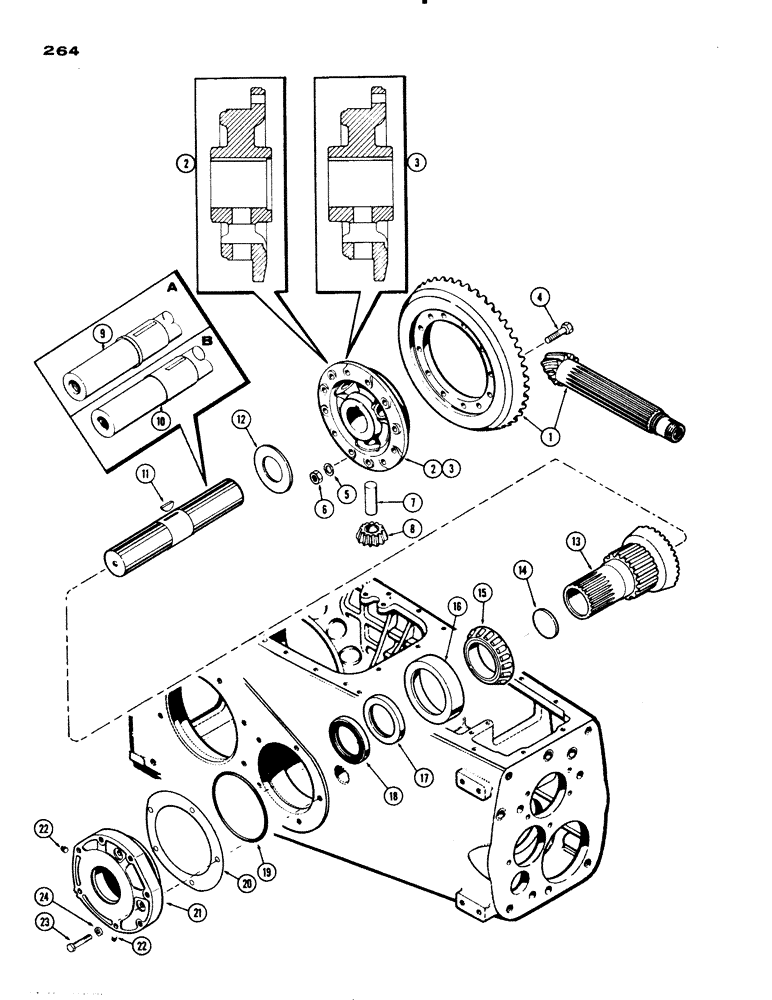

Схема запчастей Case IH 830-SERIES - (264) - DIFFERENTIAL (06) - POWER TRAIN
15
23
6
8
3
18
2
10
17
19
4
14
7
20
3
22
21
2
16
22
12
11
9
13
24
5
1

Артикул

Название

Примечание

Количество

1

A28719

COUNTERSHAFT & RING GEAR - matched set (9T & 48T for Gen. Purpose)

1шт.

1

A28720

COUNTERSHAFT & RING GEAR - matched set (10T & 48T for all except Gen. Purp.)

1шт.

2

A34165

WHEEL

- center (w/recess in hub. See inset)

1шт.

3

A26344

X

WHEEL - center (w/str. hub.) (See inset) Order A34165, A34200 and A28182

1шт.

USE 14-836.

1шт.

4

14-386

BOLT - ring gear, 1/2 x 2-1/4" N.F. hex

12шт.

5

92-8

LOCK WASHER,1/2"

12шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

12шт.

7

A28180

PIN

SHAFT - pinion gear

3шт.

8

A32767

PINION

GEAR - pinion (Replaces A28179)

3шт.

9

A34200

SHAFT - cross (w/collar. See inset A. Must be used with A34165 center wheel ref. 2) Order A34800 when depleted

1шт.

9

A34800

SHAFT

- cross (w/collar) See inset "A"

1шт.

10

A9859

SHAFT - cross (See inset B. Must be used with A26344 center wheel ref. 3)

1шт.

11

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - center wheel (3/8 x 2-3/4" Woodruff)

1шт.

12

A28182

WASHER

- thrust, side gear (2-1/2 x 3-7/8 x 7/8")

2шт.

13

A24557

GEAR

ASSY. - side (15T for G.P., 4-Wheel and Grove) (incl. ref. 14)

2шт.

13

A9292

GEAR ASSY. - side (25T for Hi-Clearance) (incl. ref. 14)

2шт.

14

A24555

PLUG

- side gear

1шт.

15

A28185

ROLLER BEARING,3.375" ID x 1.43"

CONE - bearing, side gear

2шт.

16

A28184

BEARING CUP

CUP - bearing, side gear

2шт.

17

A28186

OIL SEAL

SEAL - oil, inner

2шт.

18

A28187

OIL SEAL

SEAL - oil, outer

2шт.

19

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - brg. carrier (6-1/4 x 6-1/2 x 1/8")

2шт.

20

A28188

SHIM,.003" Thk

Brg. carrier .003" Thk

1шт.

20

A28189

SHIM,.005" Thk

Brg. carrier .005" Thk

1шт.

20

A28190

SHIM,.010" Thk

Brg. carrier .010" Thk

1шт.

21

A26345

CARRIER - bearing, side gear (See A8410)

2шт.

21

A8410

CARRIER - bearing, side gear (Grove Only)

2шт.

22

221-1849

PLUG

- pipe, 1/8" P.T. socket hd.

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

Выбрано товаров: 31
