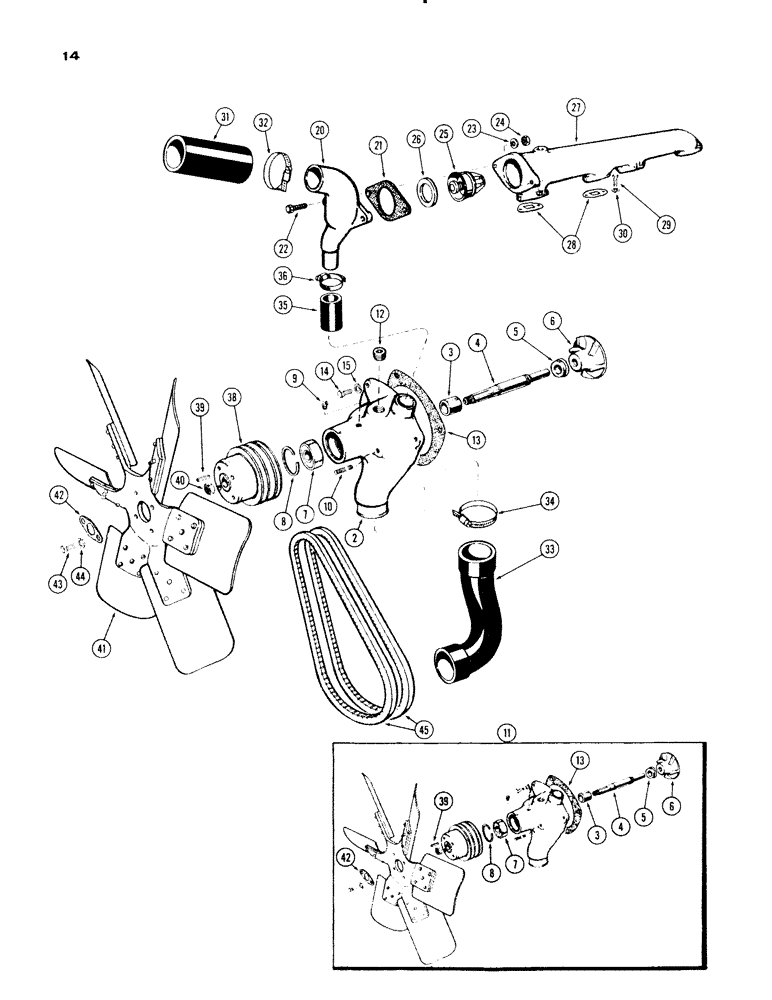

Запчасти Case IH 830-SERIES (014) - WATER PUMP (02) - ENGINE

A21459

PUMP

ASSY. - water (not illustrated) (incl. ref. 2 - 10)

1шт.

2

A11496

BODY

ASSY. - water pump (incl. ref. 3)

1шт.

3

A27900

BUSHING

- pump shaft

1шт.

4

A23636

SHAFT

- drive (had 1-1/4" lg. key way)

1шт.

4

A21458

X

SHAFT - drive (has 2" lg. key way) Order A23636 shaft & A21075 key)

1шт.

5

A24995

SEAL

- pump shaft (Replaces A27901)

1шт.

6

A26334

IMPELLER

- water pump

1шт.

7

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - drive shaft

1шт.

8

A27150

RING

- snap, Serial Range: bearing-shaft

1шт.

9

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 67-1/2 deg.

1шт.

10

A7391

STUD

- generator strap (3/8 x 1-1/8")

1шт.

11

A24181

KIT, FIRST AID

REPAIR KIT - water pump (includes ref. 3, 4, 5, 6, 7, 8, 13, 39 and 42)

1шт.

12

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

13

M1127885

STEM

- water pump

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

20

A20866

HOUSING - thermostat

1шт.

21

A28113

GASKET

-, Serial Range: housing-manifold

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

25

A28114

THERMOSTAT

- 180 deg. to 195 deg. (incl. ref. 26)

1шт.

26

A30954

GASKET

SEAL - thermostat

1шт.

27

A21031

MANIFOLD

- water

1шт.

28

A27905

GASKET

- manifold

4шт.

29

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

30

92-5

LOCK WASHER,5/16"

8шт.

31

A24293

LARGE HOSE,2.50" ID x 6.19", SAE 20R4 CLASS R

RADIATOR HOSE, , Inlet 2.50" ID x 6.19", SAE 20R4 CLASS R

1шт.

32

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16 to 3-1/4")

2шт.

33

A20384

RADIATOR HOSE,1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

- Radiator Outlet 1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

1шт.

34

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

35

A28115

HOSE

- by-pass

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

38

A21454

PULLEY - fan & water pump drive

1шт.

39

A21075

KEY

- pulley (3/16" sq. x 5/8")

1шт.

39

A27001

KEY

- pulley (3/16" sq. x 1-3/8" early production)

1шт.

40

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex

1шт.

41

A23106

HALF BLADE

FAN - radiator

1шт.

42

A26707

LOCK

STRAP - lock, pulley nut

1шт.

43

113-614

BOLT - fan, 3/8 x 7/8" N.C. hex

4шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

A21457

SET OF BELTS,50.50" L

SET OF 2 BELTS , Fan & pump drive 50.50" L

1шт.
