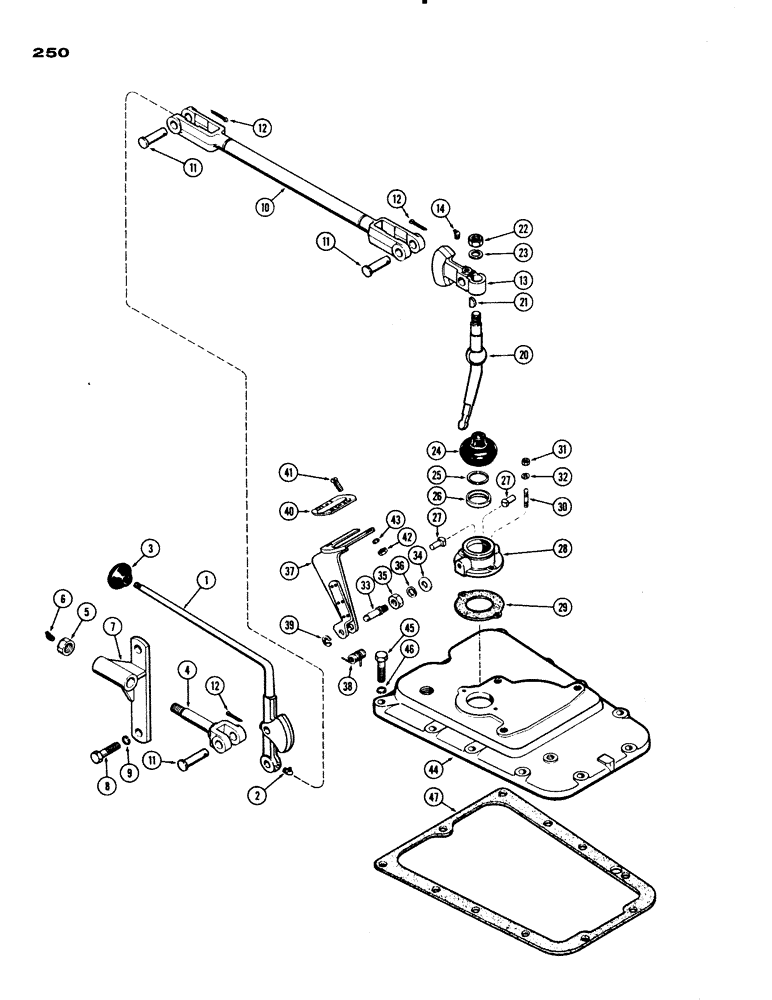

Запчасти Case IH 830-SERIES (250) - GEAR SHIFT, MODEL 730 GROVE (06) - POWER TRAIN

1

A8383

LEVER - hand, gear shift

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

3

A26727

BALL

KNOB - hand lever

1шт.

4

A8376

YOKE - pivot, shift lever

1шт.

5

131-13

LOCK NUT,5/8"-18, GB

NUT - lock, 5/8" N.F.

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

1шт.

7

A10231

SUPPORT - gear shift pivot yoke

1шт.

8

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

A8379

CONNECTION - shift lever

1шт.

11

A8380

PIN - yoke (5/8 x 2-7/16)

3шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

13

A8375

PLATE - yoke, front lever

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

1шт.

20

A8374

LEVER - gear shift

1шт.

21

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Front lever #91, 1/4" x 3/4", HT

1шт.

22

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

A26956

DUST CAP

CAP - dust, rubber

1шт.

25

A26836

RING, SNAP

RING - snap, retainer seat

1шт.

26

A7923

SEAT

- upper, shift lever

1шт.

27

A26835

PIN

- lever pivot

2шт.

28

A7596

SOCKET

- shift lever

1шт.

29

A7598

GASKET

-, Serial Range: socket-cover

1шт.

30

A7597

STUD - socket (3/8" N.C. x 1-5/16")

2шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

A7957

STUD - socket & indicator pivot

1шт.

34

A22317

WASHER

- copper 925/64 x 11/16 x 3/64")

1шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

A8314

SUPPORT - shift indicator

1шт.

38

A7962

SPRING - torsion, indicator support

1шт.

39

A27795

RING

"E" RING - retainer, indicator support

1шт.

40

A8315

PLATE

- shift indicator

1шт.

41

175-401

SCREW,Sl Truss Hd, #10 - 24 x 3/8"

- mach., #10-24 x 3/8" truss hd.

2шт.

42

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

43

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 int.-ext. Shakeproof

2шт.

44

A20963

COVER - shifter forks & shafts

1шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

11шт.

46

92-8

LOCK WASHER,1/2"

11шт.

47

A7594

GASKET

- cover

1шт.
